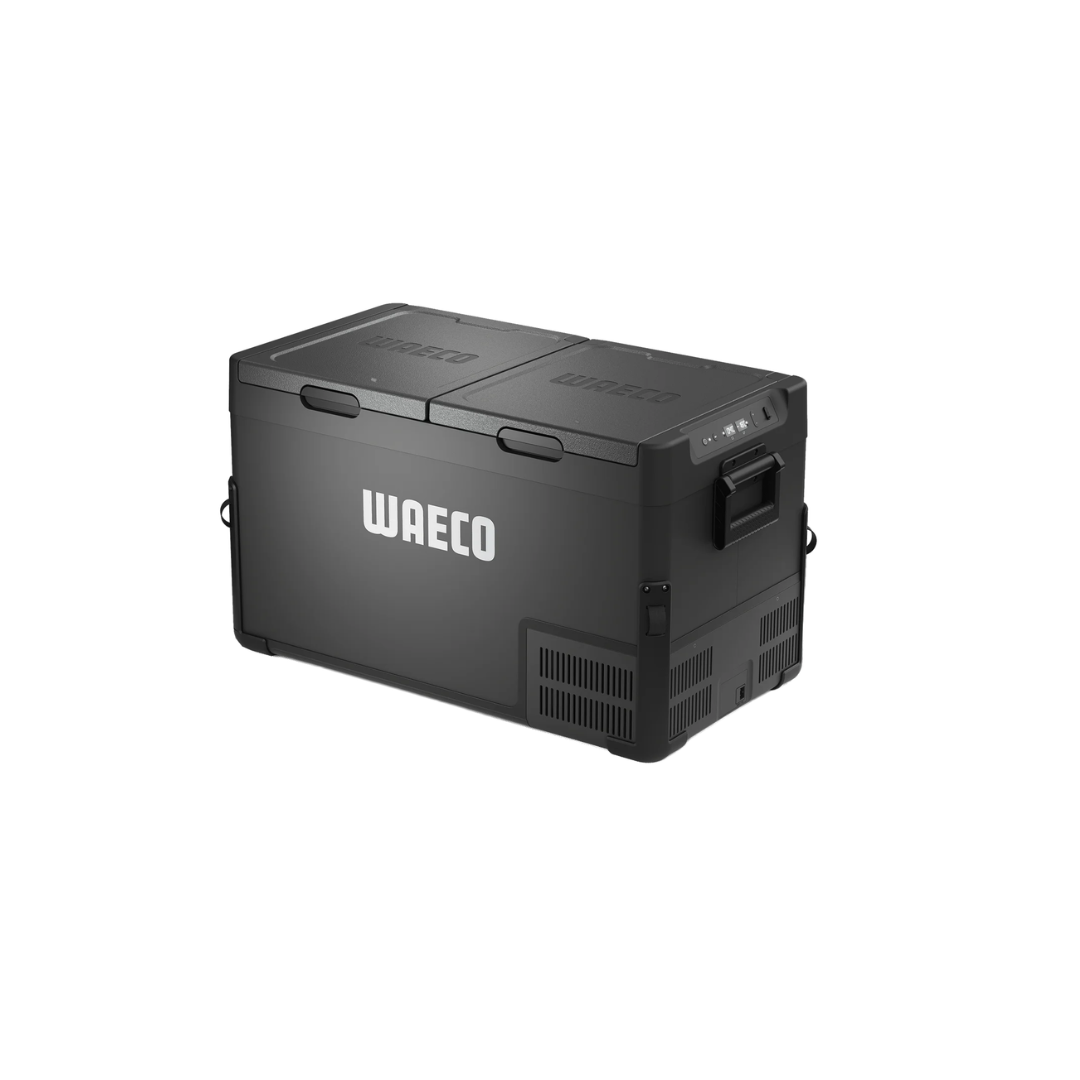

WAECO WCC 80DZ 78L Dual-Zone Compressor Cool Box – 12V/24V

The WAECO WCC 80DZ 78L Dual-Zone Compressor Cool Box is a large-capacity portable fridge freezer designed for longer trips, family touring, group camping, boats, work vehicles and off-grid adventures.

Its standout feature is the dual-zone design, with two separate compartments that can be controlled independently. This allows you to keep fresh food chilled in one side while storing frozen food or ice in the other, giving you far more flexibility than a standard single-zone cool box.

With a total capacity of 78 litres, the WCC 80DZ provides generous storage for food and drinks. WAECO states that it can accommodate up to approximately 128 x 330ml cans or 23 x 1.5-litre bottles, making it well suited to extended motorhome trips, caravan holidays, large families and professional use.

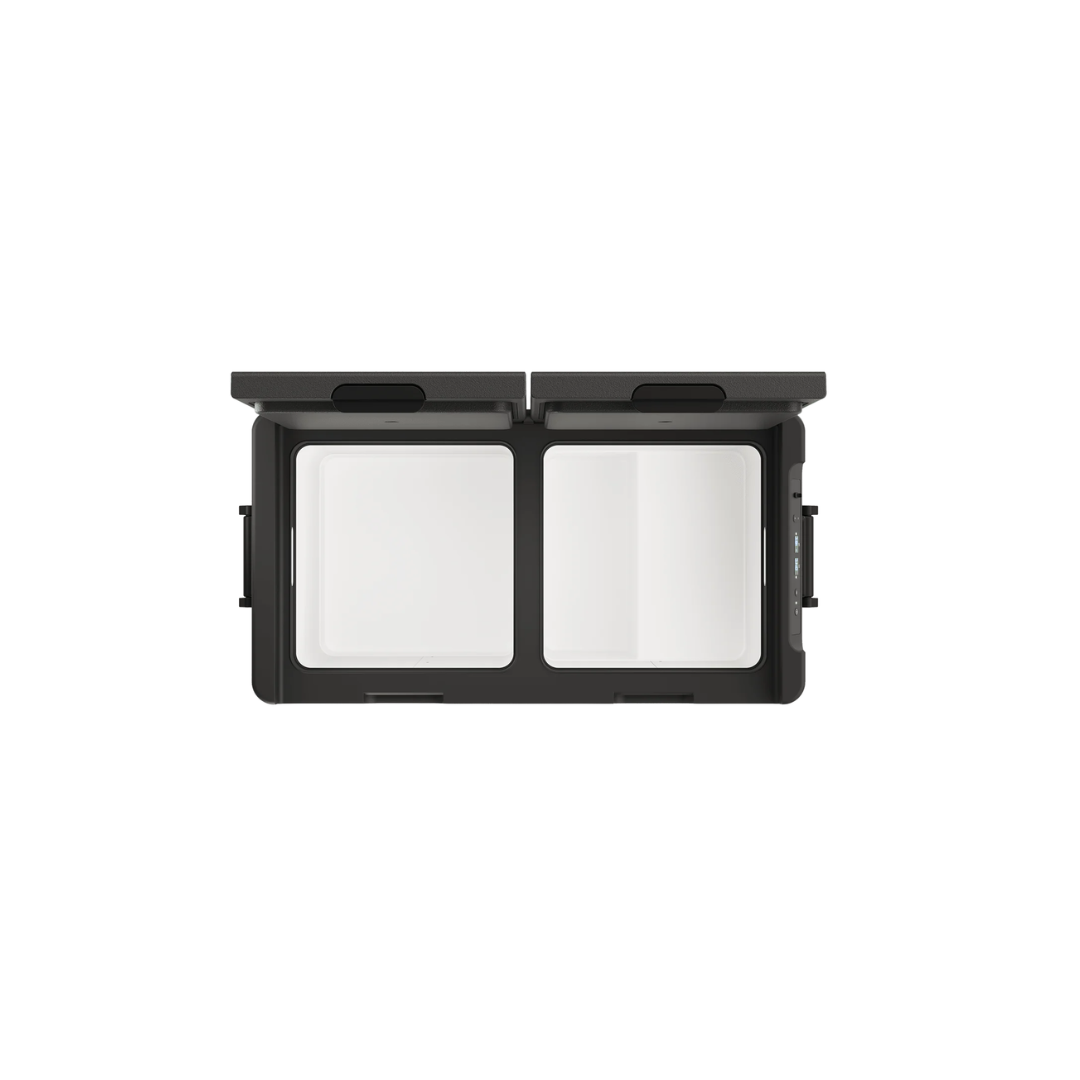

Independent Dual-Zone Cooling

The WCC 80DZ has two separate storage compartments, each with its own temperature control.

This means you can configure the cool box as:

• One fridge compartment and one freezer compartment
• Two chilled compartments set to different temperatures
• Two freezer compartments
• Separate storage areas for food and drinks

Each compartment can be set between +20°C and -18°C, allowing you to store chilled and frozen items at the same time.

Powerful Compressor Technology

Using proven compressor cooling technology, the WAECO WCC 80DZ delivers reliable refrigeration and freezing performance with low energy consumption.

It is designed to maintain the selected temperatures even in warm outdoor conditions, making it a dependable choice for summer camping, long journeys and off-grid travel.

Large 78-Litre Capacity

The spacious interior provides enough room for longer journeys and larger groups without relying on campsite fridges or regular food stops.

Its dual compartments also make it easier to keep contents organised, separating drinks, fresh food and frozen items while travelling.

Rugged and Portable Design

Despite its large capacity, the WCC 80DZ remains portable thanks to strong, space-saving drop-down handles on both sides.

Reinforced corner protection with integrated feet helps protect the cool box during transport and outdoor use. The intuitive lid latches can be opened with one hand, while the removable lids improve access and make cleaning easier.

Vehicle Battery Protection

The WCC 80DZ is designed to run from 12V or 24V DC systems, making it suitable for cars, vans, campervans, motorhomes, trucks and boats.

Its battery protection system helps reduce the risk of excessively discharging the connected vehicle or leisure battery when the engine is switched off.

Key Features

• Large 78-litre dual-zone compressor cool box
• Two independently controlled compartments
• Store chilled and frozen food at the same time
• Adjustable temperature from +20°C to -18°C
• Operates from 12V or 24V DC
• Powerful and efficient compressor cooling
• Digital temperature controls
• Rugged corner protection with integrated feet
• Strong drop-down carry handles
• Intuitive one-handed lid latches
• Removable lids for easier access and cleaning
• Ideal for longer trips, families and group travel
• Suitable for campervans, motorhomes, caravans, boats and work vehicles

Technical Specifications

• Manufacturer: WAECO
• Model: WCC 80DZ
• Product code: 9630001973
• Product type: Dual-zone compressor cool box
• Total capacity: 78 litres
• Operating voltage: 12V / 24V DC
• Power input: 47W
• Temperature range: +20°C to -18°C
• Refrigerant: R600a
• Width: 890mm
• Height: 500mm
• Depth: 457mm
• Weight: 22.8kg
• GTIN / EAN: 7333497007485
• Compatible UK mains adapter: WAECO WPS 90 – 9630002156

The official WAECO specification confirms the 78-litre capacity, 47W power input, 12/24V operation, dimensions and weight.

Capacity Guide

The 78-litre interior can accommodate approximately:

• 128 x 330ml cans, or
• 23 x 1.5-litre bottles

Actual usable capacity will depend on the layout of the two compartments and the shape of the contents.

Optional Mains Operation

The WCC 80DZ is designed primarily for 12V and 24V DC power supplies. An optional WAECO WPS 90 UK mains adapter can be used to run the cool box from a compatible mains socket.

The mains adapter is available separately unless specifically stated otherwise.

Ideal For

• Campervan and motorhome touring
• Family caravan holidays
• Long camping trips
• Boats and marine use
• Trucks and work vehicles
• Festivals and outdoor events
• Group travel
• Chilled and frozen food storage
• Off-grid battery systems

The WAECO WCC 80DZ 78L Dual-Zone Compressor Cool Box is an excellent choice for anyone who needs serious portable refrigeration capacity. Its independently controlled compartments, robust construction and flexible 12V or 24V operation make it a practical fridge-freezer solution for extended travel, leisure and professional use.
