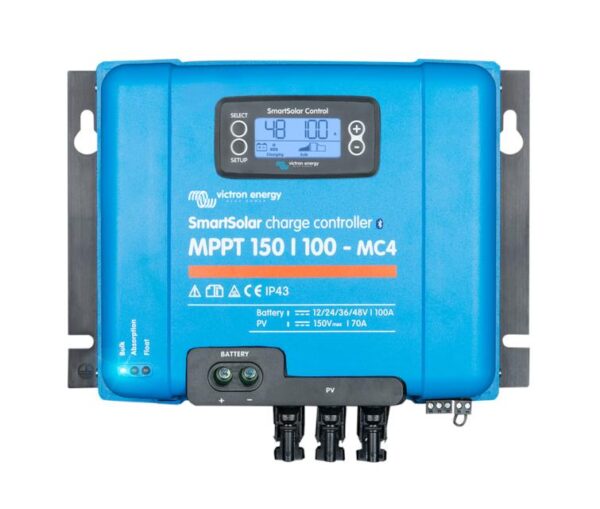

Victron SmartSolar MPPT 150/100-MC4 VE.Can

Victron SmartSolar MPPT 150/100-MC4 VE.Can

Elevate your solar power system with the Victron SmartSolar MPPT 150/100-MC4 VE.Can (SCC115110511). This advanced solar charger employs ultra-fast Maximum Power Point Tracking (MPPT) technology to maximise energy harvesting from your solar panels. This ensures efficient charging and prolonging battery life.

Key Benefits of the SmartSolar MPPT 150/100-MC4:

• Ultra Fast MPPT Technology: Constantly monitors voltage and current output. It extracts every drop of available power from your solar panels, especially effective in partially clouded conditions.
• Remote Monitoring and Control: Seamlessly control and monitor your SmartSolar MPPT charger with built-in Bluetooth. Consequently, this allows you to pair it with your smartphone or device via VictronConnect. As a result, you can access your MPPT's full power, anytime, anywhere through the Victron Remote Management Portal (VRM).
• Optional SmartSolar Control Display: Enhance your monitoring capabilities by adding the SmartSolar Control Display. Simply plug it into the face of your MPPT charger for real-time status checks and easy setup.
• Bluetooth Smart Built-in: Effortlessly set up, monitor, update, and synchronise your SmartSolar Charge Controller wirelessly. Consequently, this provides a convenient solution for efficient management.
• Advanced MPPT Detection in Partial Shading: This Victron SmartSolar innovative algorithm ensures optimal energy harvest even in partial shading conditions. This locks onto the optimum Maximum Power Point (MPP).
• Outstanding Conversion Efficiency: Achieve maximum efficiency exceeding 98%, without the need for a cooling fan.
• Flexible Charge Algorithm: Enjoy a fully programmable charge algorithm and eight preprogrammed options, selectable with a rotary switch, offering versatility in charge control.
• Extensive Electronic Protection: Additionally, benefits from over-temperature protection, power derating in high-temperature conditions, PV short circuit protection, PV reverse polarity protection, and PV reverse current protection.
• Internal Temperature Sensor: Compensates absorption and float charge voltage based on temperature. Therefore this ensures precise charging.
• Optional External Battery Voltage and Temperature Sensing: Use Smart Battery Sense or BMV-712 Smart Battery Monitor for communicating battery voltage and temperature to SmartSolar Charge Controllers.
• VE.Direct Connectivity: Establish a wired data connection to a Color Control GX, other GX products, PC, or other devices.
• Remote On-Off and Programmable Relay: Connect to a VE.BUS BMS for remote on-off functionality or program the relay to trip on alarms or other events.
• Optional SmartSolar Pluggable LCD Display: Easily plug in the optional display for additional monitoring and control capabilities.

Optimise your solar system's performance with the Victron SmartSolar MPPT 150/100-MC4 VE.Can (SCC115110511), ensuring efficient energy conversion and intelligent charging for your battery bank.

Victron SmartSolar MPPT 150/100-MC4 VE.Can User Manual

For a comprehensive guide on installing, configuring, and operating your Victron SmartSolar MPPT 150/100-MC4 VE.Can charge controller, refer to the official user manual. This detailed resource provides all the necessary information to ensure optimal performance of your SmartSolar 150/100-MC4 VE.Can model, including:

• Step-by-step installation instructions specific to the SmartSolar MPPT 150/100-MC4 VE.Can
• VE.Can setup for seamless integration with larger systems and communication with other Victron products
• Bluetooth setup for wireless monitoring and control via the VictronConnect app
• Advanced configuration options to fine-tune your solar power system
• Troubleshooting tips and safety guidelines to ensure smooth operation
• Maintenance recommendations for long-lasting and efficient performance

Whether you're new to solar power systems or an experienced installer, this manual is an essential resource for getting the best out of your Victron SmartSolar MPPT 150/100-MC4 VE.Can.

Click here to view the user manual.

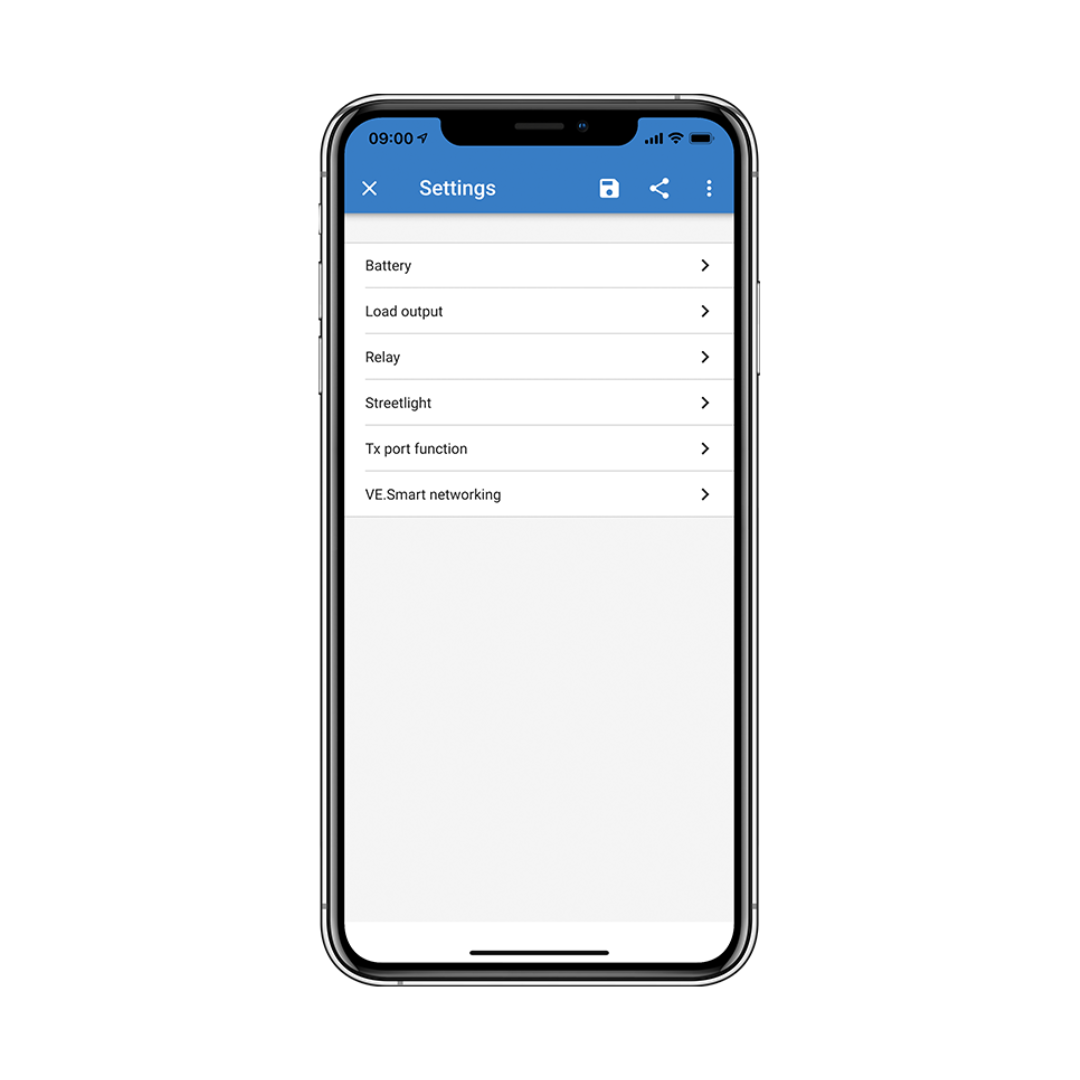

Changing SmartSolar Charge Controller Settings via Bluetooth

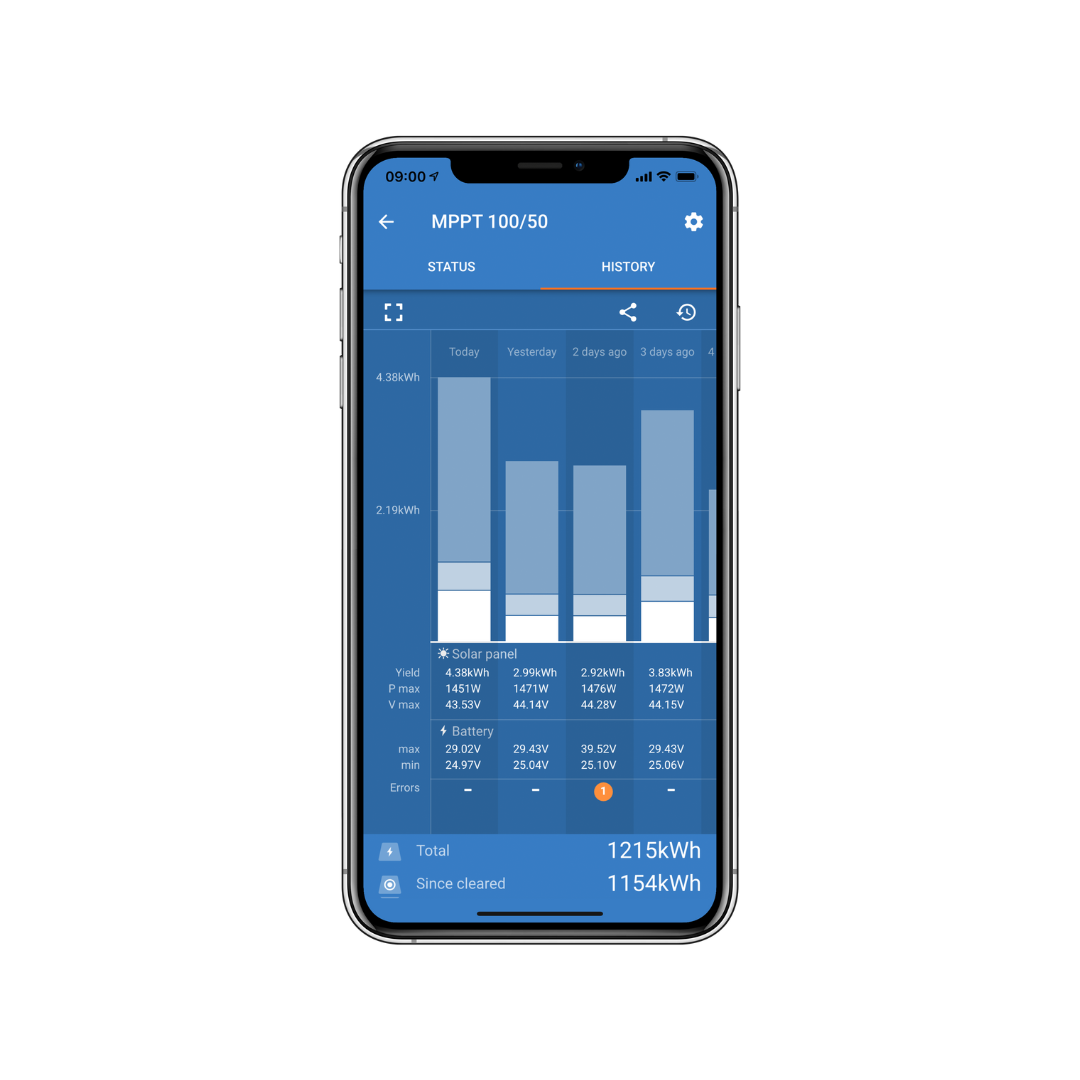

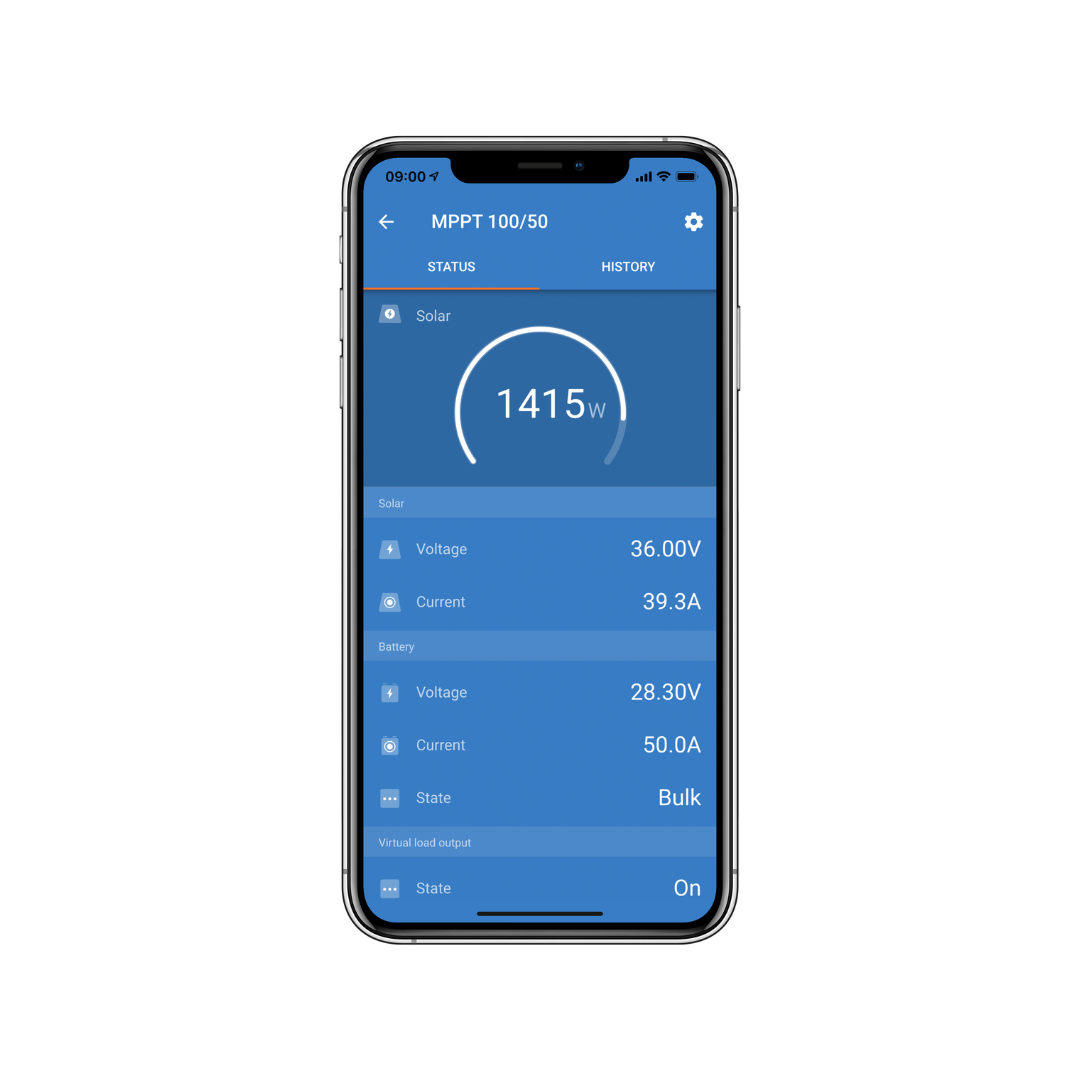

The Victron SmartSolar MPPT 150/100-MC4 VE.Can comes equipped with Bluetooth connectivity, making it easy to wirelessly configure and monitor the controller. Using the VictronConnect app, you can easily access and modify your MPPT settings from your smartphone or tablet. This allows you to seamlessly control battery charge profiles, monitor system performance, and apply firmware updates—all without physical connections.

Here’s how to get started:

1. Download the VictronConnect app – Available for both iOS and Android devices.
2. Connect via Bluetooth – Enable Bluetooth on your device and pair it with your SmartSolar MPPT 150/100-MC4 VE.Can controller.
3. Modify settings – Adjust charging voltage, current limits, and other parameters using the app’s intuitive interface.
4. Save and monitor – Apply changes and monitor your system’s performance in real-time.

For more detailed instructions on changing settings via Bluetooth, refer to the user manual.

Victron SmartSolar MPPT 150/100-MC4 VE.Can Datasheet

For detailed technical specifications of the Victron SmartSolar MPPT 150/100-MC4 VE.Can, refer to the official datasheet. This document provides critical information such as:

• Maximum input voltage and current ratings
• Battery compatibility and optimised charging profiles
• VE.Can and Bluetooth capabilities for seamless system integration and wireless control
• Advanced solar energy harvesting technology for improved efficiency
• Protection features such as over-temperature, short circuit, and reverse polarity protection

The datasheet is essential for selecting the right Victron SmartSolar MPPT 150/100-MC4 VE.Can for your solar system and ensuring optimal performance.

Click here to view the datasheet.
