Victron Energy Smart IP43 Charger 12/30 (1+1) 120–240V – PSC123051095

The Victron Smart IP43 Charger 12V 30A is an intelligent mains battery charger for 12V leisure and marine electrical systems. It provides up to 30A to the main battery bank, plus a separate output for maintaining a starter battery.

Built-in Bluetooth provides monitoring and configuration through VictronConnect. Adaptive charging automatically manages the charging process according to battery use and condition.

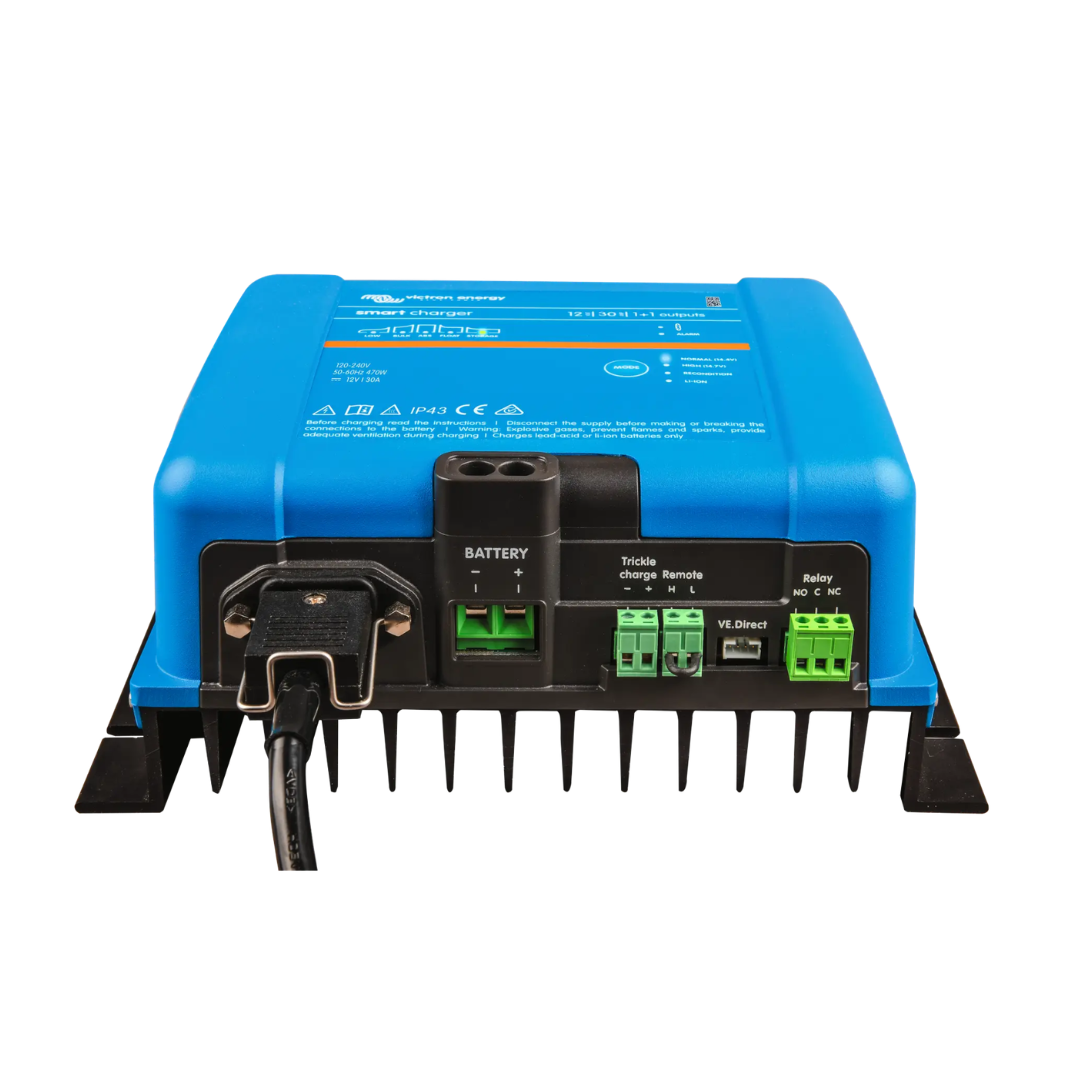

Victron Smart IP43 Charger 12V 30A

The 1+1 configuration is designed for installations with separate service and starter batteries. The main output provides up to 30A, while the second output provides approximately 3A for starter battery maintenance.

This makes the charger particularly useful in campervans, motorhomes and boats connected to mains or shore power.

Key Features

• Battery Voltage: 12V

• Main Charging Current: 30A

• Outputs: 1+1

• Starter Battery Output: Approximately 3A

• AC Input Range: 90–265V AC

• Frequency: 45–65Hz

• DC Input Compatibility: 90–400V DC

• Protection Rating: IP43

• Connectivity: Built-in Bluetooth

• App: VictronConnect

• Communication: VE.Direct

• Maximum Cable Size: 16mm²

• Dimensions: Approx. 249 x 180 x 100mm

• Weight: Approx. 3.5kg

• Product Code: PSC123051095

• Programmable relay

• Remote on/off

• Adaptive multi-stage charging

• Storage and reconditioning modes

• Temperature compensation

Adaptive 12V Battery Charging

This 12V 30A battery charger automatically adapts the charging process according to how the battery has been used.

Variable absorption time helps prevent unnecessary overcharging after shallow discharges. Following deeper discharge, the absorption period is increased to provide a more complete recharge.

Storage mode reduces the charging voltage during extended periods of connection. This helps maintain suitable batteries when the system is not regularly used.

Main and Starter Battery Outputs

The main output supplies the service or leisure battery bank with up to 30A. A separate output provides approximately 3A for maintaining a starter battery.

The second output is intended for starter battery maintenance. It does not provide the charger's full 30A output.

Bluetooth and VictronConnect

Built-in Bluetooth allows the Bluetooth battery charger to communicate wirelessly with VictronConnect.

The app provides access to charging information and available settings from a compatible smartphone, tablet or computer. Charging parameters can also be configured for the connected battery system.

VE.Direct Connectivity

The Victron battery charger includes a VE.Direct interface for wired communication with compatible Victron equipment.

Remote on/off functionality and a programmable relay provide further integration options for more advanced electrical installations.

Suitable Applications

The charger is particularly suitable as a marine battery charger and for leisure electrical systems, including:

• Campervans and motorhomes

• Boats and marine installations

• Caravan battery systems

• Service and starter battery banks

• Shore power charging

• Off-grid battery systems

The unit should be installed in accordance with Victron's instructions, with suitable ventilation, cabling and battery-side protection. The correct charging profile should always be selected for the connected battery.
