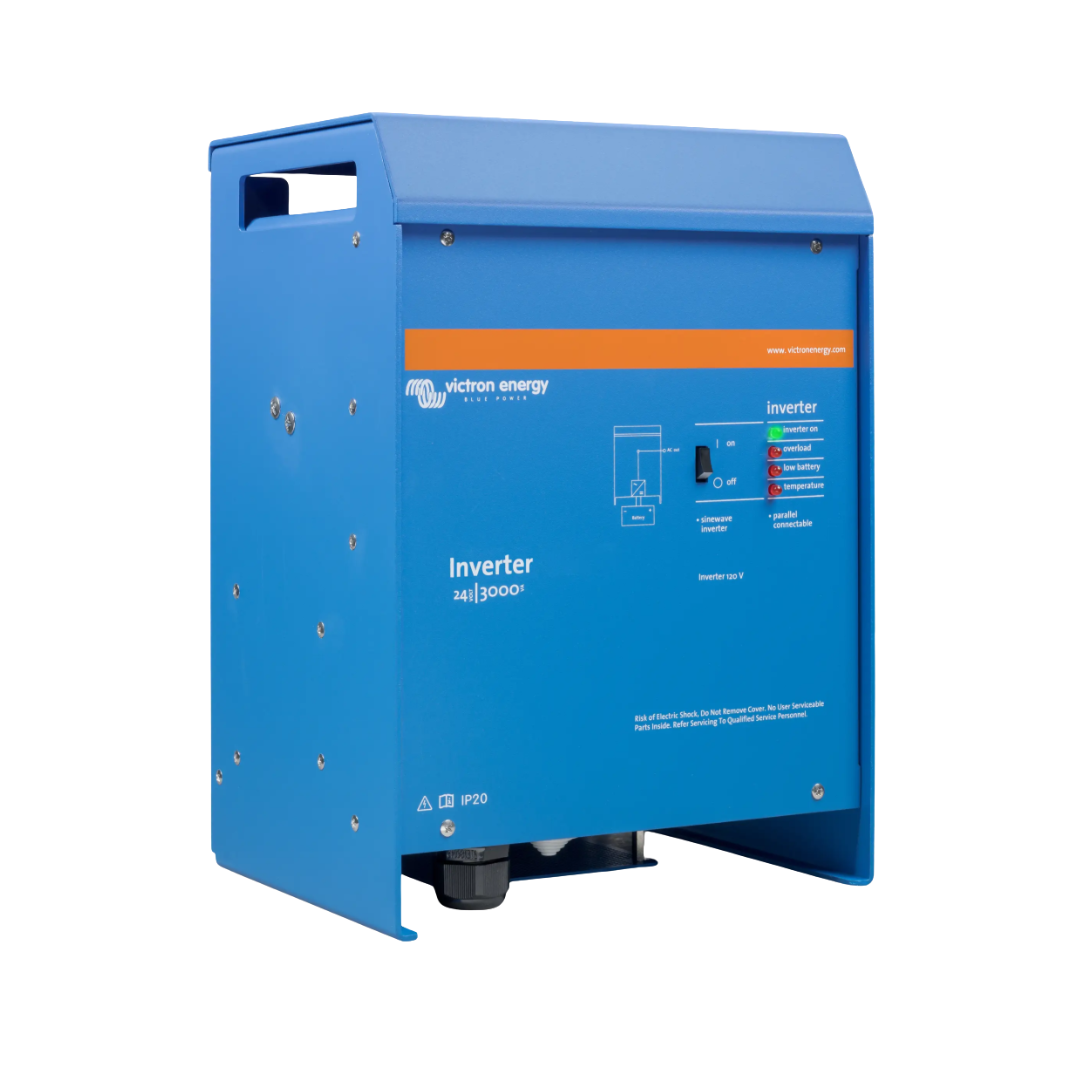

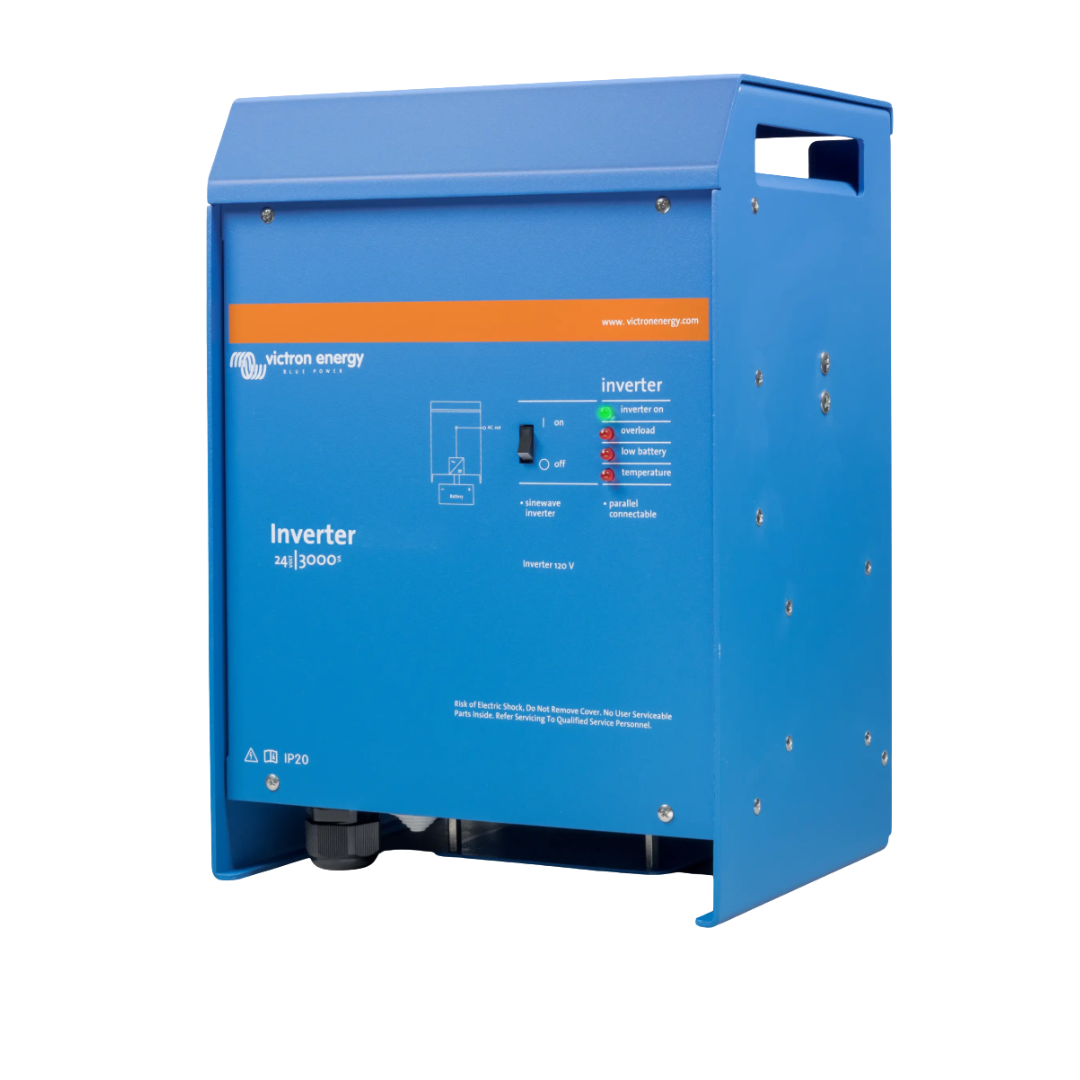

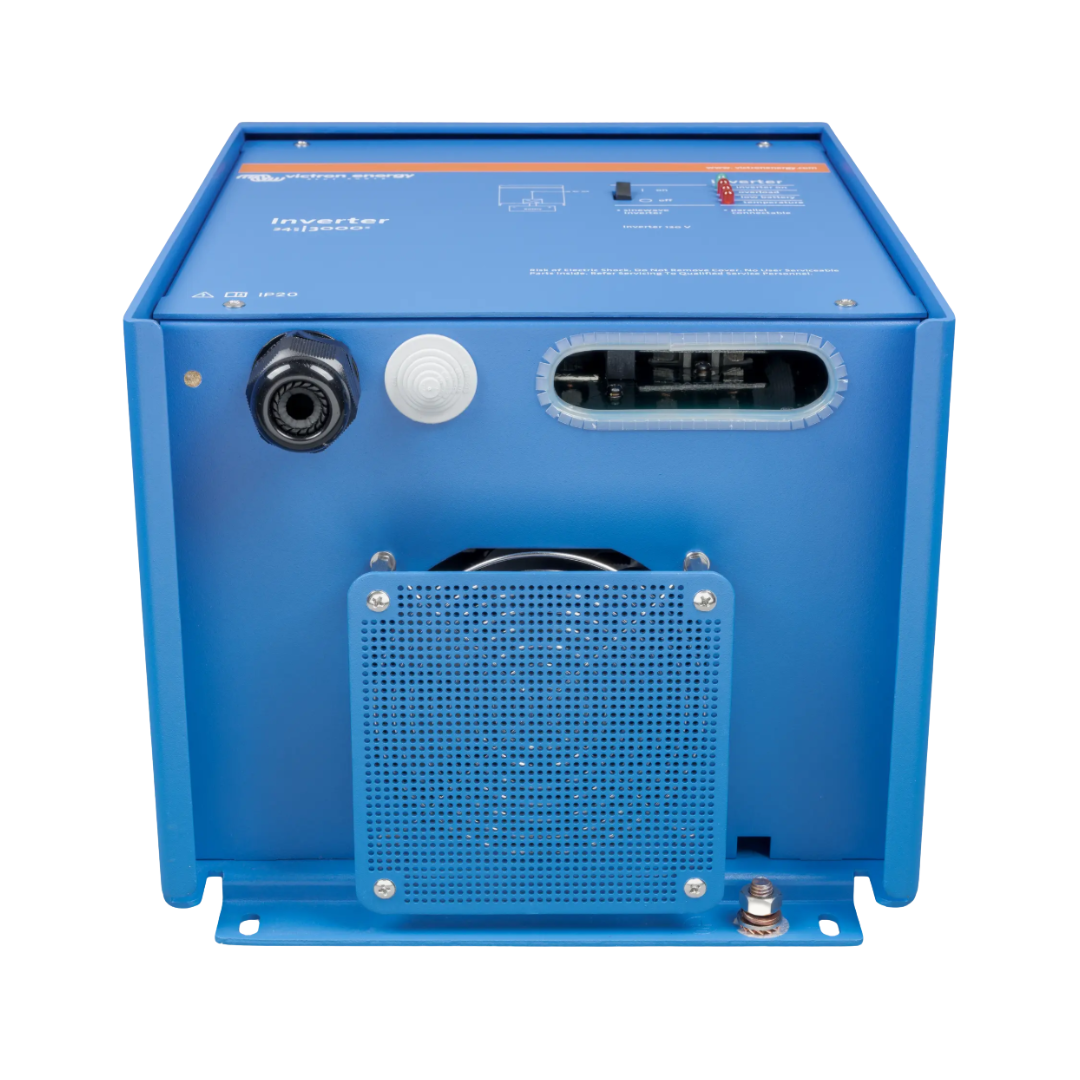

Victron Inverter 24/3000 230V VE.Bus (PIN243020000)

The Victron Phoenix Inverter 24V 3000VA converts 24V battery power into reliable 230V AC electricity. Designed for off-grid solar systems, boats and larger electrical installations, it delivers pure sine wave power for compatible appliances and equipment.

Featuring Victron's SinusMax technology, high start-up power and VE.Bus communication, this inverter provides dependable performance for demanding applications.

Victron Phoenix Inverter 24V 3000VA

Designed for 24V battery systems, this inverter delivers 3000VA rated output with a pure sine wave waveform.

Its robust design combines high-frequency and low-frequency technologies to provide efficient power conversion and reliable operation.

Key Features

• Battery Voltage: 24V DC
• AC Output: 230V AC
• Rated Output: 3000VA
• Waveform: Pure sine wave
• Communication: VE.Bus
• Technology: Victron SinusMax
• High start-up power for demanding appliances
• Parallel operation with compatible units
• Three-phase and split-phase configuration options
• Programmable relay
• Adjustable inverter settings
• Compatible with supported Victron GX devices
• Short-circuit, overload and overheating protection

Reliable Pure Sine Wave Power

This 24V pure sine wave inverter uses Victron's SinusMax technology to deliver stable AC electricity.

Its high start-up capability helps accommodate equipment with demanding initial power requirements, including refrigeration compressors and electric motors.

This makes it suitable for installations requiring reliable power for both everyday appliances and more demanding equipment.

VE.Bus Monitoring and Configuration

The Victron VE.Bus inverter includes a communication interface for system configuration and integration.

Using a compatible MK3-USB interface, you can connect the inverter to a computer and configure settings through supported Victron software.

Adjustable parameters include output voltage, frequency, battery protection settings and programmable relay functions.

Compatible GX devices, including the Cerbo GX, offer additional monitoring and system integration options.

Parallel and Three-Phase Operation

For larger installations, compatible Phoenix VE.Bus inverters can operate together to increase available power.

Up to six compatible units can operate in parallel, subject to Victron's configuration requirements.

Three-phase and split-phase configurations are also supported, providing flexibility for more complex electrical systems.

Sizing and Installation

Although this is a 3000VA inverter, its continuous output in watts depends on operating temperature and the manufacturer's rated specifications.

Check the combined running power and start-up requirements of connected appliances before selecting an inverter.

Installation requires a suitable 24V battery bank, correctly sized DC cables and appropriate circuit protection.

Allow sufficient space for ventilation, mounting and access to electrical connections.

Suitable Applications and Care

This off-grid power inverter is suitable for:

• Off-grid solar and battery installations
• Boats and marine electrical systems
• Off-grid cabins and workshops
• Larger 24V electrical installations
• Backup power systems with additional equipment

Install the inverter in a dry, well-ventilated location. Keep ventilation openings clear and inspect electrical connections according to Victron's instructions.

Please Note

This model uses VE.Bus communication and does not include built-in Bluetooth. It also does not include a battery charger or automatic mains transfer switch.

For further technical information, visit the official Victron Energy website.
