Phoenix Inverter 12V 375VA 230V VE.Direct UK (PIN121371400)

The Victron Phoenix Inverter 12V 375VA converts 12V battery power into reliable 230V AC electricity. Designed for campervans, motorhomes, boats and smaller off-grid installations, it provides pure sine wave power for compatible low-wattage appliances.

With VE.Direct communication, high start-up power and energy-saving ECO mode, this compact inverter offers dependable performance and flexible configuration.

Victron Phoenix Inverter 12V 375VA

Designed for 12V battery systems, this inverter delivers 375VA rated output and 300W continuous power at 25°C.

Its pure sine wave output provides stable electricity for suitable appliances, including laptop chargers, small televisions and other electronic equipment.

Key Features

• Battery Voltage: 12V DC

• AC Output: 230V AC

• Rated Output: 375VA

• Continuous Output at 25°C: 300W

• Continuous Output at 40°C: 260W

• Peak Power: 700W

• Waveform: Pure sine wave

• Communication: VE.Direct

• Bluetooth: Available with an optional dongle

• ECO mode for reduced battery consumption

• Adjustable output voltage and frequency

• Configurable low-battery protection

• Remote on/off capability

• Short-circuit, overload and overheating protection

VE.Direct Monitoring and Configuration

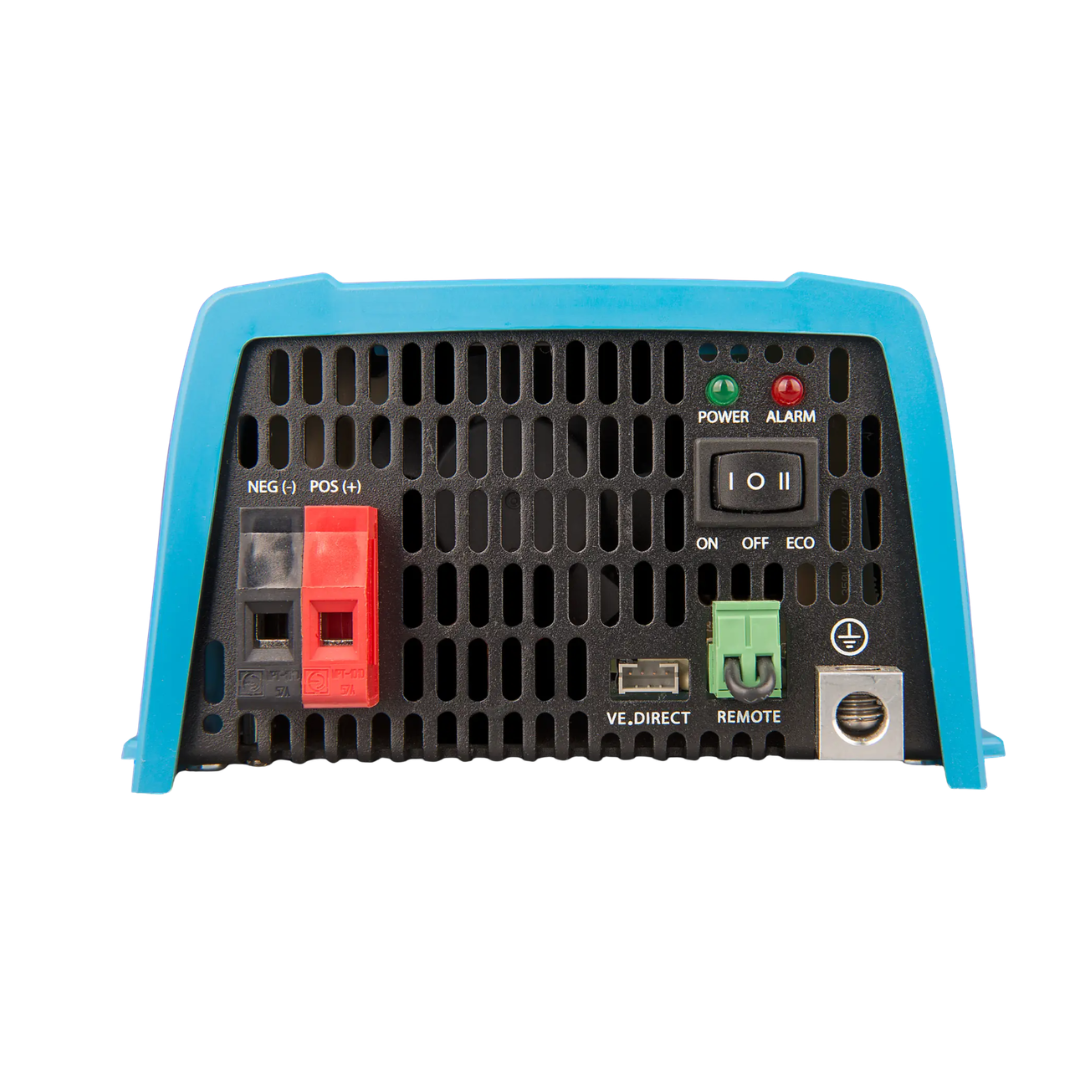

The Victron VE.Direct inverter includes a communication port for monitoring and configuration.

Connect to a computer using a compatible VE.Direct to USB interface. Alternatively, an optional VE.Direct Bluetooth Smart dongle enables wireless access through VictronConnect.

You can adjust output voltage, frequency, ECO mode and low-battery protection settings.

Reliable Pure Sine Wave Power

This 12V pure sine wave inverter delivers clean 230V AC electricity for compatible equipment.

Its transformer-based design provides dependable performance, while high start-up capability helps accommodate brief power surges.

The 700W peak rating supports suitable appliances with higher initial power requirements, provided their demands remain within the inverter's limits.

ECO Mode for Reduced Battery Consumption

ECO mode helps conserve battery energy when connected appliances are switched off or drawing very little power.

When demand falls below a configured threshold, the inverter enters a low-power standby state.

It periodically checks for demand and resumes normal operation when required.

Sizing and Installation

Although this is a 375VA inverter, its continuous output is 300W at 25°C.

Check the running wattage and start-up requirements of your appliances before selecting an inverter.

Its compact design makes it suitable for installations where space is limited. Allow adequate clearance for ventilation and electrical connections.

Use correctly sized DC cables, suitable circuit protection and a compatible 12V battery bank.

Suitable Applications and Care

This campervan inverter is suitable for:

• Campervans and motorhomes

• Boats and marine electrical systems

• Small off-grid solar installations

• Laptop chargers and electronic devices

• Other compatible low-power appliances

Install the inverter in a dry, well-ventilated location. Keep ventilation openings clear and inspect electrical connections according to Victron's instructions.

Please Note

Bluetooth connectivity requires an optional VE.Direct Bluetooth Smart dongle. This inverter does not include a battery charger or automatic mains transfer switch.

For further technical information, visit the official Victron Phoenix Inverter VE.Direct product page.
