Victron Phoenix Inverter VE.Direct 48/375 (PIN481371400)

The Victron Phoenix Inverter 48V 375VA is a compact pure sine wave inverter designed to convert 48V battery power into reliable 230V AC electricity. Ideal for boats, off-grid solar systems and specialist vehicles, it provides mains-style power for smaller electrical appliances.

With VE.Direct communication, high start-up power and energy-saving ECO mode, this inverter offers dependable performance in a space-saving design.

Victron Phoenix Inverter 48V 375VA

Designed for 48V battery systems, this inverter delivers 375VA rated output and 300W continuous power at 25°C.

Its pure sine wave output provides stable electricity for compatible appliances, including laptop chargers, small televisions and other electronic equipment.

Key Features

• Battery Voltage: 48V DC

• AC Output: 230V AC

• Rated Output: 375VA

• Continuous Output at 25°C: 300W

• Continuous Output at 40°C: 260W

• Peak Power: 700W

• Maximum Efficiency: 90%

• Waveform: Pure sine wave

• Communication: VE.Direct

• Bluetooth: Available with an optional dongle

• ECO mode for reduced battery consumption

• Configurable output and battery protection settings

• Remote on/off capability

• Short-circuit and overheating protection

VE.Direct Monitoring and Configuration

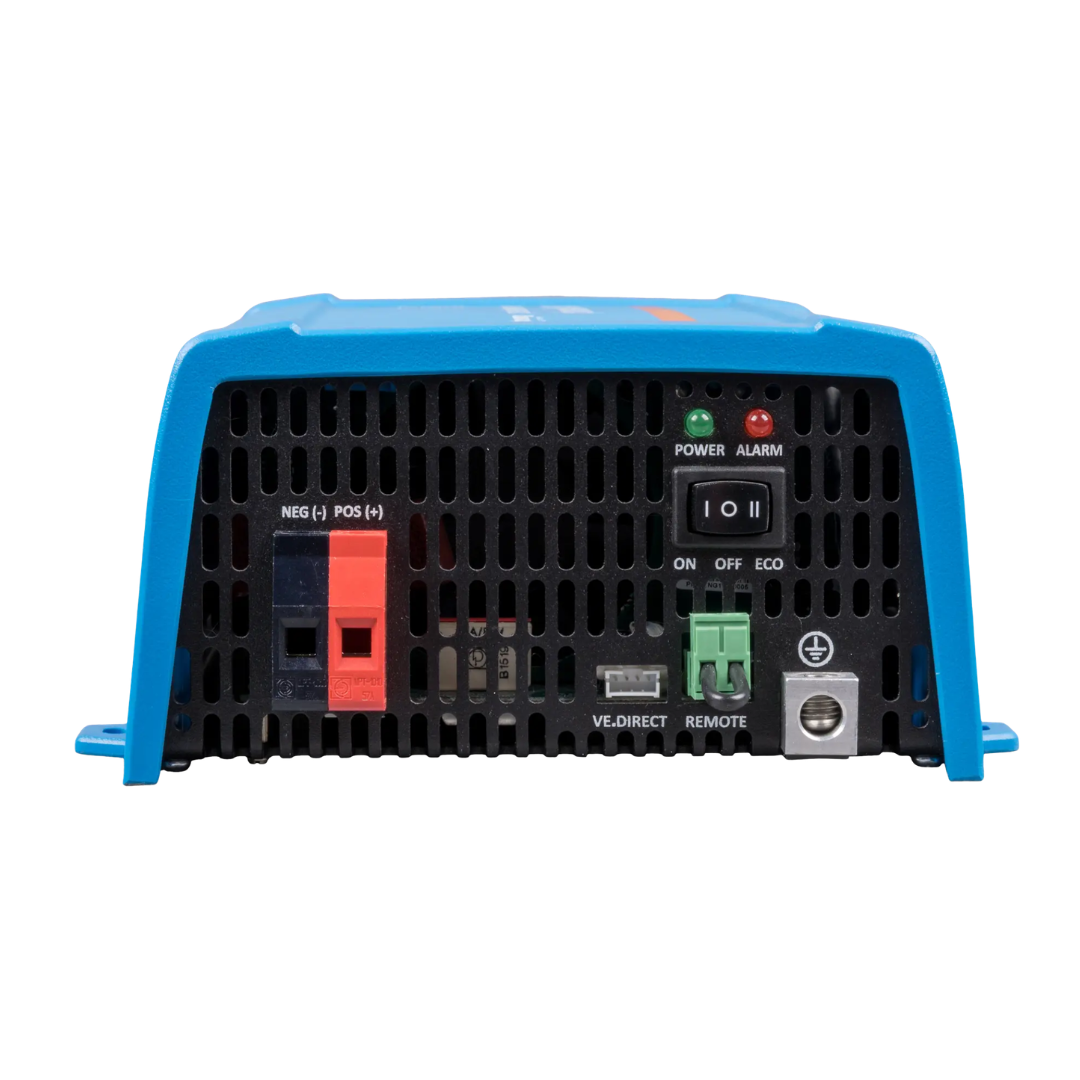

The Victron VE.Direct inverter includes a communication port for monitoring and configuration.

Connect it to a computer using a compatible VE.Direct to USB interface. Alternatively, an optional VE.Direct Bluetooth Smart dongle enables wireless access through VictronConnect.

You can configure output voltage, frequency, ECO mode and low-battery protection settings.

Reliable Pure Sine Wave Power

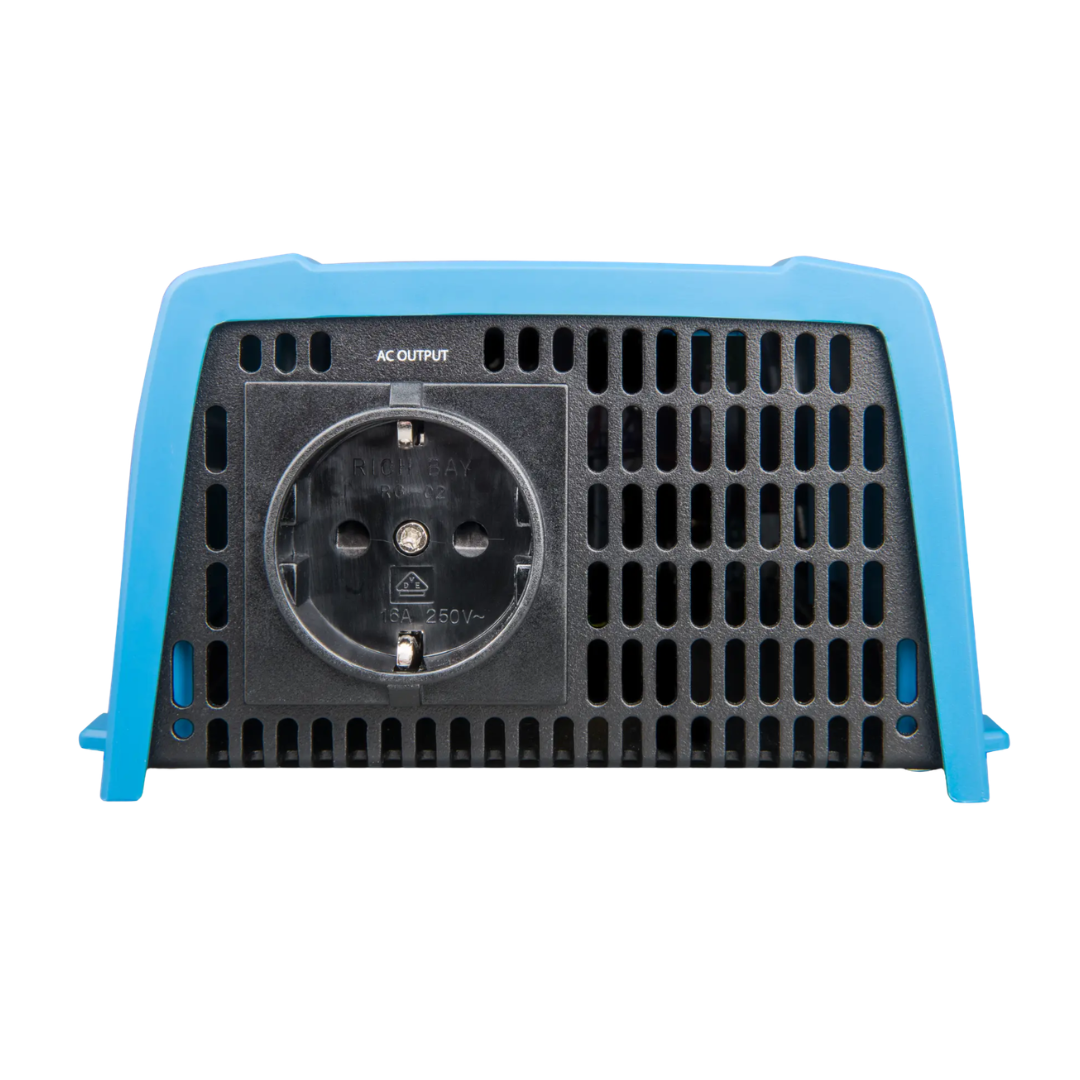

This 48V pure sine wave inverter provides clean 230V AC electricity for compatible equipment.

Its transformer-based design offers dependable performance, while high start-up capability helps accommodate brief power surges.

With 700W peak power, it can support suitable appliances with higher initial power requirements.

ECO Mode for Reduced Battery Consumption

ECO mode helps conserve battery energy when connected appliances are switched off or drawing very little power.

The inverter enters a low-power standby state when demand falls below a configurable threshold.

It periodically checks for demand and resumes normal operation when required.

Sizing and Installation

Although this is a 375VA inverter, its continuous output is 300W at 25°C.

Check your appliances' running wattage and start-up requirements before selecting an inverter.

The unit measures approximately 86 × 165 × 260mm and weighs 3kg.

Its compact dimensions make it suitable for installations where space is limited.

Use correctly sized DC cables, suitable circuit protection and a compatible 48V battery bank.

Suitable Applications and Care

This off-grid power inverter is suitable for:

• Boats and marine electrical systems

• Off-grid solar and battery installations

• Specialist vehicles with 48V systems

• Laptop chargers and small electronics

• Other compatible low-power appliances

Install the inverter in a dry, well-ventilated location. Keep ventilation openings clear and inspect electrical connections according to Victron's instructions.

Please Note

Bluetooth requires an optional VE.Direct Bluetooth Smart dongle. This inverter does not include a battery charger or automatic mains transfer switch.

For further technical information, visit the official Victron Phoenix Inverter VE.Direct product page.
