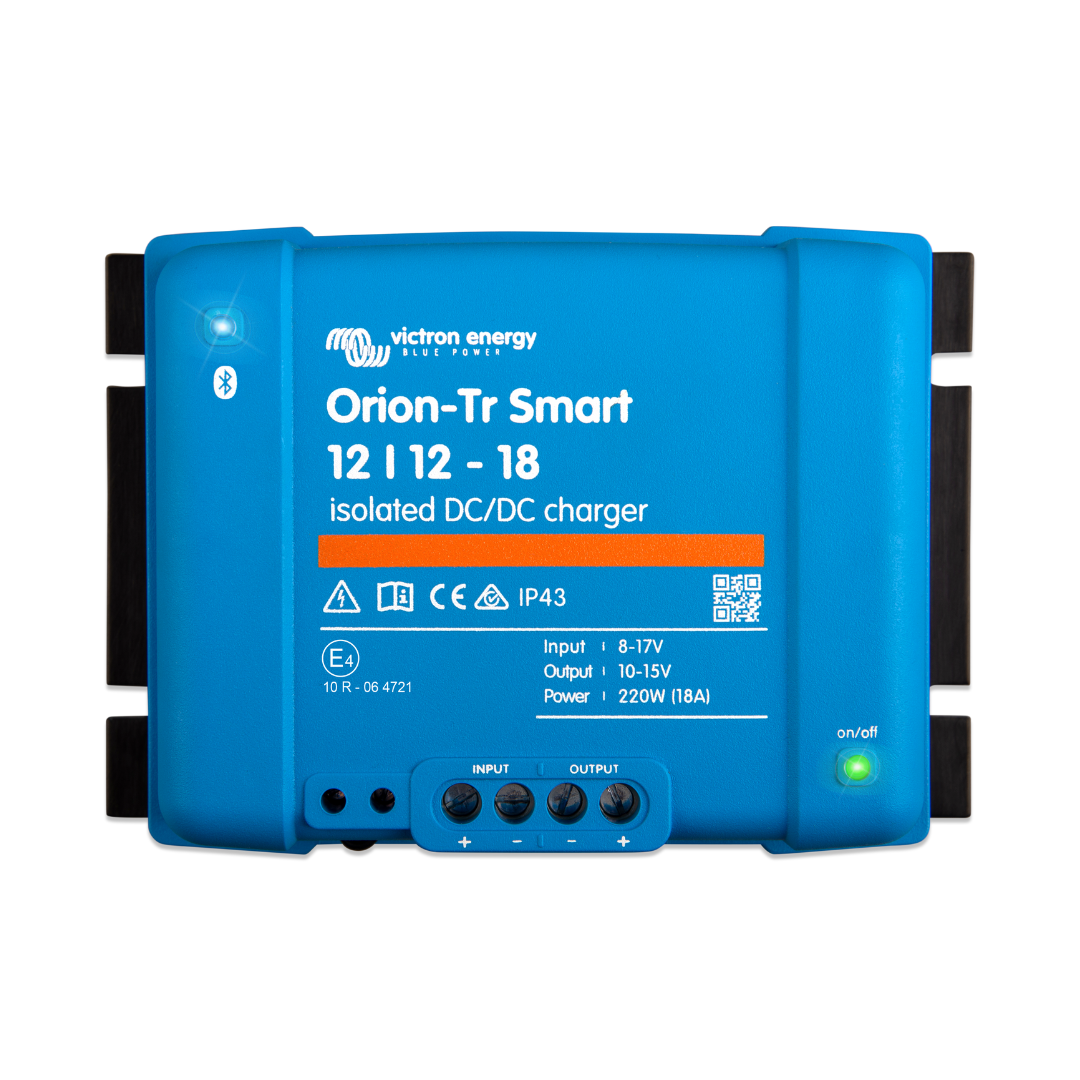

Victron Orion-Tr Smart 12/12-18 Isolated DC-DC Charger
Product info
Product info
Couldn't load pickup availability
Charge your leisure battery safely and efficiently while travelling with the Victron Orion-Tr Smart 12/12-18 Isolated DC-DC Charger. Designed for 12V dual-battery systems, it uses power from your vehicle’s starter battery and alternator to deliver intelligent 18A charging to your leisure battery.
Ideal for campervans, motorhomes, boats and commercial vehicles, the Orion-Tr Smart is suitable for both conventional and smart alternators. Built-in engine-running detection automatically activates charging when the engine is operating, helping prevent unwanted discharge from the starter battery.
Bluetooth connectivity allows you to configure the charger, select the correct charging profile and monitor its operating status through the VictronConnect app. Its adaptive three-stage charging process—bulk, absorption and float—helps maintain battery health and supports both lead-acid and lithium batteries.
This isolated model provides galvanic isolation between its input and output circuits, making it particularly suitable for marine installations and systems where electrical separation is required. Units can also be connected in parallel when a higher charging current is needed.
Key features
- Designed for 12V-to-12V battery charging
- 18A continuous output at 40°C
- Suitable for smart and conventional alternators
- Built-in Bluetooth connectivity
- Configure and monitor through the VictronConnect app
- Adaptive three-stage battery charging
- Compatible with lead-acid and lithium batteries
- Automatic engine-running detection
- Galvanically isolated input and output
- Adjustable output voltage
- Remote on/off connection
- Short-circuit protection
- Temperature protection with automatic output reduction
- Parallel connection supported for increased output
- Suitable for campervans, motorhomes, boats and commercial vehicles
Technical specifications
| Specification | Rating |
|---|---|
| Product code | ORI121222120 |
| Input voltage range | 8–17V DC |
| Nominal output voltage | 12.2V |
| Adjustable output range | 10–15V |
| Continuous output current at 40°C | 18A |
| Maximum output current for 10 seconds | 25A |
| Continuous output power at 40°C | 220W |
| Continuous output power at 25°C | 280W |
| Maximum efficiency | 87% |
| Standby current | Less than 1mA |
| Galvanic isolation | 200V DC |
| Maximum cable size | 16mm² |
| Operating temperature | −20°C to +55°C |
| Dimensions | 130 × 186 × 70mm |
| Weight | 1.3kg |
Correct cable sizes and external fuses should be selected for the installation. Always follow Victron’s installation guidance. Specifications verified against the official Victron Orion-Tr Smart isolated charger manual
