Victron Orion-Tr 12/48-8A Isolated DC-DC Converter 380W – ORI124838110

Name: Victron Orion-Tr 12/48-8A Isolated DC-DC Converter 380W – ORI124838110
SKU: ORI124838110
Price: 132.42 GBP

£132.42

Tax included.

Product info

Changed your mind? Return your order within 30 days.

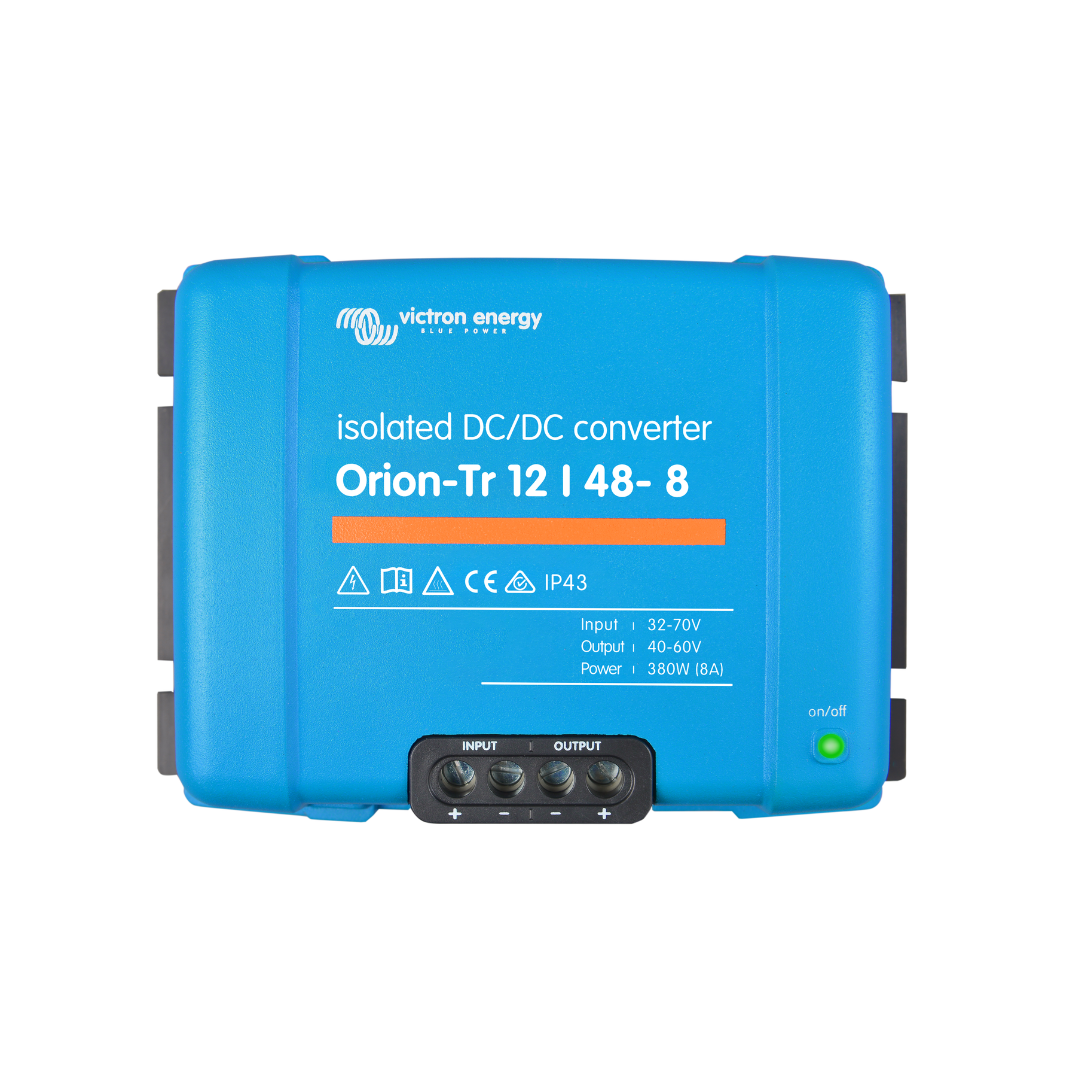

The Victron Orion-Tr 12/48-8A Isolated DC-DC Converter converts a nominal 12V DC supply into a regulated 48V output, allowing compatible 48V equipment to operate from a 12V electrical system.

With an 8A continuous output at nominal voltage and 40°C, adjustable output voltage and galvanic isolation, it provides a practical solution for installations requiring separate input and output circuits.

Key Features

12V to 48V Conversion: Power compatible 48V DC equipment from a nominal 12V supply.
Adjustable Output: Set the output between 40V and 60V to match your equipment’s requirements.
Galvanic Isolation: Electrically separates the input and output circuits.
Remote On/Off: Control operation using a low-power switch or an appropriate external control signal.
Parallel Operation: Multiple units can operate together to increase available output current.
Electronic Protection: Short-circuit protection and temperature-dependent output reduction help protect the converter.
Screw Terminal Connections: Accepts cables up to 16mm².
IP43 Protection: Applies when installed with the screw terminals facing downwards.

Technical Specifications

Specification	Details
Product code	ORI124838110
Model	Orion-Tr 12/48-8A isolated
Input voltage range	8–17V DC
Nominal output voltage	48.2V DC
Adjustable output range	40–60V DC
Continuous output current	8A at nominal output voltage and 40°C
Continuous output power	380W at 40°C; 430W at 25°C
Efficiency	89%
Dimensions (H × W × D)	130 × 186 × 80mm
Weight	1.8kg

Selecting the Correct Orion

This model is designed to supply DC equipment and is not intended for battery charging. For charging a 48V battery from a 12V system, choose a suitable DC-DC battery charger.

See the official Victron Orion-Tr isolated converter page for further information.
