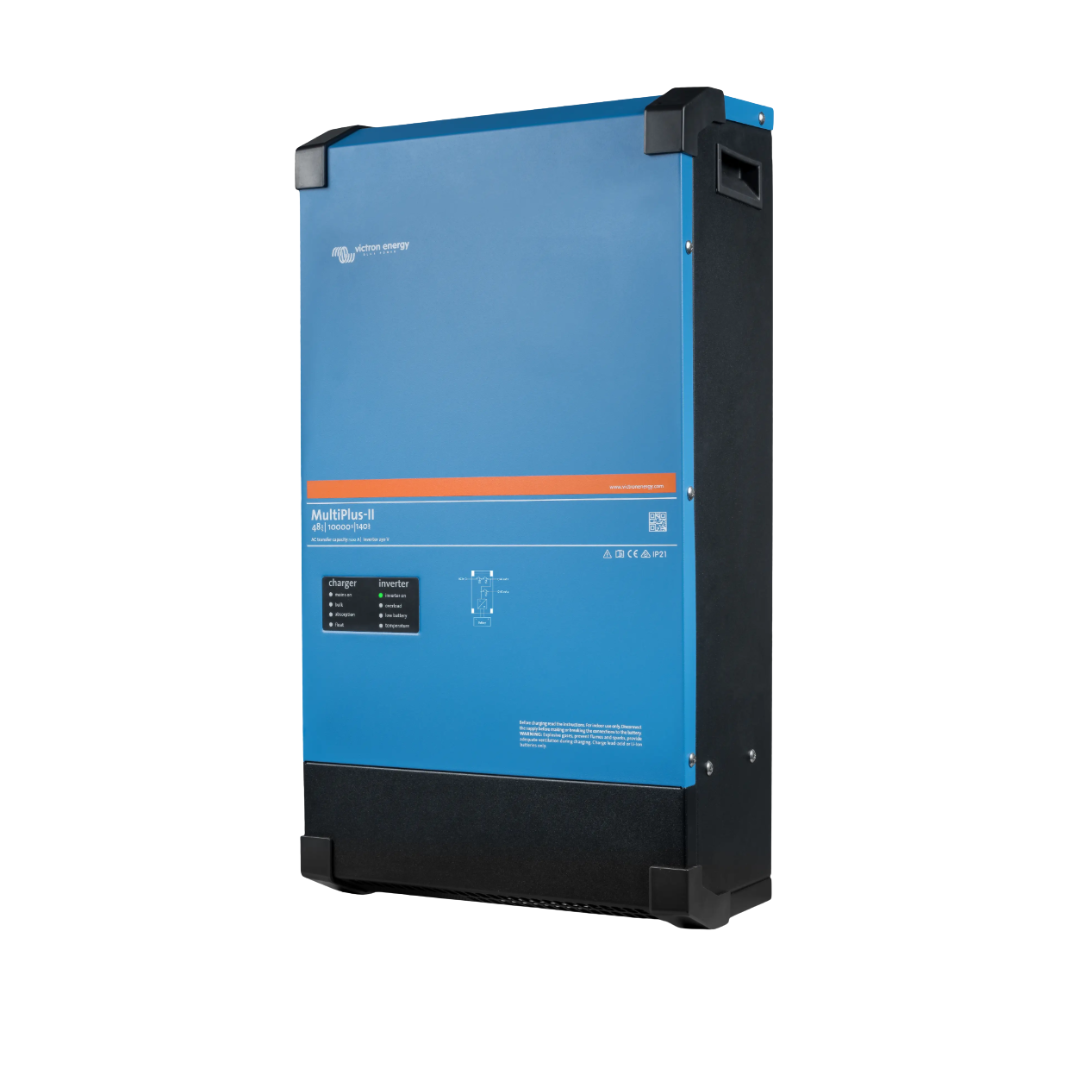

MultiPlus-II 48/10000/140-100 230V

The Victron MultiPlus-II 48/10000 is a powerful 48V inverter charger designed for demanding off-grid, marine, vehicle and energy storage applications. Combining a pure sine wave inverter, battery charger and automatic transfer switch in one unit, it provides a flexible solution for managing battery and AC power.

With a 10,000VA inverter rating, 140A battery charger and 100A transfer switch, this model is designed for larger electrical systems where substantial inverter capacity and fast battery charging are required.

Victron MultiPlus-II 48/10000 Power Management

The MultiPlus-II features Victron's PowerControl and PowerAssist technology. PowerControl allows the system to take account of a limited generator, shore or grid supply, while PowerAssist can supplement the available AC source with energy from the battery when demand exceeds the set limit.

UPS functionality also provides automatic switching to inverter power if the external AC supply fails, helping maintain power to connected equipment with minimal interruption.

Key Features

• 48V inverter charger for high-capacity electrical systems
• 10,000VA inverter rating
• 140A battery charging capability
• 100A transfer switch
• 230V AC output
• Pure sine wave inverter
• PowerControl and PowerAssist technology
• Automatic UPS functionality
• VE.Bus communication
• Can be integrated with compatible Victron system components
• Remote monitoring possible when combined with a compatible GX device
• Suitable for off-grid, marine and other high-demand power systems

Specifications

• Brand: Victron Energy
• Model: MultiPlus-II 48/10000/140-100 230V
• Manufacturer Part Number: PMP483105000
• Battery Voltage: 48V
• Inverter Rating: 10,000VA
• AC Output: 230V
• Battery Charge Current: 140A
• Transfer Switch: 100A
• Communication: VE.Bus
• Warranty: 5 Years

System Integration

This Victron inverter charger can form part of a wider electrical installation incorporating batteries, compatible MPPT solar charge controllers and GX monitoring equipment. Adding a GX device such as the Cerbo GX also enables local and remote system monitoring through Victron's VRM platform.

For solar installations, a separate MPPT solar charge controller is required; the MultiPlus-II does not contain an integrated solar charge controller.

The Victron MultiPlus-II 48/10000 is particularly suited to installations requiring a high-capacity 10000VA inverter charger combined with powerful battery charging and intelligent AC power management.
