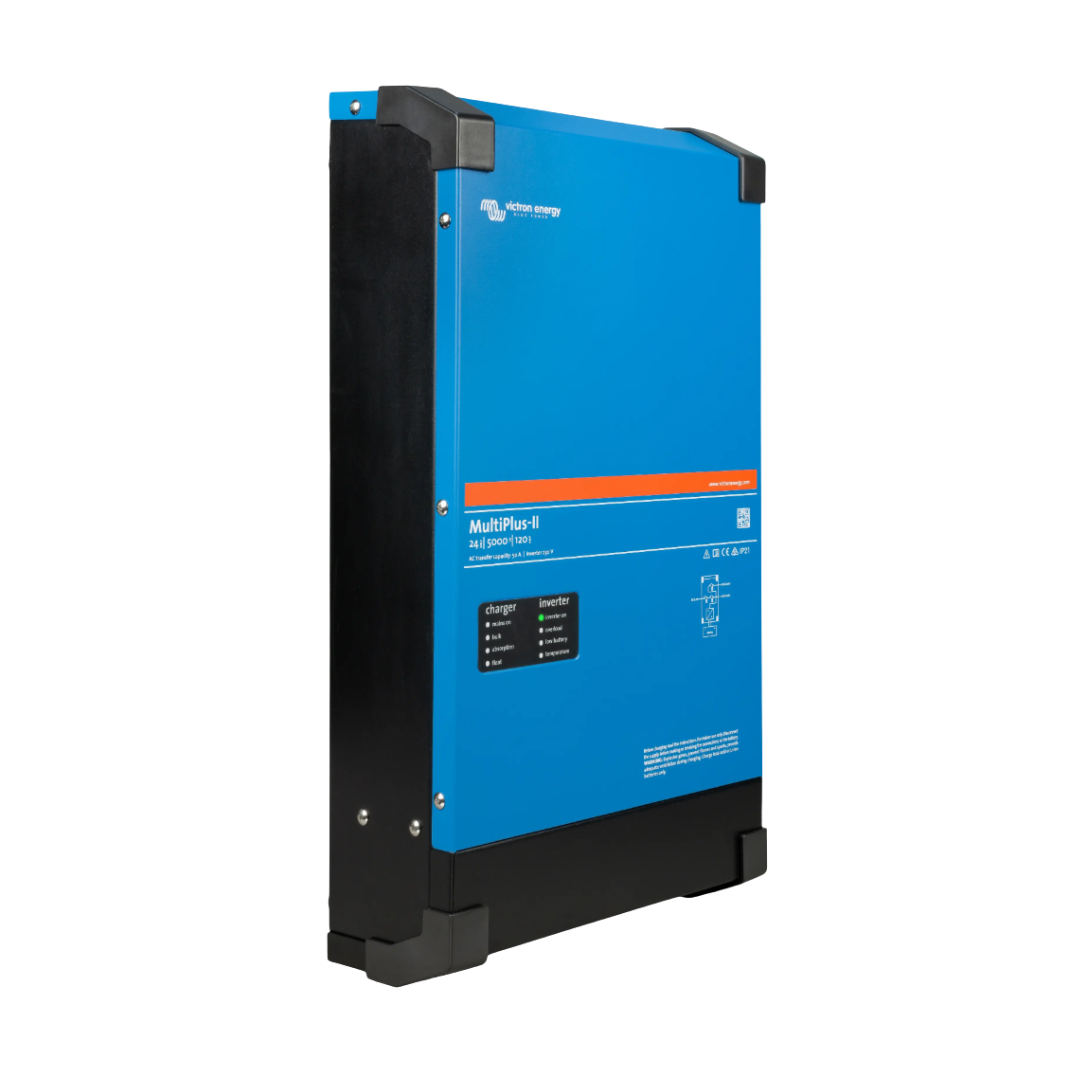

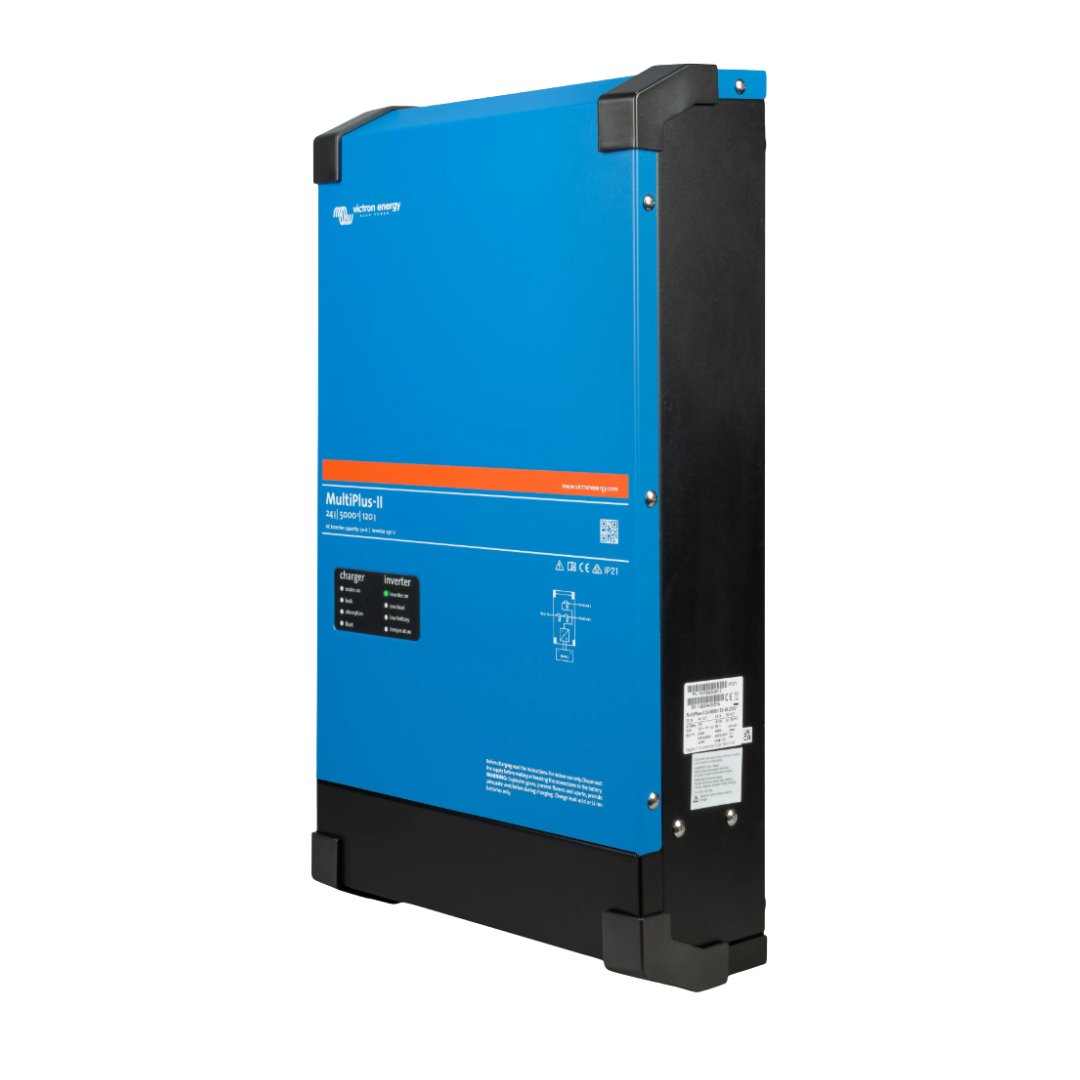

Victron MultiPlus-II 24/5000/120-50 230V

The Victron MultiPlus-II 24/5000/120-50 combines a powerful 24V inverter with a 120A battery charger. Designed for off-grid, marine and hybrid power systems, this inverter charger provides reliable 230V AC electricity and intelligent battery charging.

With a 5000VA power rating, PowerAssist technology and automatic AC switching, it offers dependable performance for demanding electrical installations.

Victron MultiPlus-II 24/5000/120-50 – Intelligent Power Management

This 24V inverter charger delivers pure sine wave electricity for compatible appliances and sensitive electronic equipment. Its integrated adaptive battery charger helps maintain battery performance when shore power, mains electricity or a generator is available.

PowerAssist technology prevents overloads on limited AC supplies. When demand increases, the system can supplement incoming AC power using energy stored in the batteries.

The integrated transfer switch automatically changes between external AC power and inverter operation. This provides a practical backup power solution for installations requiring a reliable electricity supply.

VE.Bus connectivity also allows integration with compatible Victron GX devices, providing additional monitoring and system control options.

Key Features

• Pure Sine Wave Inverter: Provides clean, stable 230V AC electricity for compatible household appliances and electronics.
• 5000VA Power Rating: Delivers 4000W continuous inverter output at 25°C for demanding electrical loads.
• 120A Adaptive Battery Charger: Provides intelligent charging for suitable 24V battery banks.
• PowerAssist Technology: Supplements limited shore power or generator supplies using battery energy when required.
• PowerControl Function: Helps prevent overloading an external AC supply by limiting the power used for battery charging.
• Automatic Transfer Switch: Switches between external AC power and inverter operation when the incoming supply changes.
• UPS Function: Provides rapid transfer to inverter power, typically within 20 milliseconds, for compatible equipment.
• VE.Bus Connectivity: Supports configuration, system integration and communication with compatible monitoring equipment.
• Remote Monitoring: Connect to a compatible GX device for access to the Victron Remote Management portal.
• Parallel and Three-Phase Operation: Supports larger installations using appropriately configured compatible units.
• Built-In Protection: Includes protection against overload, short circuits, overheating and unsuitable battery voltage.

Specifications

• Brand: Victron Energy
• Model: MultiPlus-II 24/5000/120-50 230V
• Nominal Battery Voltage: 24V DC
• DC Input Voltage Range: 19–33V DC
• AC Output Voltage: 230V AC
• Continuous Inverter Rating: 5000VA / 4000W at 25°C
• Peak Power: 9000W
• Maximum Battery Charging Current: 120A
• Maximum AC Feed-Through Current: 50A
• Maximum Efficiency: 96%
• Communication: VE.Bus
• Protection Rating: IP22
• Weight: 30kg
• Dimensions (H × W × D): 607 × 330 × 149mm
• What's Included?

One Victron MultiPlus-II 24/5000/120-50 230V inverter charger.

Please Note

This model is designed for 24V battery systems. Check battery compatibility, cable sizing and appliance power requirements before purchasing.

Remote VRM monitoring requires a compatible GX device and internet connection. Additional interfaces may be required for configuration through VictronConnect.

Grid-connected and parallel installations require appropriate configuration and must comply with applicable electrical regulations.

For detailed technical information and installation guidance, refer to the official Victron MultiPlus-II datasheet.
