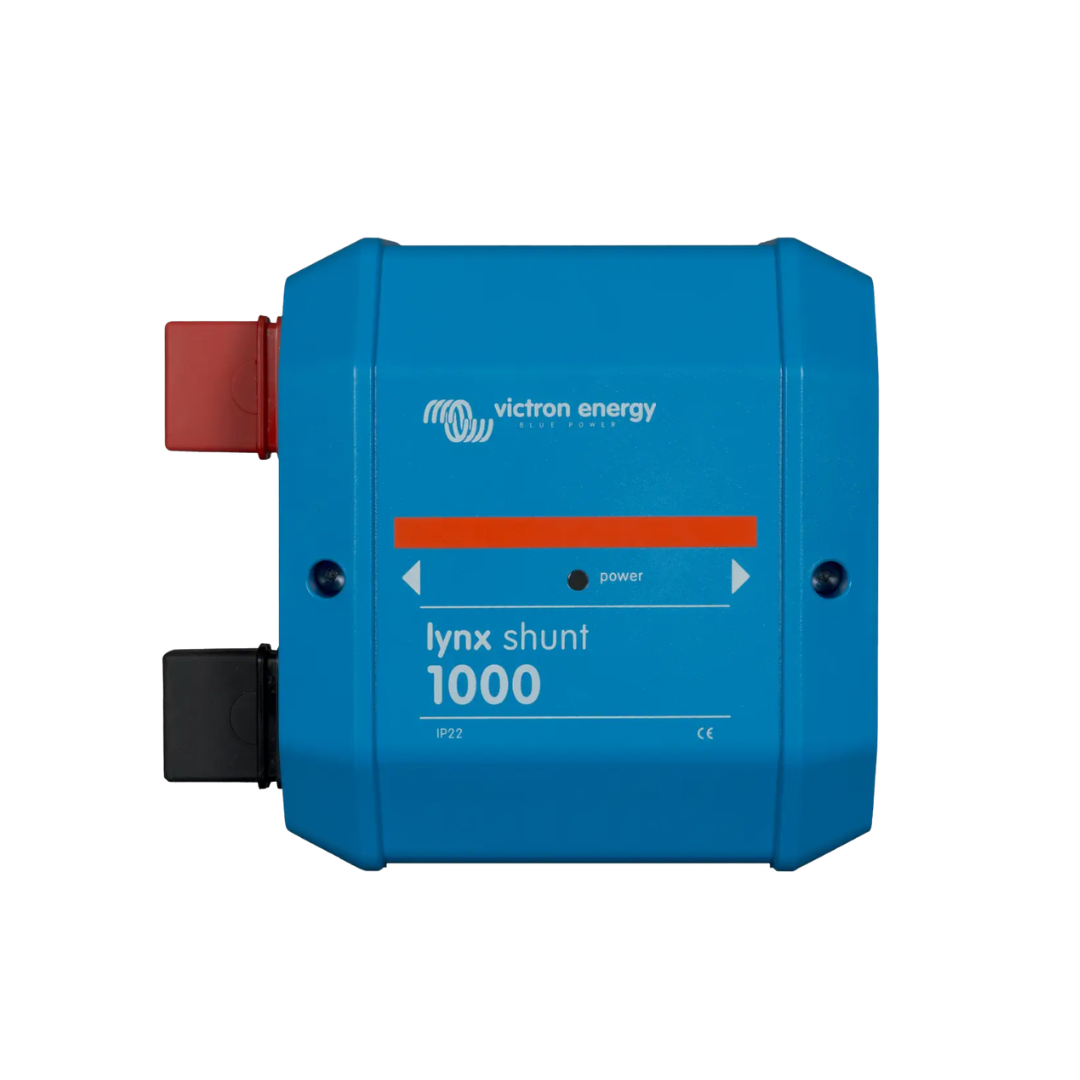

Victron Energy Lynx Shunt VE.Can 1000A Battery Monitor

The Victron Energy Lynx Shunt VE.Can is an intelligent 1000A battery shunt and monitoring module designed for use within the modular Victron Lynx DC distribution system. It combines positive and negative busbars, accurate battery monitoring and a holder for the main system fuse in one neat, professional unit.

Ideal for campervans, motorhomes, boats, commercial vehicles and off-grid power systems, the Lynx Shunt measures the current flowing into and out of the battery bank. It uses this information to calculate important battery data, including state of charge, voltage, current, consumed amp-hours and remaining battery capacity.

The Lynx Shunt communicates through VE.Can and is designed to be connected to a compatible Victron GX device, such as a Cerbo GX. Battery information can then be viewed locally through a GX display or remotely through the Victron Remote Management portal when the system has an internet connection.

As part of the Victron Lynx system, the shunt connects neatly alongside compatible modules such as the Lynx Power In and Lynx Distributor, helping create a tidy and scalable high-current DC installation.

Key Features

• Genuine Victron Energy Lynx Shunt VE.Can
• Intelligent 1000A continuous-current shunt
• Built-in battery monitor
• Measures battery voltage, current and state of charge
• Tracks consumed amp-hours and remaining battery capacity
• Positive and negative busbars integrated into the unit
• Built-in position for the main system fuse
• Communicates with compatible GX devices through VE.Can
• Suitable for 12V, 24V and 48V systems
• Designed for use within the modular Victron Lynx distribution system
• Potential-free programmable alarm contact
• Ideal for high-current leisure, marine and off-grid installations
• Main fuse sold separately

Technical Details

• Manufacturer: Victron Energy
• Product: Lynx Shunt VE.Can
• Supply voltage range: 9–70V DC
• Supported system voltages: 12V, 24V and 48V
• Continuous current rating: 1000A DC
• Communication: VE.Can
• Alarm contact: 3A at 30V DC or 250V AC
• System type: Modular DC distribution and battery monitoring
• Main fuse: Required and sold separately

Victron specifies a continuous current rating of 1000A and compatibility with 12V, 24V and 48V systems.

M8 and M10 Versions

The Lynx Shunt VE.Can is available in M8 and M10 versions. The correct version should be selected to match the connection size used by the other modules in your Lynx system.

• The M8 model is designed to accommodate a CNN fuse.
• The M10 model can accommodate CNN, ANL or Mega fuses.

The required main fuse is not included and must be selected to suit the system design and connected cabling.

Ideal For

• Campervan and motorhome electrical systems
• Marine and boat installations
• Off-grid battery banks
• High-power inverter systems
• Commercial vehicle conversions
• Victron Lynx DC distribution systems
• 12V, 24V and 48V battery installations

Important Installation Information

For accurate battery monitoring, the battery bank must be connected on the battery side of the Lynx Shunt, with all chargers and electrical loads connected on the system side. This ensures that all current entering and leaving the battery passes through the shunt and is included in its state-of-charge calculations.

The Victron Lynx Shunt VE.Can is an excellent choice for professional electrical installations requiring high-current DC distribution, main fuse protection and detailed battery monitoring in one compact, integrated module.
