Do I need to buy anything else to use the Victron 100Ah NG LiFePO4 battery?

Yes, this battery requires a compatible external Victron NG Battery Management System (BMS) purchased separately to control charging and discharging. Please note that BMS units from the earlier Lithium Battery Smart range are not compatible.

Can I install this battery on its side in my campervan or boat?

Yes, the battery is designed for flexible installation and can be mounted upright or on its side using the supplied brackets, provided that the terminals never face downwards.

How do I monitor the health and charge level of the 100Ah NG LiFePO4 battery?

The battery shares cell voltages, temperatures, and current data with a connected NG BMS. You can then use the VictronConnect app on a smartphone or tablet via the BMS's Bluetooth connection to view battery information and alarms.

Is this battery protected against dust and water in off-grid setups?

Yes, the battery features an IP65-rated enclosure, which provides protection against dust and water jets, making it suitable for demanding installations.

Can I add more batteries later if I need more power?

Yes, this battery supports both series and parallel configurations to create expandable battery banks, as long as you follow Victron’s installation guidelines.

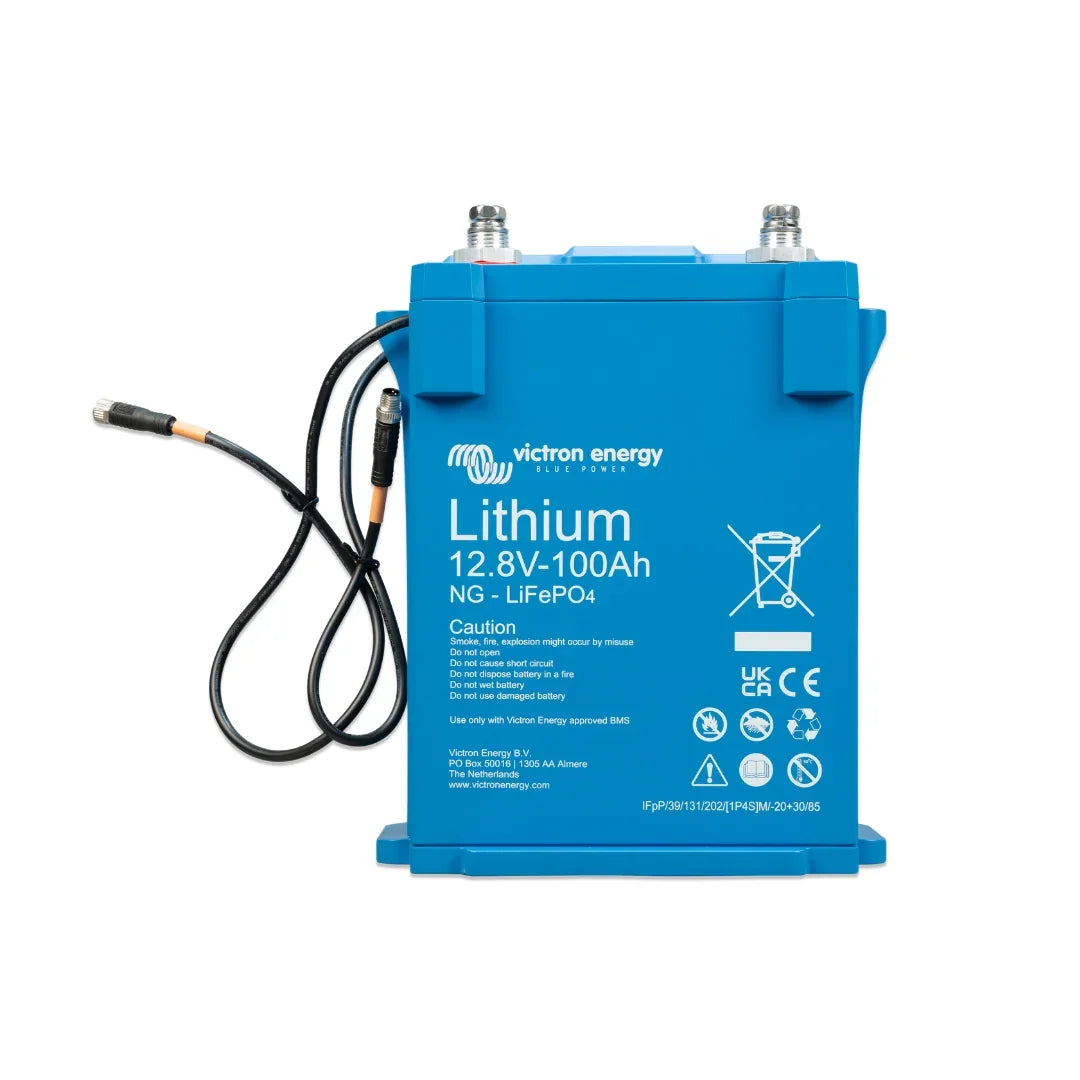

Victron Energy 12.8V 100Ah NG LiFePO4 Lithium Battery with connecting cables

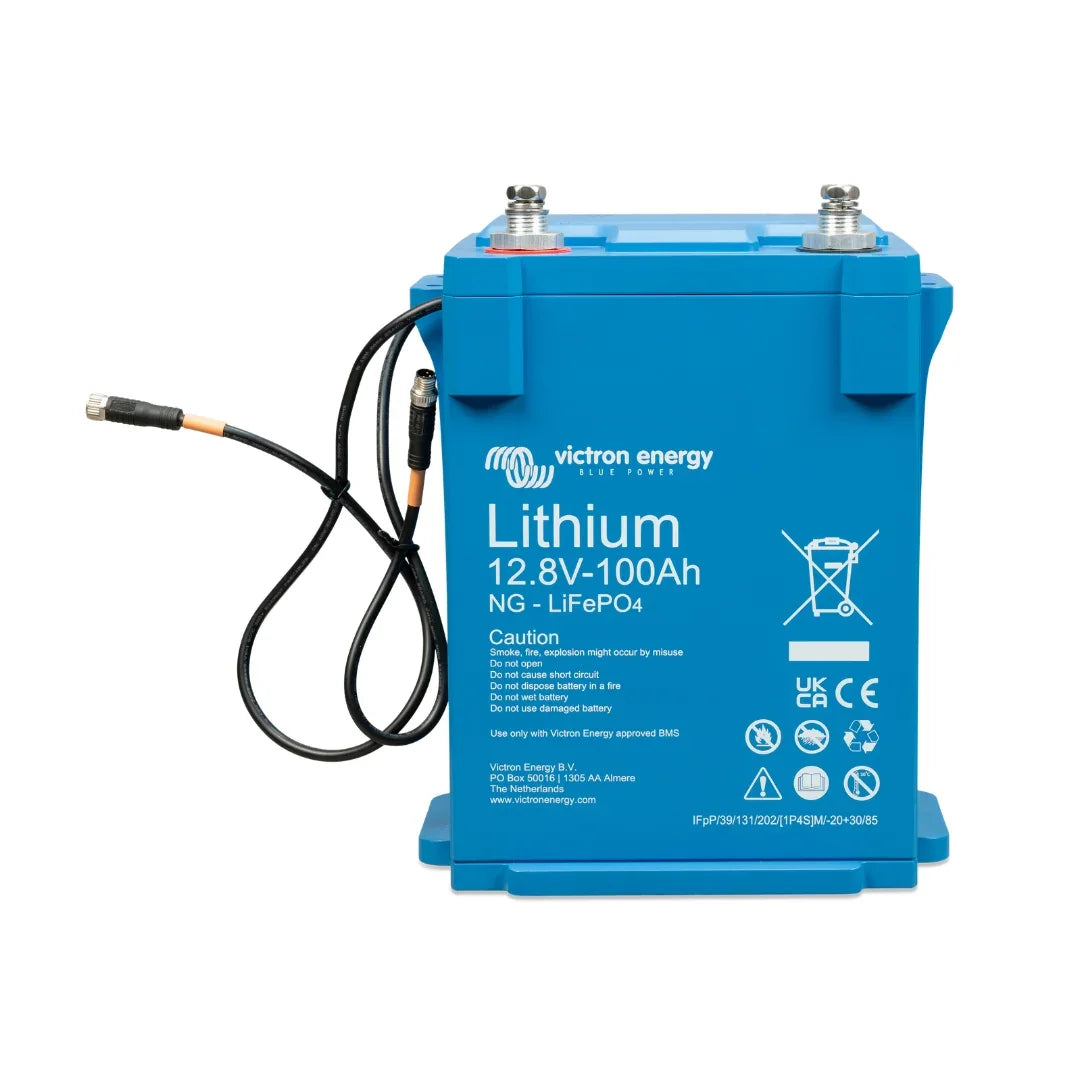

Victron Energy 12.8V 100Ah NG LiFePO4 Lithium Battery in blue casing with connectivity cable

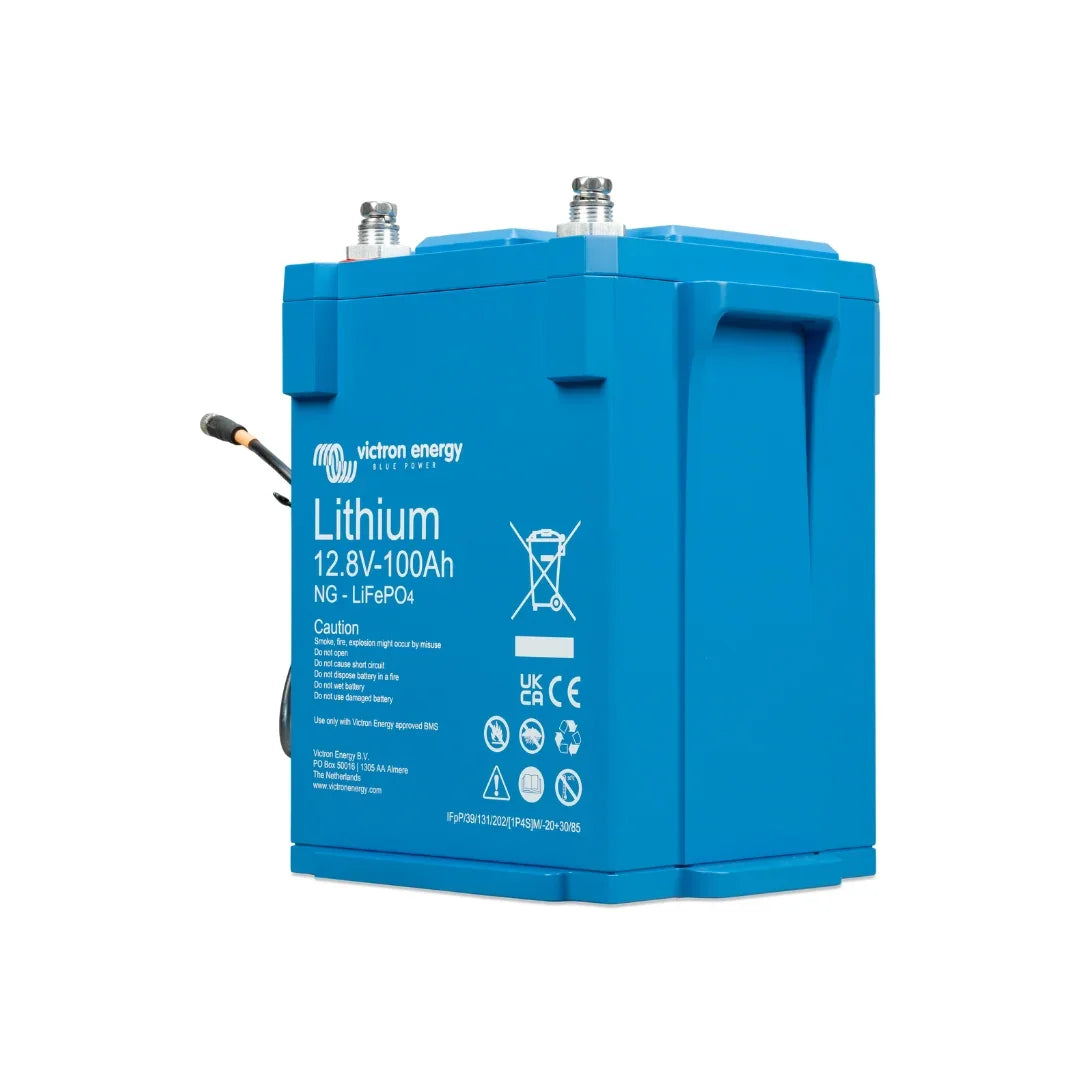

Victron Energy 12.8V 100Ah NG LiFePO4 Lithium Battery in a blue casing

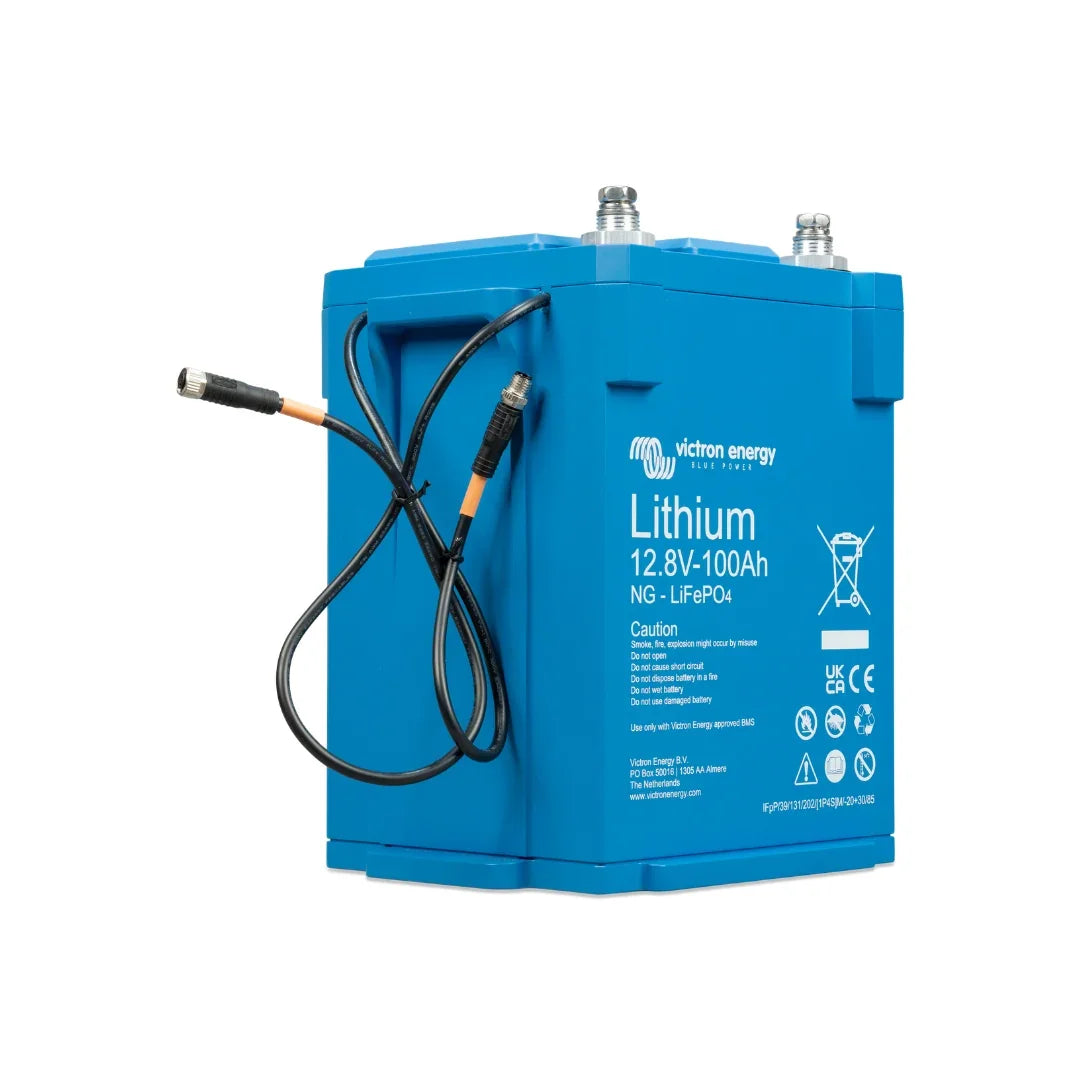

Victron Energy 12.8V 100Ah NG LiFePO4 Lithium Battery in blue casing with cables

Victron 12.8V 100Ah NG LiFePO4 Lithium Battery – BAT512110620

Name: Victron 12.8V 100Ah NG LiFePO4 Lithium Battery – BAT512110620
SKU: BAT512110620
Price: 426.22 GBP

£426.22

Tax included.

Product info

Changed your mind? Return your order within 30 days.

The Victron 12.8V 100Ah NG LiFePO4 battery provides 1,280Wh of nominal energy storage for campervans, motorhomes, and boats. It is an ideal lifepo4 12v 100ah solution for off-grid solar systems.

As part of the Lithium NG range, this battery combines integrated cell balancing with detailed monitoring via a compatible NG Battery Management System.

Its compact size is practical for limited spaces. The IP65-rated enclosure ensures protection against dust and water jets.

Please note: This battery requires a compatible external Victron NG Battery Management System (BMS), purchased separately. BMS units for the earlier Lithium Battery Smart range are not compatible.

Monitoring Your 100Ah NG LiFePO4

The battery measures cell voltages, temperatures, and current. It shares this data with your connected NG BMS.

Use VictronConnect via the BMS Bluetooth connection to view alarms and info on a smartphone or tablet. Bluetooth is provided by the BMS, not the battery.

Key Features

100Ah Capacity: Provides 1.28kWh of nominal energy storage at 25°C.
Integrated Cell Balancing: Helps maintain balanced cell voltages for longer life.
NG System Communication: Shares measurements with a compatible NG BMS for full protection.
Efficient Energy Storage: Offers a high 92% round-trip efficiency.
Expandable Battery Banks: Supports series and parallel configurations per Victron guidelines.
Flexible Installation: Includes mounting brackets. Install upright or on its side; terminals must never face downwards.

Technical Specifications

Specification	Details
Product code	BAT512110620
Battery range	Victron Lithium NG
Battery chemistry	Lithium iron phosphate — LiFePO4
Nominal voltage	12.8V
Nominal capacity at 25°C	100Ah
Nominal energy at 25°C	1,280Wh
Maximum continuous discharge current	100A
Maximum pulse discharge current	200A for 10 seconds
Maximum continuous charge current	100A
Charge voltage	14–14.2V
Float voltage	13.5V
Charging temperature range	+5°C to +50°C
Discharging temperature range	−20°C to +50°C
Terminal size	M8
Dimensions (H × W × D)	235 × 197 × 160mm
Protection rating	IP65

Choose a Compatible NG Battery Management System

An external NG BMS is essential to control charging and discharging. This protects your 100Ah NG LiFePO4 unit.

Nomadic Leisure offers several options:

Victron VE.Bus BMS NG — for systems with a Victron VE.Bus inverter or charger, like MultiPlus or Quattro.
Victron Lynx Smart BMS 500 NG M10 — combines management and monitoring for Lynx M10 systems.

The smallBMS NG is another great option for smaller systems using externally controlled chargers.

Contact Nomadic Leisure for help selecting the right NG BMS and charging equipment for your installation.

For further technical information, see the official Victron Lithium NG battery manual.
