Do I need to buy anything else to make the Victron 12.8V 150Ah NG LiFePO4 battery work?

Yes, this battery requires a compatible external Victron NG Battery Management System (BMS) to control charging and discharging, which is sold separately. Please note that BMS units from the older Lithium Battery Smart range are not compatible; you will need an NG-specific BMS such as the VE.Bus BMS NG, Lynx Smart BMS 500 NG M10, or the smallBMS NG.

How do I monitor the status of my 12.8V 150Ah NG LiFePO4 battery?

Monitoring is handled through the connected NG BMS rather than the battery itself. The battery shares cell voltages, temperatures, and current data with the BMS, and you can use the VictronConnect app via the BMS's Bluetooth connection to view alarms and battery information on your smartphone or tablet.

Can I install this battery on its side in my campervan or boat?

Yes, the battery is designed for flexible mounting and comes with mounting brackets. It can be installed either upright or on its side, as long as the terminals are never facing downwards.

Is the Victron 12.8V 150Ah NG LiFePO4 battery protected against water and dust?

Yes, this battery features an IP65-rated enclosure, which provides protection against dust and water jets, making it suitable for the demanding environments found in motorhomes, boats, and off-grid solar installations.

Can I add more batteries later to increase my power storage?

Yes, this battery supports both series and parallel configurations, allowing you to build expandable battery banks according to Victron’s installation guidelines.

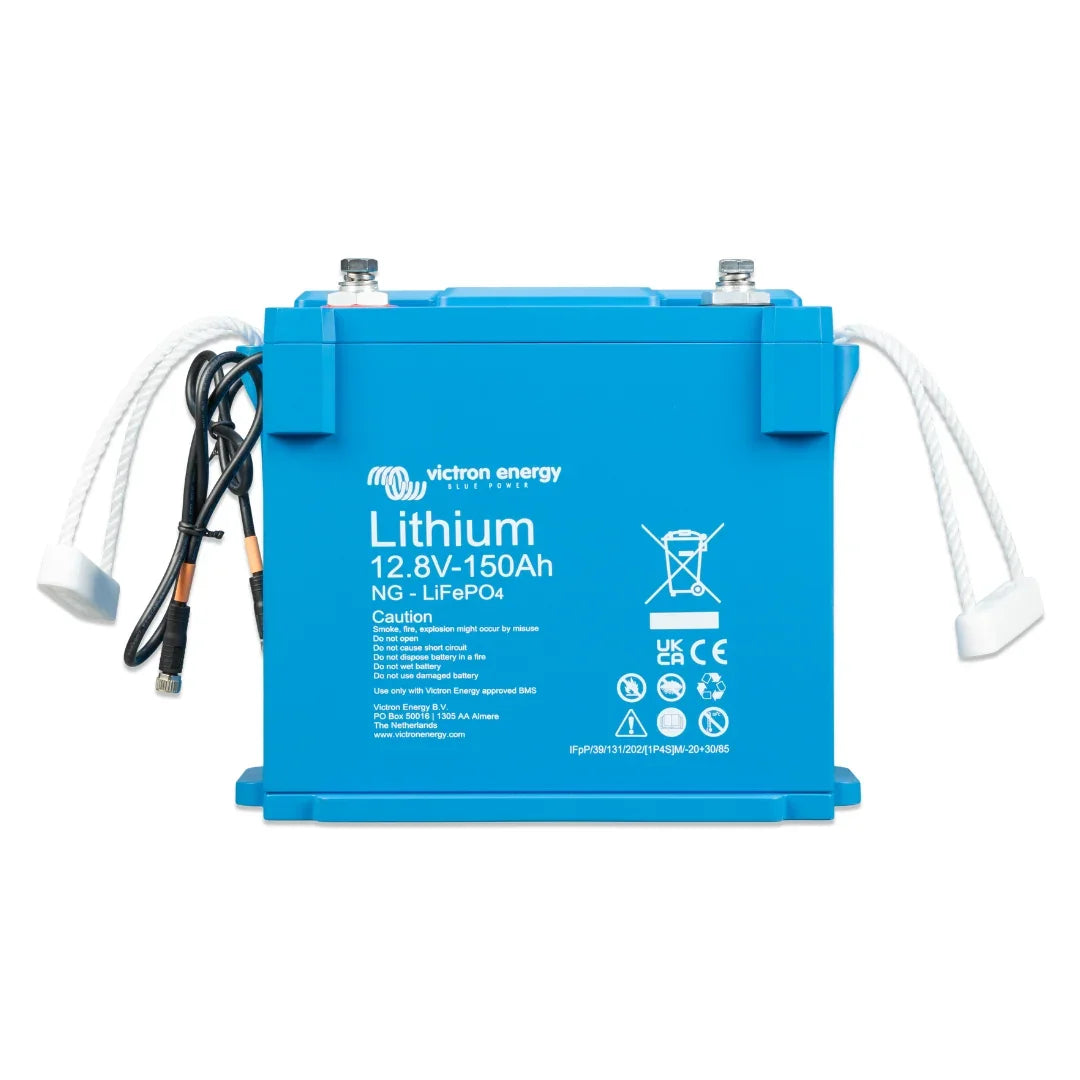

Victron Energy 12.8V 150Ah NG LiFePO4 Lithium Battery in a blue casing

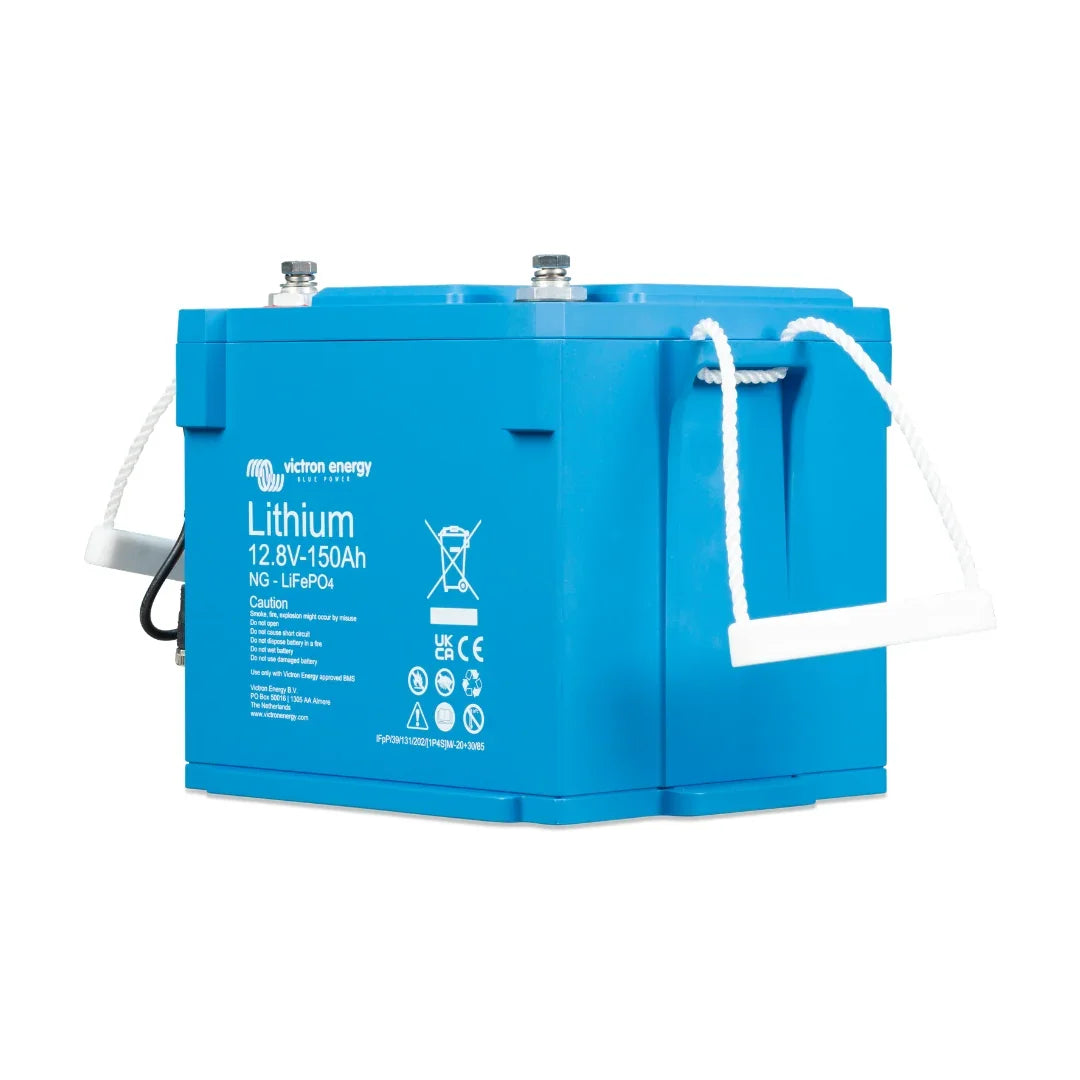

Victron Energy 12.8V 150Ah NG LiFePO4 Lithium Battery in a blue protective case

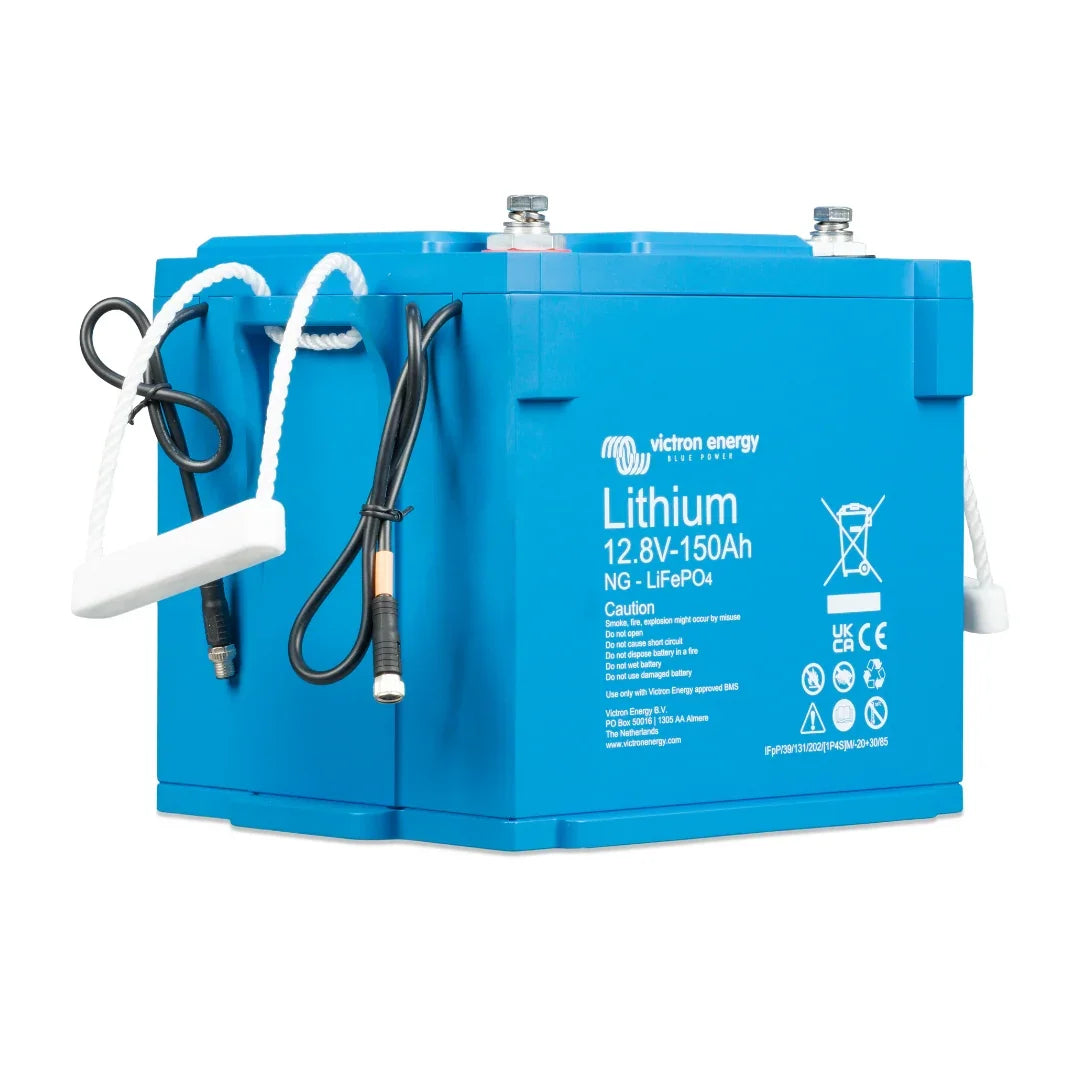

Victron Energy 12.8V 150Ah NG LiFePO4 lithium battery in a blue casing with a carrying handle

Victron 12.8V 150Ah NG LiFePO4 Lithium Battery – BAT512115620

Name: Victron 12.8V 150Ah NG LiFePO4 Lithium Battery – BAT512115620
SKU: BAT512115620
Price: 523.57 GBP

£523.57

Tax included.

Product info

Changed your mind? Return your order within 30 days.

The Victron 12.8V 150Ah NG LiFePO4 battery provides 1,920Wh of nominal energy storage. It is ideal for campervans, boats, and off-grid solar setups.

As part of the Victron NG range, it combines integrated cell balancing with precise monitoring via a compatible NG Battery Management System.

The 150Ah capacity balances storage and space. This makes it a reliable choice for leisure systems away from mains power.

Please note: This battery requires a compatible external Victron NG Battery Management System (BMS), sold separately.

BMS units designed for the earlier Lithium Battery Smart range are not compatible with this model.

Monitoring Your 12.8V 150Ah NG LiFePO4

The battery tracks cell voltages, temperatures, and current. It shares this data with your connected NG BMS.

Use VictronConnect via the BMS Bluetooth connection to view alarms and status on a smartphone or tablet.

Note that Bluetooth is provided by the BMS, as it is not built directly into the battery unit.

Key Features of this LiFePO4 150Ah Battery

150Ah Capacity:Provides 1.92kWh of nominal energy storage at 25°C.
Integrated Cell Balancing:Helps maintain consistent cell voltages for longevity.
NG System Communication:Shares data with an NG BMS for advanced protection.
Efficient Energy Storage:Offers an impressive 92% round-trip efficiency.
Expandable Battery Banks:Supports series and parallel setups per Victron guidelines.
IP65-Rated Enclosure:Provides strong protection against dust and water jets.
Flexible Mounting:Includes brackets for upright or side installation. Terminals must not face down.

Technical Specifications

Specification	Details
Product code	BAT512115620
Battery range	Victron Lithium NG
Battery chemistry	Lithium iron phosphate — LiFePO4
Nominal voltage	12.8V
Nominal capacity at 25°C	150Ah
Nominal energy at 25°C	1,920Wh
Maximum continuous discharge current	150A
Maximum pulse discharge current	300A for 10 seconds
Maximum continuous charge current	150A
Charge voltage	14–14.2V
Float voltage	13.5V
Charging temperature range	+5°C to +50°C
Discharging temperature range	−20°C to +50°C
Terminal size	M8
Dimensions (H × W × D)	205 × 250 × 205mm
Protection rating	IP65

Choose a Compatible NG Battery Management System

An external NG BMS is essential to control charging and discharging. Options from Nomadic Leisure include:

Victron VE.Bus BMS NG — for systems with a compatible VE.Bus inverter, like MultiPlus or Quattro.
Victron Lynx Smart BMS 500 NG M10 — integrates management and safety into a Lynx M10 system.

The smallBMS NG is also available for smaller systems with external chargers.

Contact Nomadic Leisure for help choosing the right NG BMS and protection for your installation.

For more technical details, see the official Victron Lithium NG battery manual.
