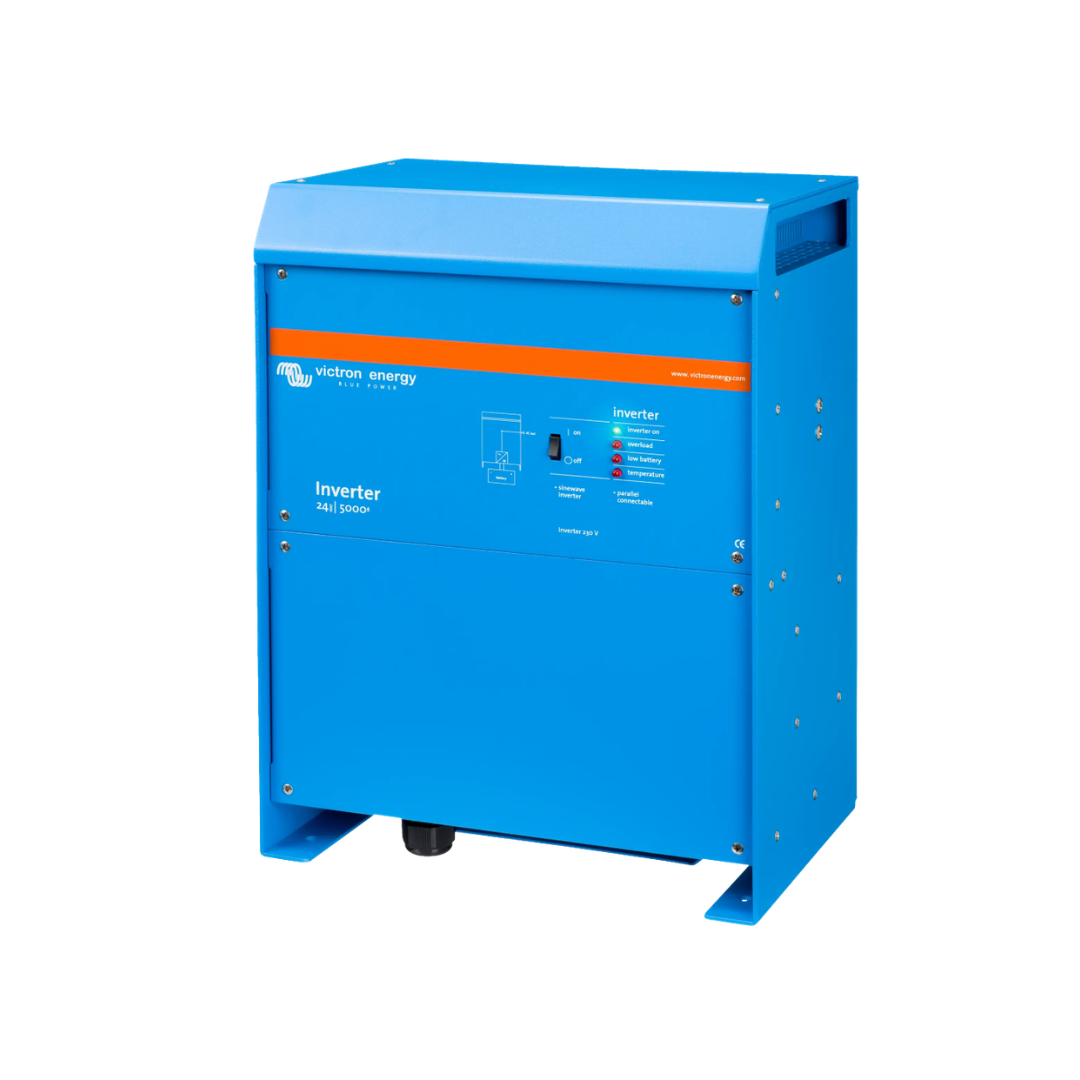

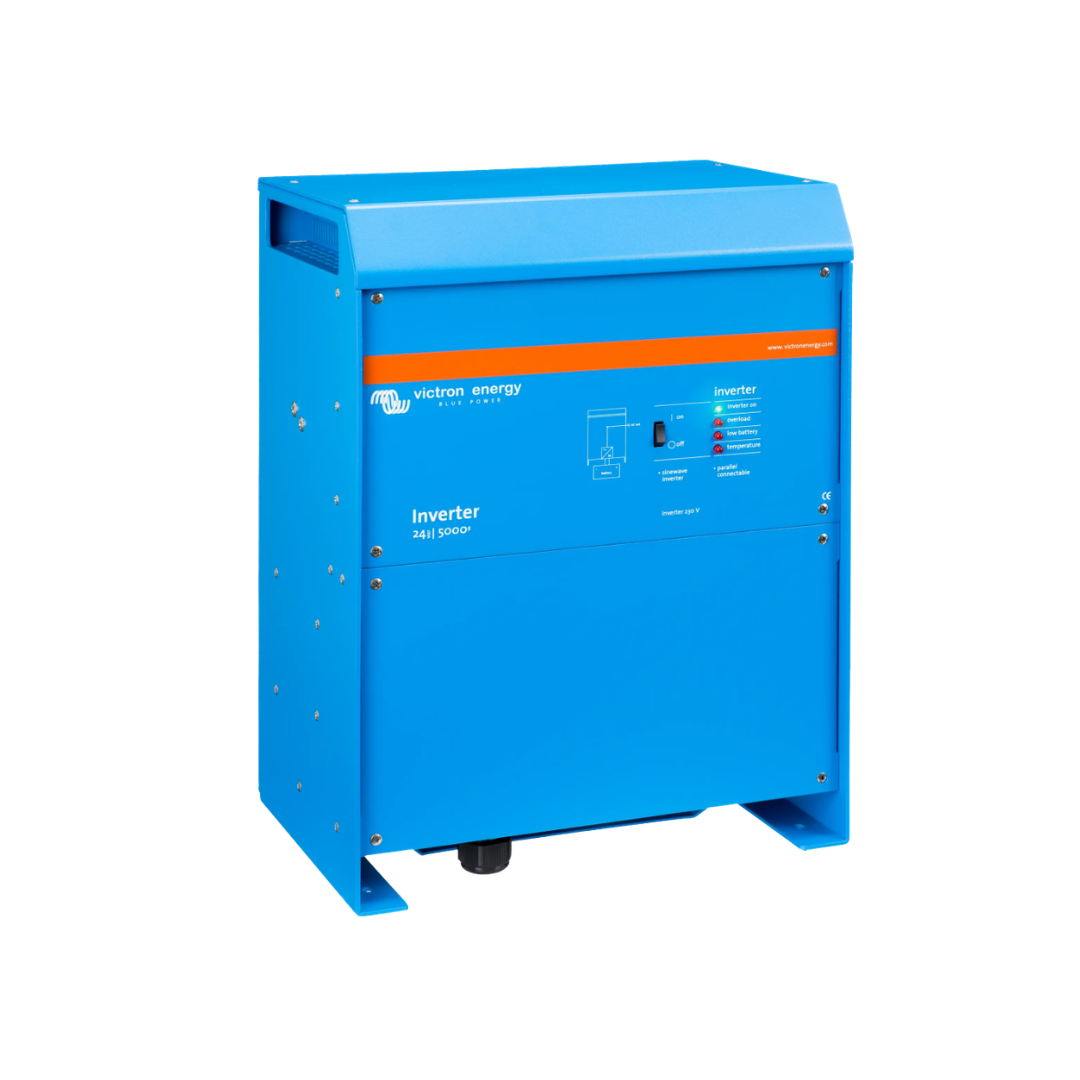

Victron Inverter 24/5000 230V VE.Bus (PIN245020000)

The Victron Inverter 24/5000 VE.Bus converts 24V DC battery power into reliable 230V AC electricity. Designed for larger campervan, marine and off-grid installations, this pure sine wave inverter delivers dependable power for demanding electrical appliances.

With a 5000VA power rating, SinusMax technology and VE.Bus connectivity, it combines powerful performance with flexible system integration.

Victron Inverter 24/5000 VE.Bus – Reliable High-Power Performance

This 24V pure sine wave inverter uses Victron's proven SinusMax technology to produce clean, stable AC electricity. Developed for professional applications, its design combines high efficiency with excellent start-up power.

The inverter can accommodate compatible equipment with demanding initial loads, including refrigeration compressors, electric motors and power tools.

VE.Bus connectivity allows integration with compatible Victron monitoring equipment. It also supports suitable parallel and three-phase configurations, providing flexibility for larger electrical installations.

Key Features

Pure Sine Wave Output: Delivers stable 230V AC electricity for compatible household appliances and sensitive electronics.

5000VA Power Rating: Provides 4000W continuous output at 25°C for demanding electrical loads.

High Peak Power: Delivers up to 10,000W peak power to accommodate compatible equipment with high start-up requirements.

SinusMax Technology: Combines efficient power conversion with excellent start-up capability and reliable performance.

VE.Bus Connectivity: Supports configuration, communication and integration with compatible Victron monitoring equipment.

Parallel Operation: Up to six compatible units can operate together to increase available output power.

Three-Phase Capability: Supports suitable three-phase installations using correctly configured compatible units.

High Efficiency: Offers up to 94% maximum efficiency, helping minimise unnecessary energy losses.

Configurable Settings: Allows adjustment of supported parameters, including output voltage, frequency and battery protection thresholds.

Built-In Protection: Includes protection against overload, short circuits, overheating and unsuitable battery voltage.

Specifications

Brand: Victron Energy

Model: Inverter 24/5000 230V VE.Bus

Nominal Battery Voltage: 24V DC

Input Voltage Range: 19–33V DC

AC Output Voltage: 230V AC

Continuous Power Rating: 5000VA / 4000W at 25°C

Continuous Output at 40°C: 3700W

Peak Power: 10,000W

Maximum Efficiency: 94%

Zero-Load Power: 30W

Output Frequency: 50Hz, configurable to 60Hz

Communication: VE.Bus

Protection Rating: IP21

Weight: 30kg

Dimensions (H × W × D): 444 × 328 × 240mm

What's Included?

One Victron Inverter 24/5000 230V VE.Bus.

Please Note

This inverter is designed for 24V battery systems. Check battery capacity, cable sizing and appliance power requirements before purchasing.

Parallel and three-phase installations require compatible units and appropriate VE.Bus configuration. Professional installation is recommended.

A compatible MK3-USB interface may be required for computer-based configuration.

This is an inverter only. It does not include a battery charger or automatic AC transfer switch.

For further technical information and installation guidance, refer to the official Victron inverter manual.
