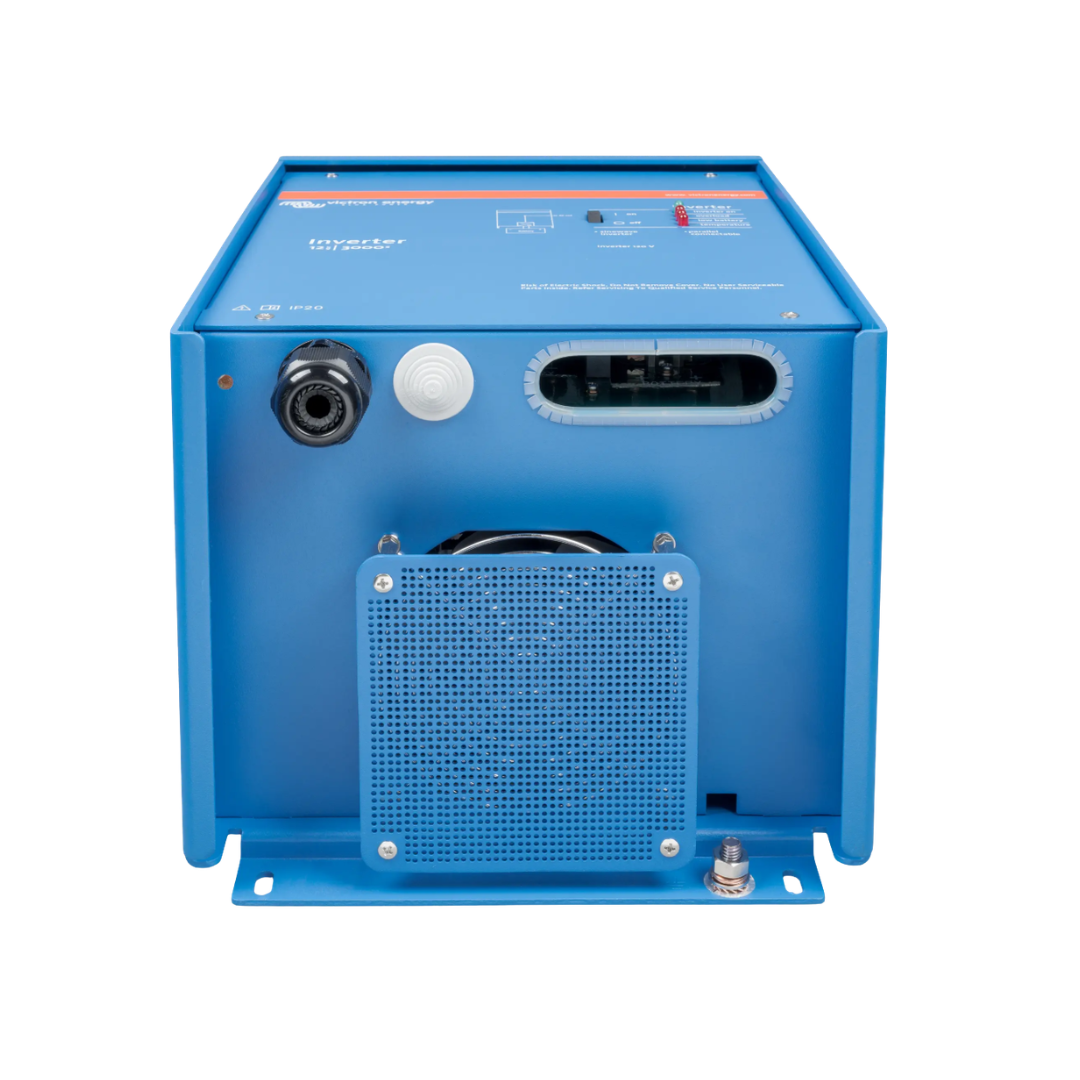

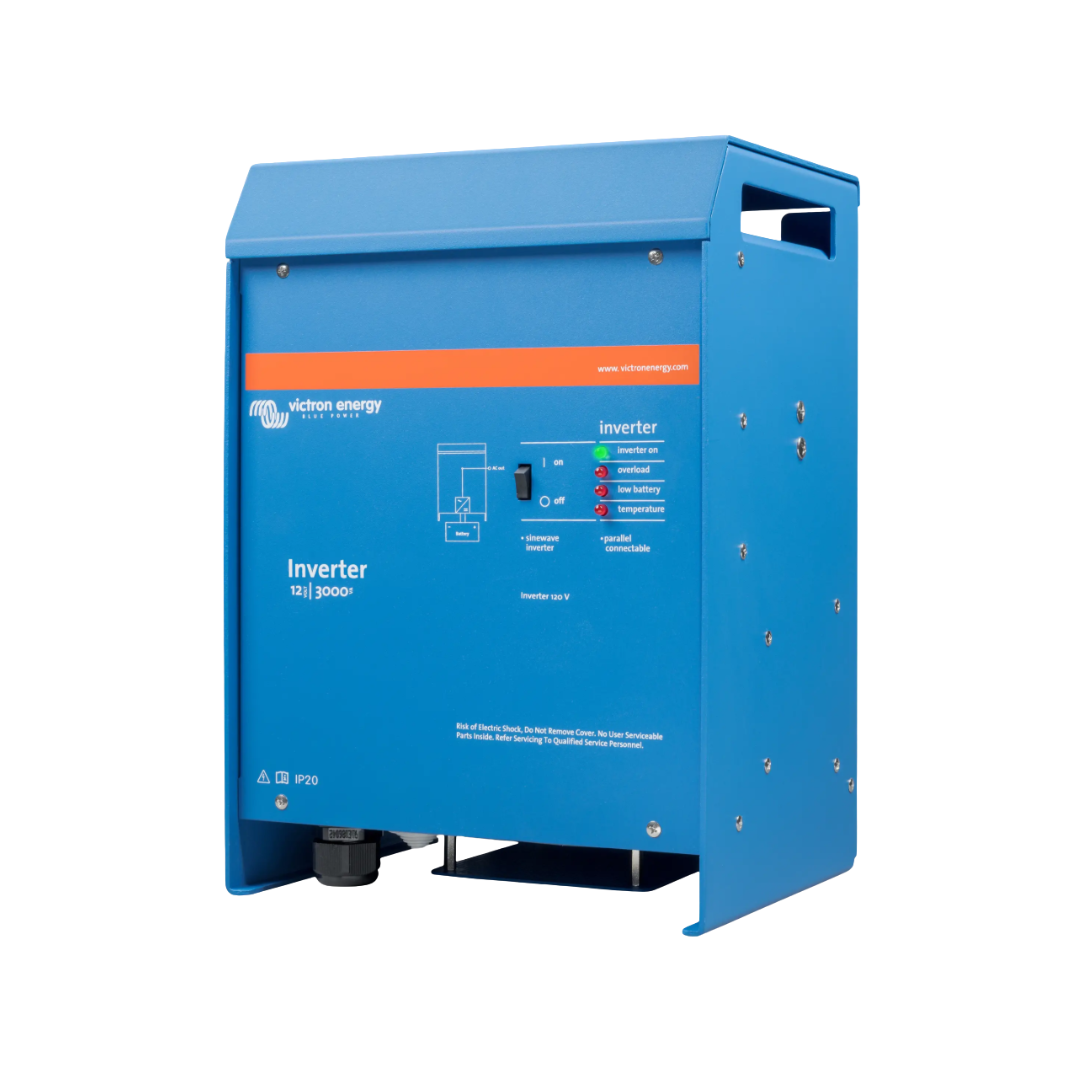

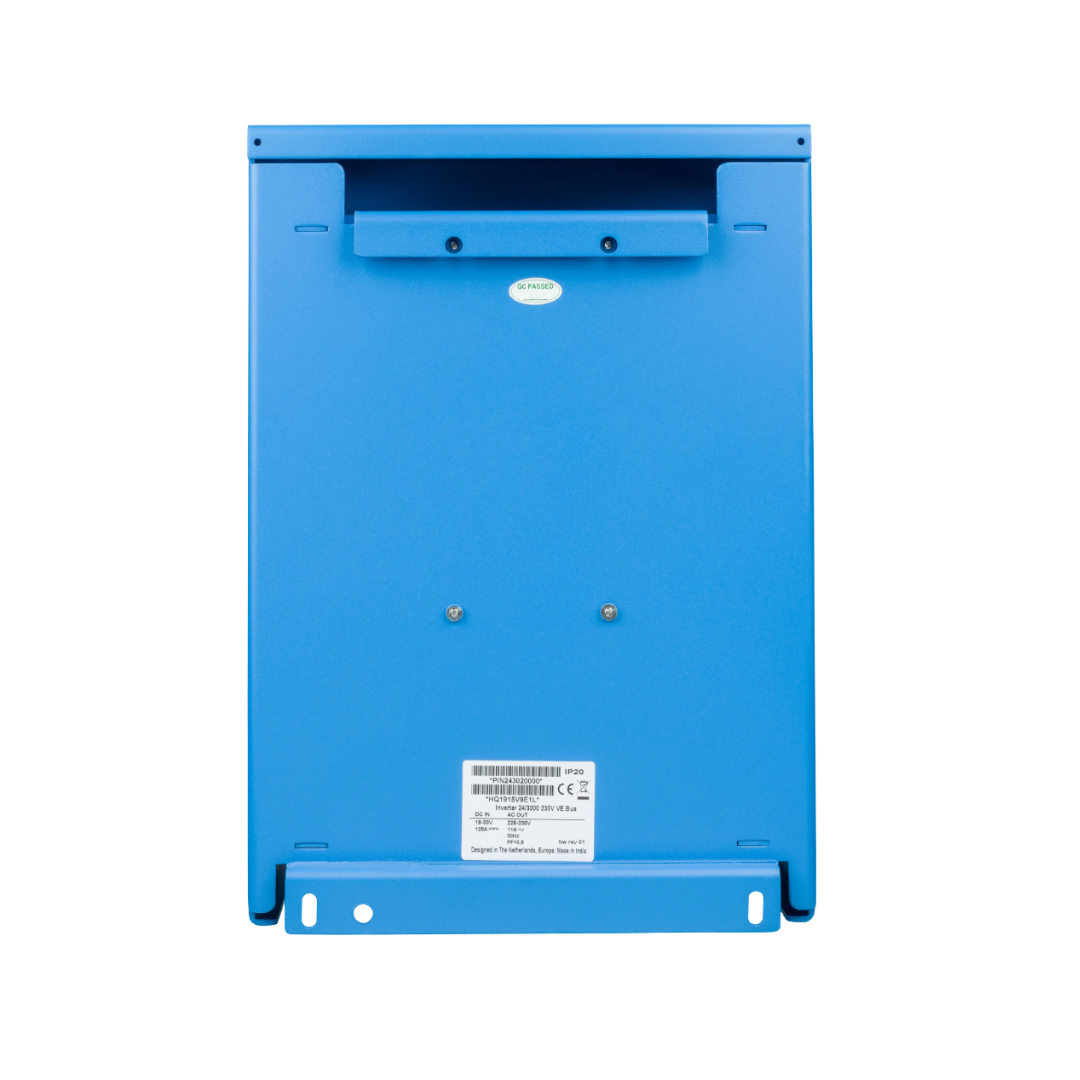

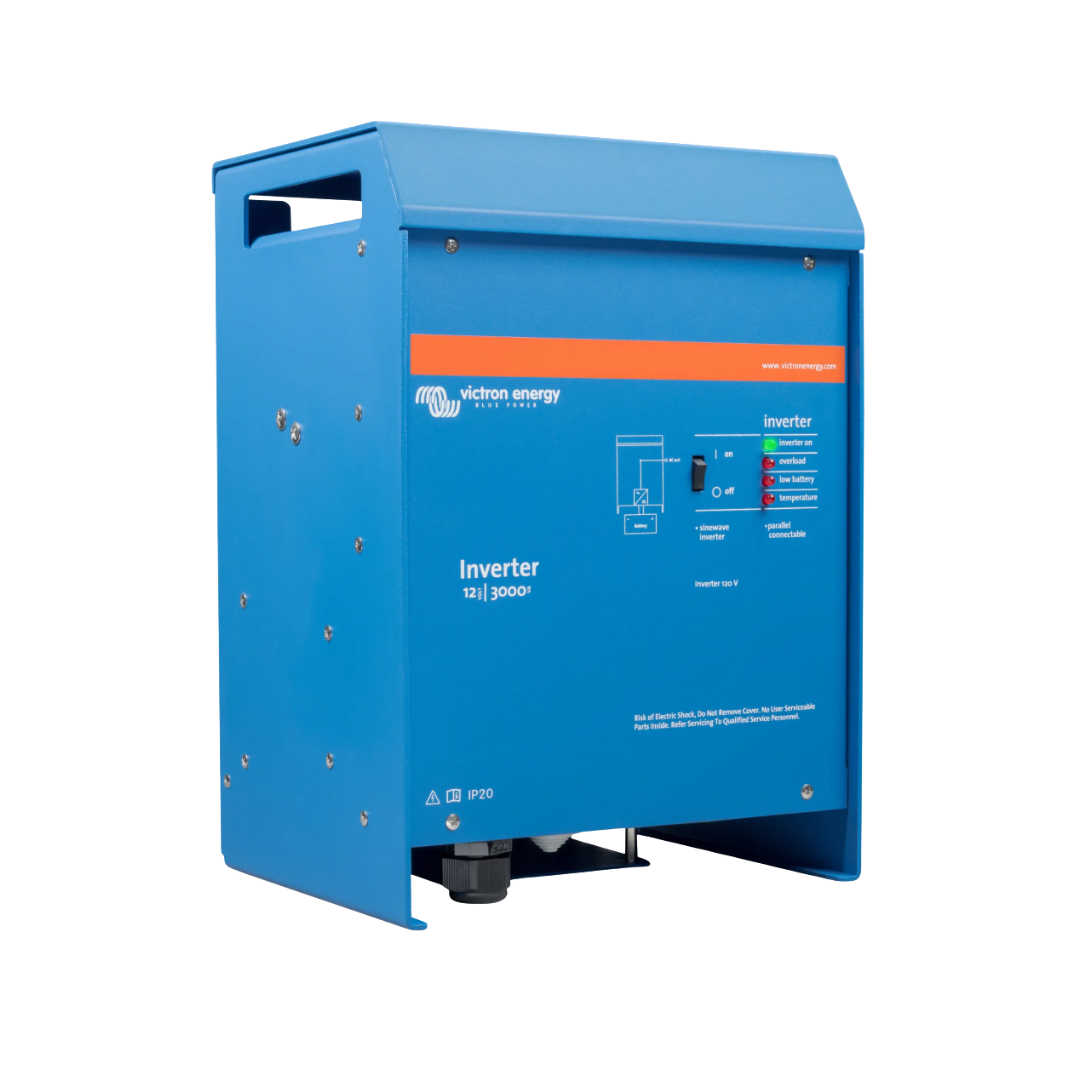

Victron Inverter 24/3000 120V VE.Bus (PIN243020100)

The Victron Inverter 24/3000 120V VE.Bus converts 24V DC battery power into reliable 120V AC electricity. Designed for marine, off-grid and specialist mobile installations, this pure sine wave inverter delivers dependable power for compatible electrical appliances.

With a 3000VA power rating, SinusMax technology and VE.Bus connectivity, it combines high start-up power with efficient operation and flexible system integration.

Victron Inverter 24/3000 120V VE.Bus – Reliable Off-Grid Power

This 24V pure sine wave inverter uses Victron's proven SinusMax technology to produce clean, stable AC electricity. Developed for professional applications, its hybrid high-frequency design combines efficient power conversion with excellent start-up capability.

The inverter can accommodate compatible equipment with demanding initial loads, including refrigeration compressors, electric motors and power tools. This makes it suitable for electrical installations where reliable performance is essential.

VE.Bus connectivity allows configuration and integration with compatible Victron monitoring equipment. It also supports suitable parallel, split-phase and three-phase configurations for larger electrical systems.

Key Features

Pure Sine Wave Output: Delivers stable 120V AC electricity for compatible appliances and sensitive electronic equipment.

3000VA Power Rating: Provides dependable power for demanding electrical loads in suitable off-grid installations.

SinusMax Technology: Combines efficient power conversion with high start-up capability and reliable operation.

High Peak Power: Helps accommodate compatible equipment requiring additional power when starting.

VE.Bus Connectivity: Supports configuration, communication and integration with compatible Victron monitoring equipment.

Parallel Operation: Up to six compatible units can operate together to increase available output power.

Split-Phase Capability: Supports suitable split-phase installations using correctly configured compatible equipment.

Three-Phase Capability: Allows integration into suitable three-phase systems with compatible units.

High Efficiency: Designed to minimise energy losses when converting stored battery power into AC electricity.

Configurable Settings: Allows adjustment of supported parameters, including output voltage, frequency and battery protection thresholds.

Built-In Protection: Includes protection against overload, short circuits and excessive temperature.

Specifications

Brand: Victron Energy

Model: Inverter 24/3000 120V VE.Bus

Nominal Battery Voltage: 24V DC

AC Output Voltage: 120V AC

Continuous Power Rating: 3000VA

Output Waveform: Pure sine wave

Inverter Technology: SinusMax

Communication: VE.Bus

Nominal Output Frequency: 60Hz

Configuration: Compatible VE.Bus interface and software

Monitoring: Compatible Victron GX devices

What's Included?

One Victron 24/3000 120V VE.Bus inverter.

Please Note

This model produces 120V AC, not the standard UK 230V supply. It is intended for compatible 120V equipment and electrical installations.

The inverter requires a suitable 24V battery system. Check battery capacity, cable sizing and appliance requirements before purchasing.

Parallel, split-phase and three-phase installations require compatible equipment and appropriate VE.Bus configuration.

A compatible MK3-USB interface may be required for computer-based configuration.

This is an inverter only. It does not include a battery charger or automatic AC transfer switch.

For further technical information and installation guidance, visit the official Victron Energy website.
