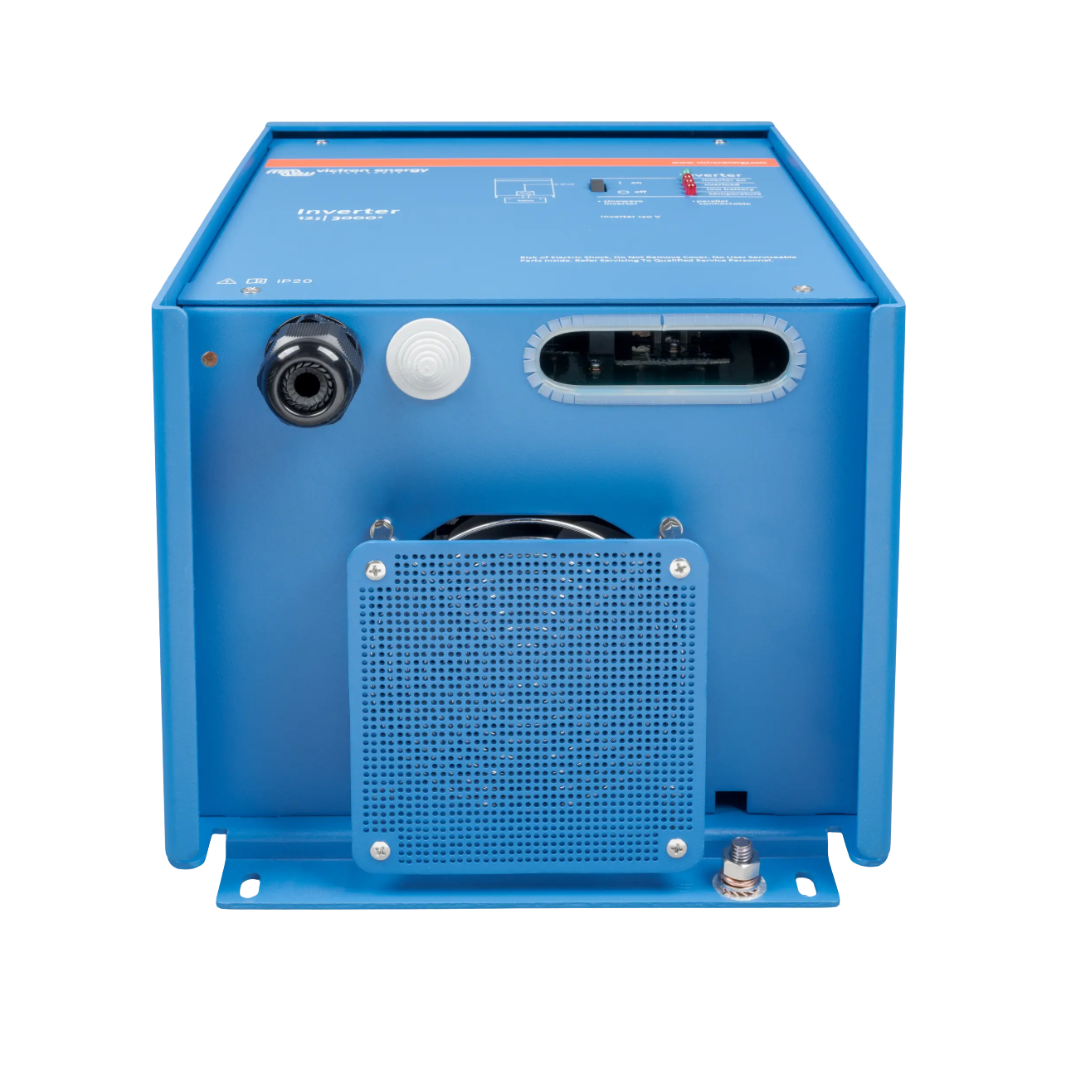

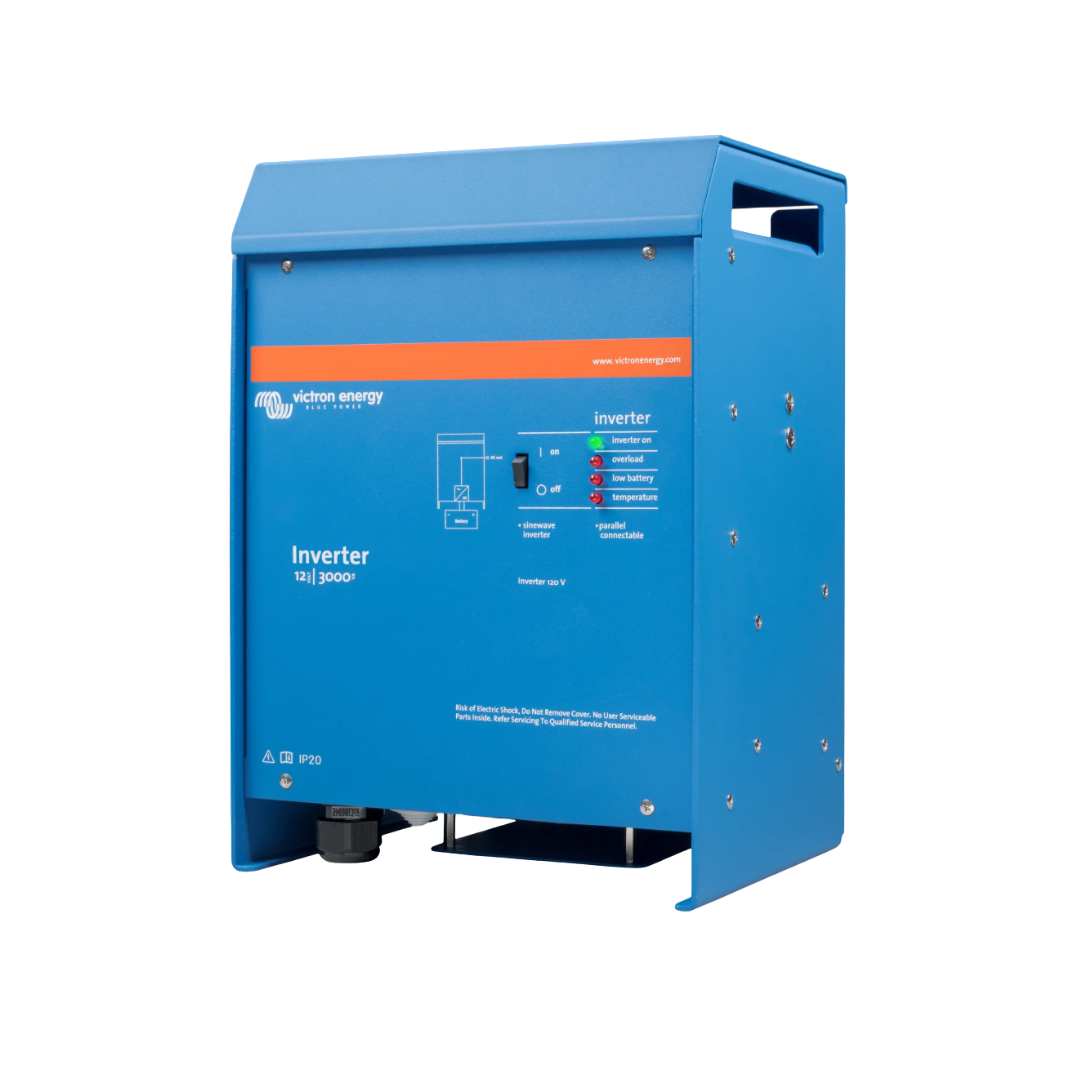

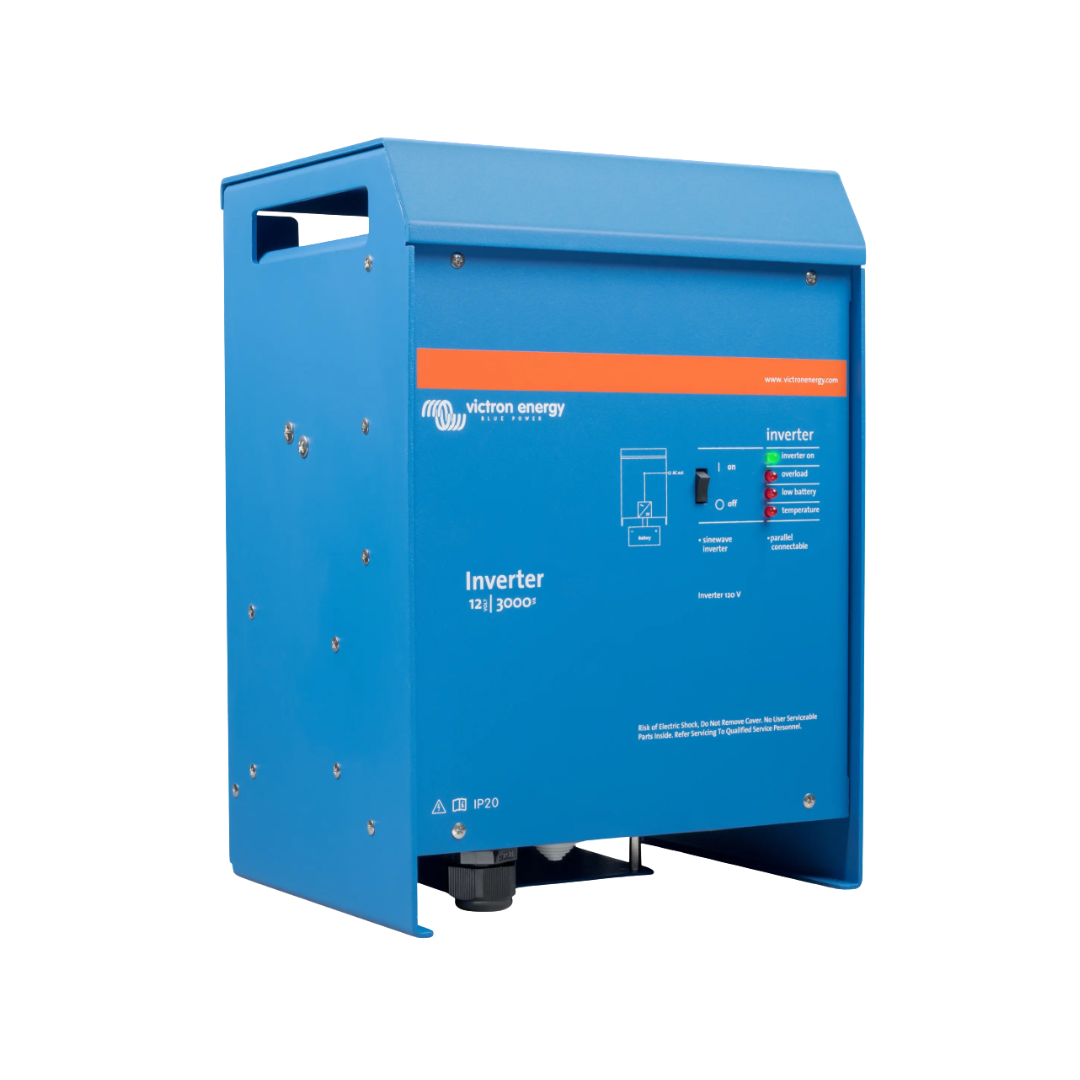

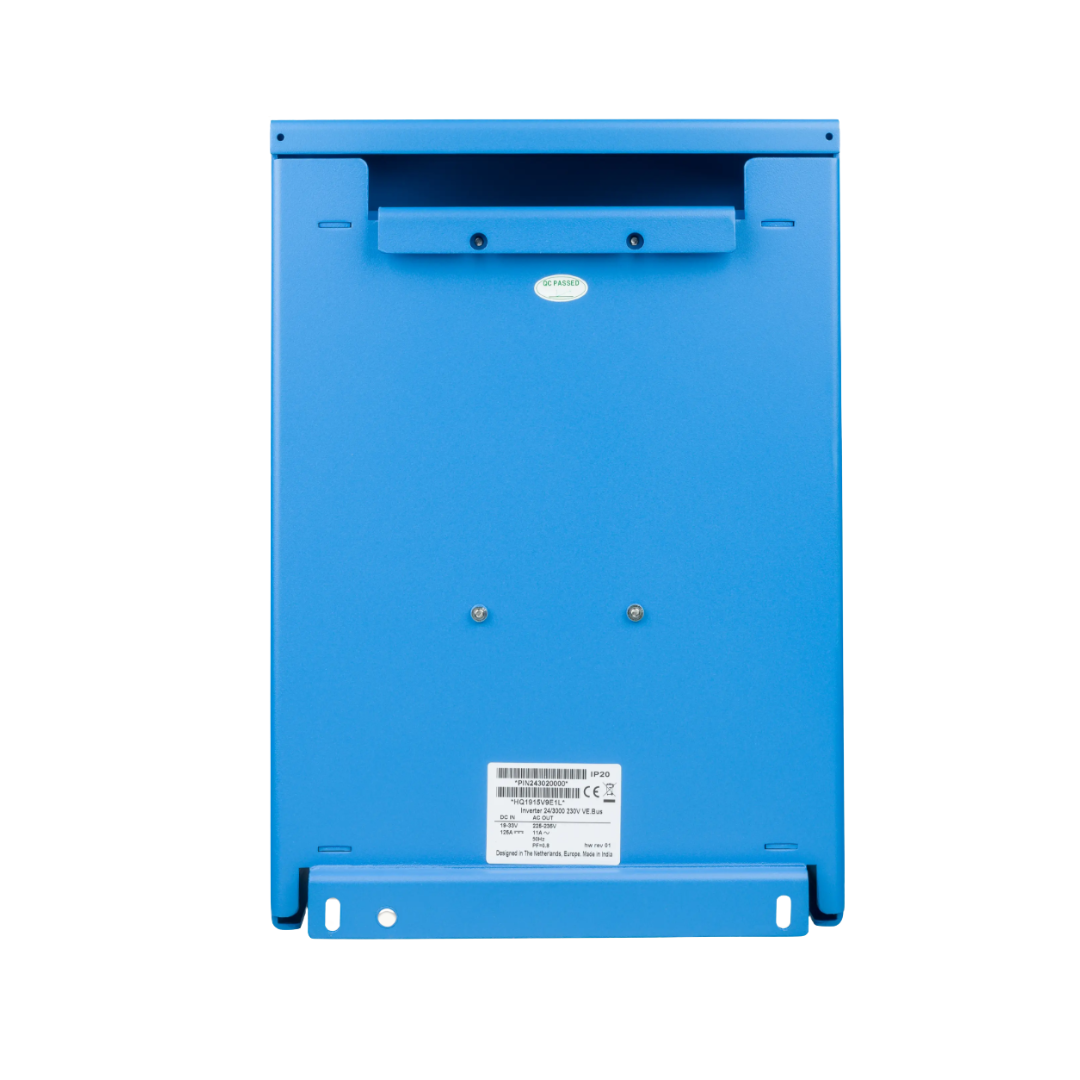

Victron Inverter 12/3000 230V VE.Bus (PIN123020000)

The Victron Inverter 12/3000 VE.Bus converts 12V DC battery power into reliable 230V AC electricity. Designed for campervans, motorhomes, boats and off-grid installations, this pure sine wave inverter provides dependable power for a wide range of electrical appliances.

With a 3000VA power rating, SinusMax technology and VE.Bus connectivity, it combines high start-up power with efficient operation and flexible system integration.

Victron Inverter 12/3000 VE.Bus – Reliable Off-Grid Power

This 12V pure sine wave inverter uses Victron's proven SinusMax technology to produce clean, stable AC electricity. Developed for professional applications, its hybrid high-frequency design combines efficient power conversion with excellent start-up capability.

The inverter can accommodate compatible equipment with demanding initial loads, including refrigeration compressors, electric motors and power tools. This makes it suitable for electrical installations where reliable performance is essential.

VE.Bus connectivity allows configuration and integration with compatible Victron monitoring equipment. It also supports suitable parallel and three-phase configurations, providing flexibility for larger off-grid electrical installations.

Key Features

Pure Sine Wave Output: Delivers clean, stable 230V AC electricity for compatible appliances and sensitive electronic equipment.

3000VA Power Rating: Provides dependable power for demanding electrical loads in mobile and off-grid installations.

SinusMax Technology: Combines efficient power conversion with high start-up capability and reliable operation.

High Peak Power: Helps accommodate compatible equipment requiring additional power when starting.

VE.Bus Connectivity: Supports configuration, communication and integration with compatible Victron monitoring equipment.

Parallel Operation: Up to six compatible units can operate together to increase available output power.

Three-Phase Capability: Supports suitable three-phase installations using correctly configured compatible units.

High Efficiency: Designed to minimise energy losses when converting stored battery power into AC electricity.

Configurable Settings: Allows adjustment of supported parameters, including output voltage, frequency and battery protection thresholds.

GX Device Compatibility: Can be integrated with compatible Victron GX devices for system monitoring and control.

Built-In Protection: Includes protection against overload, short circuits and excessive temperature.

Specifications

Brand: Victron Energy

Model: Inverter 12/3000 230V VE.Bus

Nominal Battery Voltage: 12V DC

AC Output Voltage: 230V AC

Continuous Power Rating: 3000VA

Output Waveform: Pure sine wave

Inverter Technology: SinusMax

Communication: VE.Bus

Configuration: Compatible VE.Bus interface and software

Monitoring: Compatible Victron GX devices

What's Included?

One Victron Inverter 12/3000 230V VE.Bus.

Please Note

This inverter is designed for 12V battery systems. Check battery capacity, cable sizing and appliance power requirements before purchasing.

Parallel and three-phase installations require compatible units and appropriate VE.Bus configuration.

A compatible MK3-USB interface may be required for computer-based configuration.

This is an inverter only. It does not include a battery charger or automatic AC transfer switch.

For further technical information and installation guidance, visit the official Victron Energy website.
