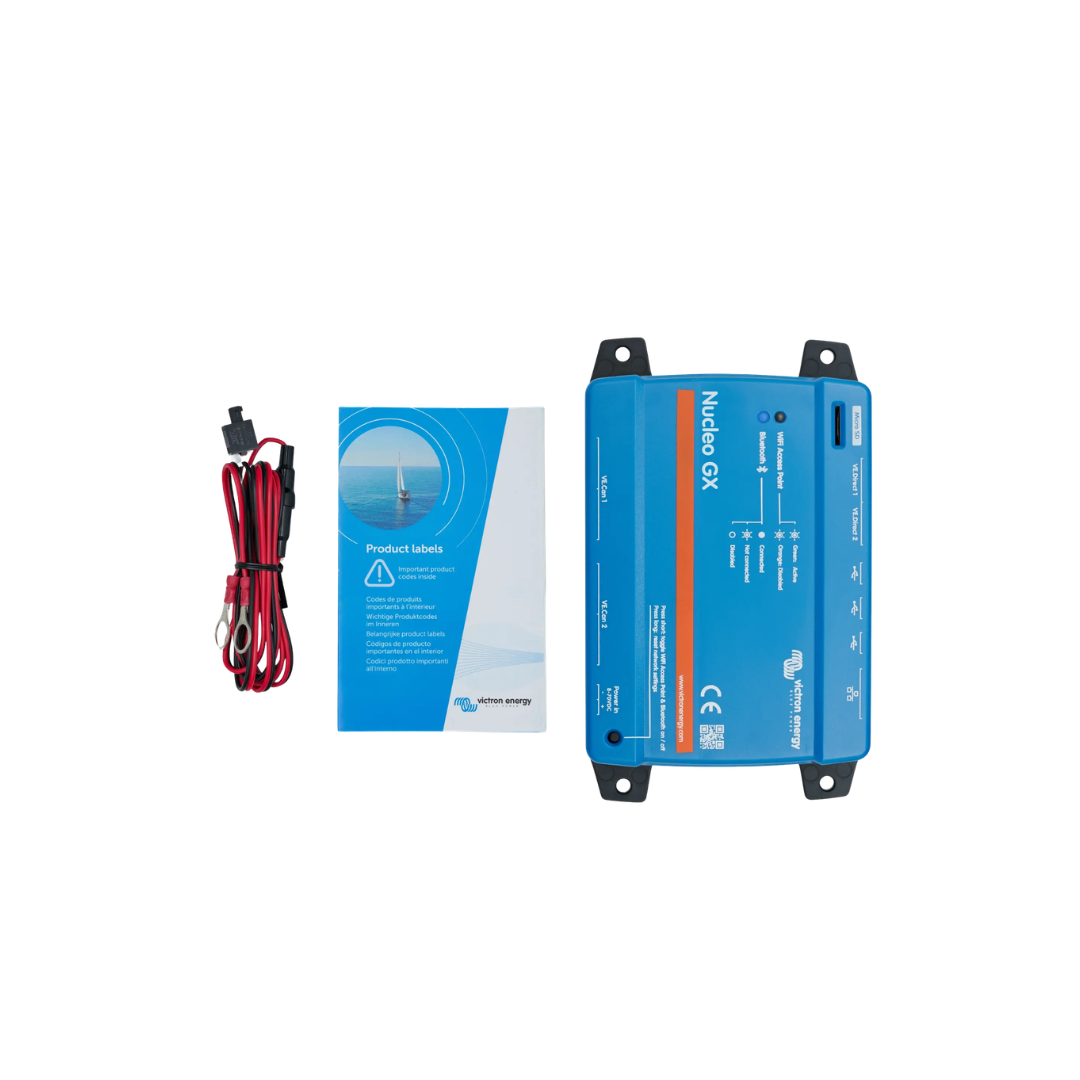

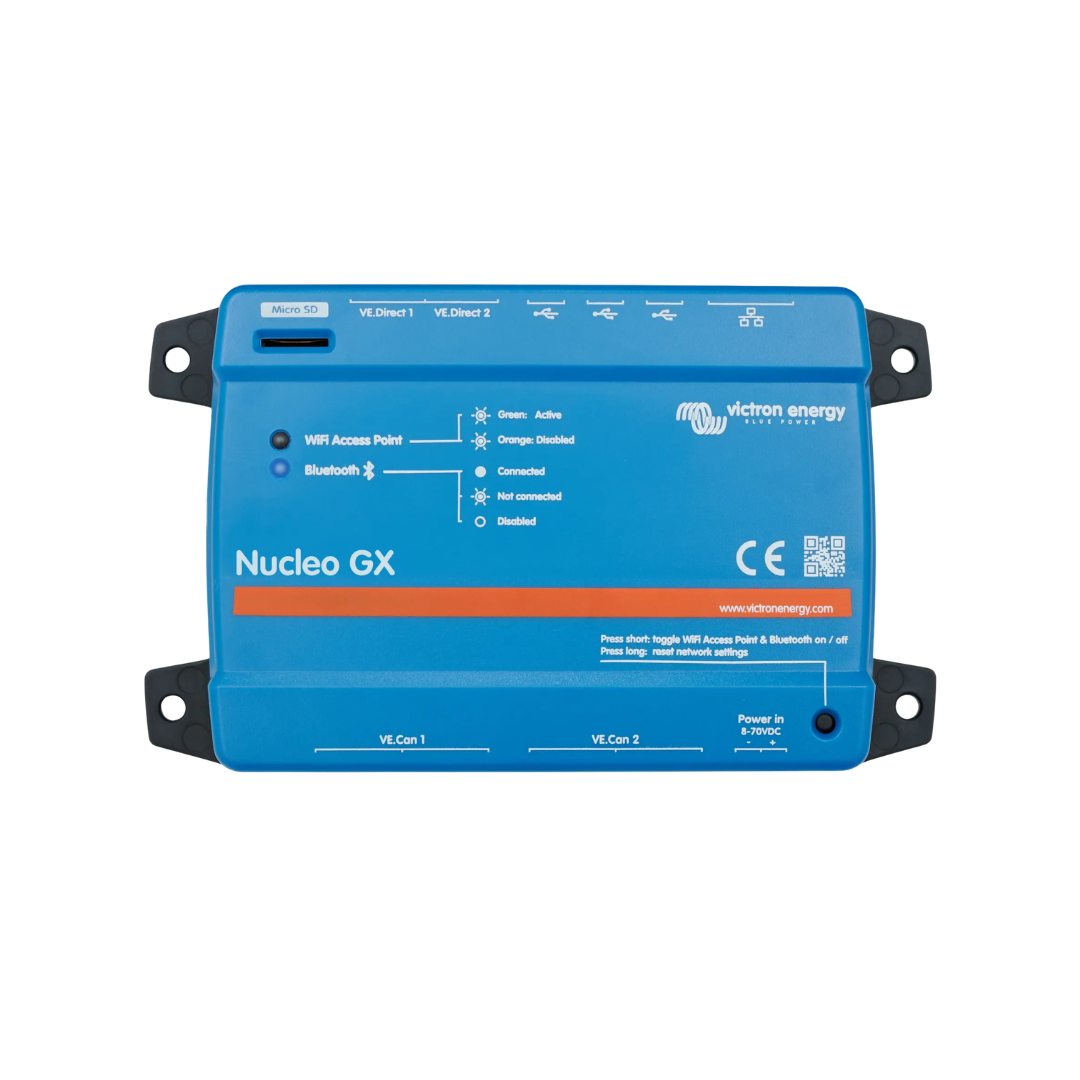

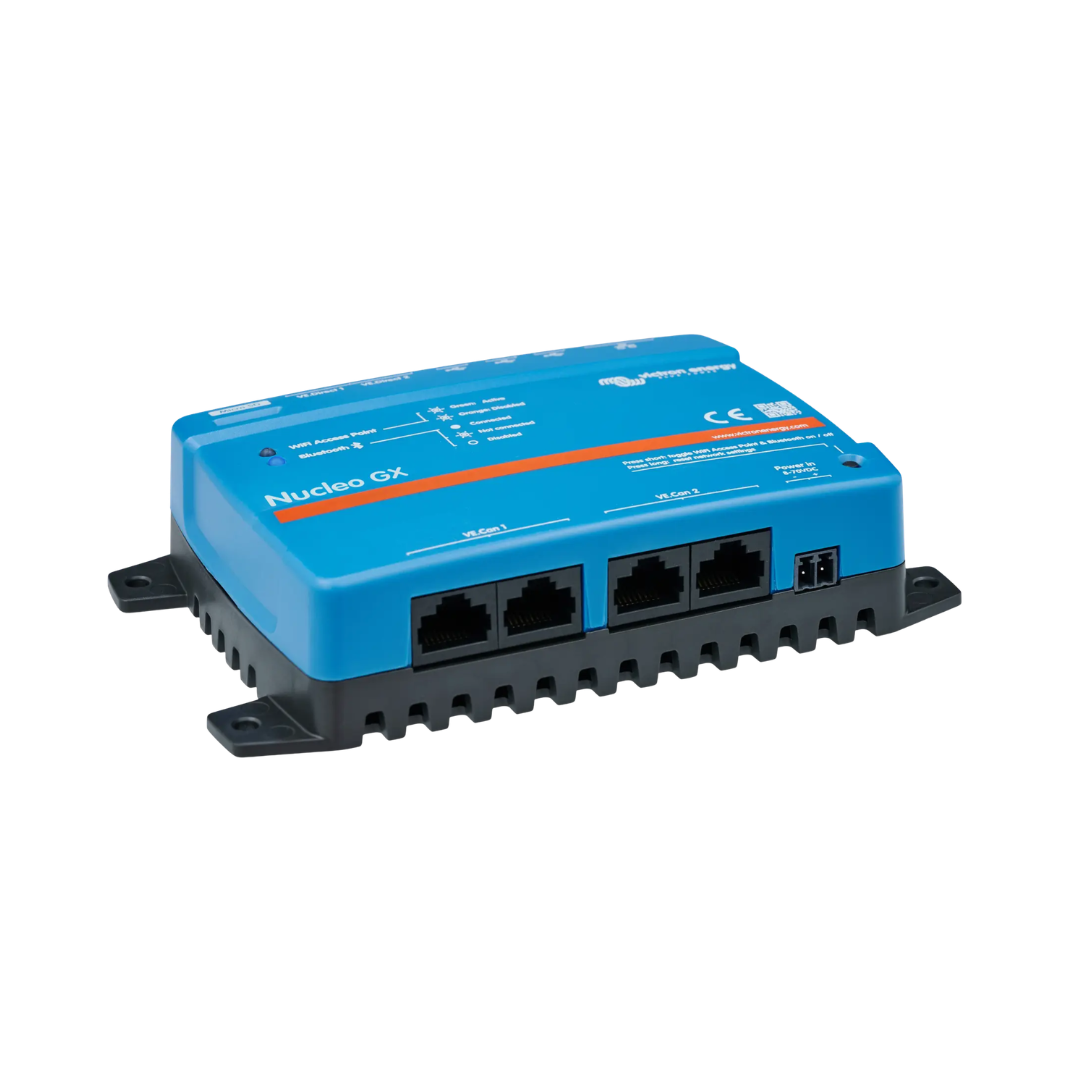

Victron Energy Nucleo GX

The Victron Energy Nucleo GX is a compact, high-performance communication centre designed for monitoring and controlling compatible Victron Energy systems. Offering Ekrano GX-level processing speed with a more focused range of connections, it provides core GX functionality at a lower cost.

Powered by a quad-core processor, the Nucleo GX brings information from your connected system together in one place, allowing you to monitor battery status, power consumption and energy coming from solar, mains or a generator in real time.

Built-in Ethernet, WiFi and Bluetooth provide flexible connectivity, while remote access through the Victron Remote Management (VRM) Portal allows you to monitor and manage your system from virtually anywhere. Remote Console can also be accessed through VRM, and setup is available through the VictronConnect app.

For connecting Victron equipment, the Nucleo GX features two VE.Direct ports, two VE.Can ports and three USB ports. Up to 25 devices can be connected through VE.Direct and USB, with additional devices supported through VE.Can.

The Nucleo GX is particularly well suited to ESS and off-grid installations built around Victron's Multi RS range, providing powerful GX monitoring and control without the additional interfaces found on higher-end GX devices.

Please Note: The Nucleo GX does not have a built-in VE.Bus port, HDMI output for a GX Touch display, tank inputs, temperature inputs, digital inputs or relays. Additional functionality can be added using compatible USB accessories where required.

Key Features

• Compact Victron GX communication centre
• Quad-core processor for fast system performance
• Real-time battery, power consumption and energy monitoring
• Remote monitoring and control through the VRM Portal
• Remote Console access
• Bluetooth setup through VictronConnect
• Built-in WiFi and Ethernet connectivity
• 2 × VE.Direct ports
• 2 × VE.Can ports
• 3 × USB ports
• Micro SD card slot
• Supports up to 25 connected devices through VE.Direct and USB
• Additional devices can be connected through VE.Can
• Automated generator start/stop functionality
• System alerts and diagnostics
• Suitable for wall or DIN35 rail mounting
• Ideal for Multi RS-based ESS and off-grid systems

Specifications

• Brand: Victron Energy
• Product: Nucleo GX
• Product Type: GX Communication Centre
• Processor: Quad-Core
• VE.Direct Ports: 2
• VE.Can Ports: 2
• USB Ports: 3
• Ethernet: Yes
• WiFi: Yes
• Bluetooth: Yes
• Micro SD Card Slot: Yes
• Remote Monitoring: Victron VRM Portal
• Remote Console: Yes
• VictronConnect Support: Yes
• Mounting: Wall or DIN35 Rail
• VE.Bus Port: No
• GX Touch HDMI Port: No
