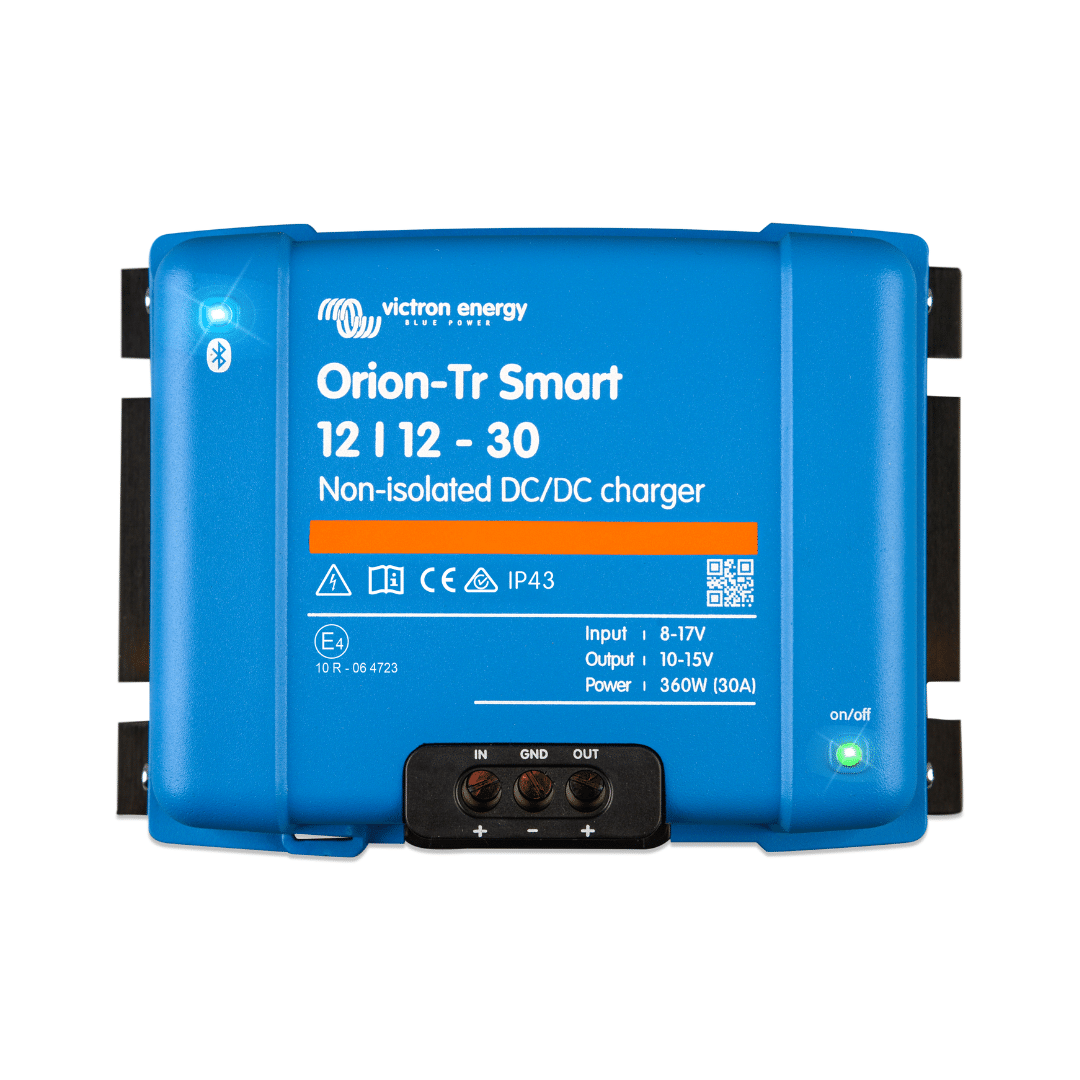

Victron Orion-Tr Smart 12/12 30 Non-Isolated DC-DC Charger
Product info
Product info
Couldn't load pickup availability
Charge your 12V leisure battery safely and efficiently while driving with the Victron Orion-Tr Smart 12/12-30A Non-Isolated DC-DC Charger. Also known as a battery-to-battery or B2B charger, it delivers controlled charging from a vehicle’s starter battery and alternator to a separate leisure battery.
Designed for 12V-to-12V dual-battery installations, the Orion-Tr Smart is compatible with both conventional and smart alternators, including those commonly fitted to Euro 5 and Euro 6 vehicles. Built-in engine-running detection activates charging when appropriate and helps protect the starter battery from unwanted discharge.
Bluetooth is built in, allowing you to configure the charger, select a battery profile and check its operating status through the VictronConnect app—no separate Bluetooth dongle is required.
The programmable three-stage charging process uses bulk, absorption and float stages to support both lead-acid and lithium batteries. The unit can also operate as an adjustable DC power supply, while multiple chargers may be connected in parallel when greater output is required.
As a non-isolated charger, the input and output share a common negative connection. This makes it a practical choice for many campervan, motorhome and vehicle installations where galvanic isolation is not required.
Key features
- 12V-to-12V battery-to-battery charging
- 30A continuous output at 40°C
- Suitable for smart and conventional alternators
- Built-in engine-running detection
- Integrated Bluetooth connectivity
- No separate Bluetooth dongle required
- Configure through the VictronConnect app
- Adaptive bulk, absorption and float charging
- Compatible with lead-acid and lithium batteries
- Adjustable DC power-supply mode
- Remote on/off connection
- Short-circuit and over-temperature protection
- Parallel operation supported for increased output
- Screw terminals for straightforward installation
- Ideal for campervans, motorhomes and commercial vehicles
Technical specifications
| Specification | Rating |
|---|---|
| Product code | ORI121236140 |
| Charger type | Non-isolated |
| Input voltage range | 8–17V DC |
| Nominal output voltage | 12.2V |
| Adjustable output range | 10–15V |
| Continuous output current at 40°C | 30A |
| Maximum output current for 10 seconds | 40A |
| Continuous output power at 40°C | 360W |
| Continuous output power at 25°C | 430W |
| Maximum efficiency | 87% |
| Standby current | Less than 1mA |
| Maximum cable size | 16mm² |
| DC connections | Screw terminals |
| Operating temperature | −20°C to +55°C |
| Electronics protection rating | IP43* |
| Connection-area protection rating | IP22 |
| Dimensions | 130 × 186 × 80mm |
| Weight | 1.8kg |
*IP43 protection applies when the charger is installed with its screw terminals facing downwards.
This is a non-isolated charger with a shared negative connection between the starter and leisure battery systems. Choose an isolated model where electrical separation is required. Correct cable sizes and external fuses must be selected for the installation. Specifications verified against the official Victron Orion-Tr Smart non-isolated datasheet.
Delivery & Returns
Delivery & Returns
🚚 Fast Dispatch: Order by 2pm and we’ll aim to ship your order the same day, Monday to Friday.
🇬🇧 UK Delivery: DPD, Parcelforce, or Royal Mail
📦 30-Day Returns: Unused items in original packaging
💬 Need Help? info@nomadicleisure.co.uk
All payments are processed securely using trusted providers. Your card details are never stored or shared - we use encrypted systems to keep every transaction safe.
Excellent service and product and a great price

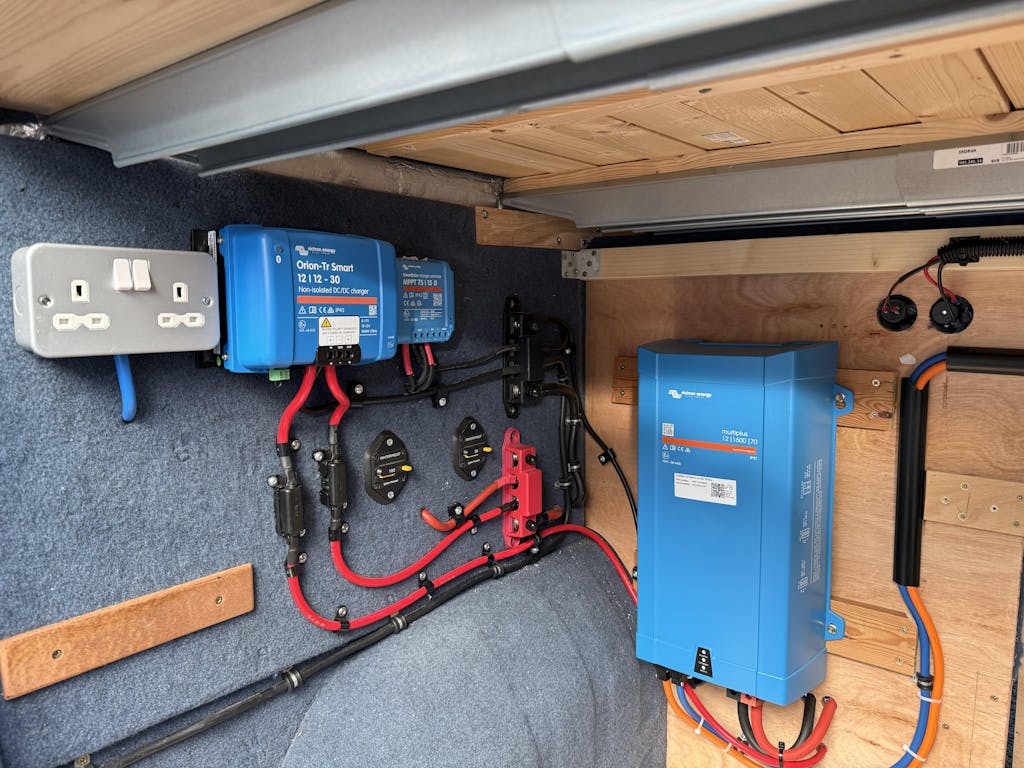

Since fitting this item (and setting it up correctly after first flattening my starter battery!) I have not noticed it in the slightest - which is exactly how it should be! It just gets on with the job of keeping my leisure battery topped up without fuss or interference of any sort. Top product and a great company to deal with.
