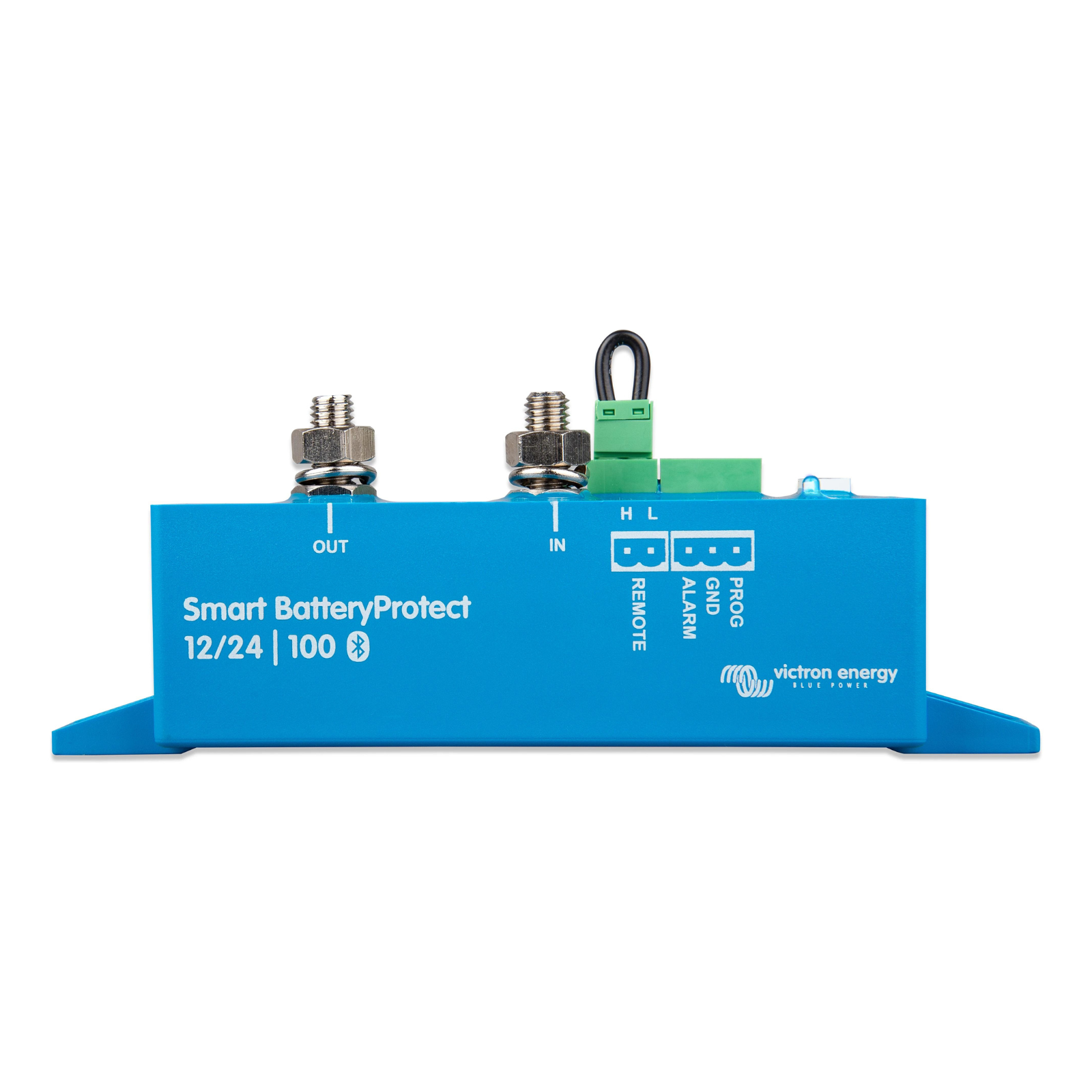

Victron Energy BatteryProtect 12/24V-100A

Victron Energy BatteryProtect 12/24V-100A

Discover a new level of battery management and control with the Victron Energy BatteryProtect 12/24V-100A. Engineered to safeguard your battery from excessive discharge, this smart device doubles as a system on/off switch, ensuring optimal performance and longevity. Ideal for off-grid, marine and campervan battery protection applications.

Key Benefits of the Victron Energy Smart BatteryProtect 12/24V-100A:

• Smart Battery Management: Disconnects non-essential loads before the battery is completely discharged or lacks sufficient charge to start the engine. Functions as a system on/off switch through the on/off input.
• Voltage Flexibility: Self-regulating at 12/24V, automatically detecting system voltage with precision.
• Bluetooth Programming: Effortlessly define activation/deactivation levels via Bluetooth, providing seamless customisation. Alternatively, use the programming pin to set one of the nine activation/deactivation levels.
• Li-Ion Battery Compatibility: Specially configured mode for Li-Ion batteries, controllable by the VE.Bus BMS. Can be utilised as a charge switch between a battery charger and a Li-ion battery.
• Efficient Power Consumption: The BatteryProtect 12/24V-100A has Ultra-low current consumption, and is particularly beneficial for Li-Ion batteries, especially after a low voltage disconnection.
• Overvoltage Protection: Disconnects load when DC voltage exceeds 16.3V or 32.6V to prevent damage to sensitive loads.
• Reliable and Spark-Free Operation: Utilises MOSFET switches instead of relays, ensuring a spark-free operation and enhanced safety.
• Delayed Alarms and Load Actions: Activates alarm output after 12 seconds of battery voltage drop below the preset trip level. Delays load disconnection and reconnection for optimal performance during engine starts.

Invest in the Victron Energy BatteryProtect 12/24V-100A as your campervan battery protector, for intelligent battery management, enhanced safety, and seamless customisation. Elevate your power control experience today! See Victron Energy´s full range here.
