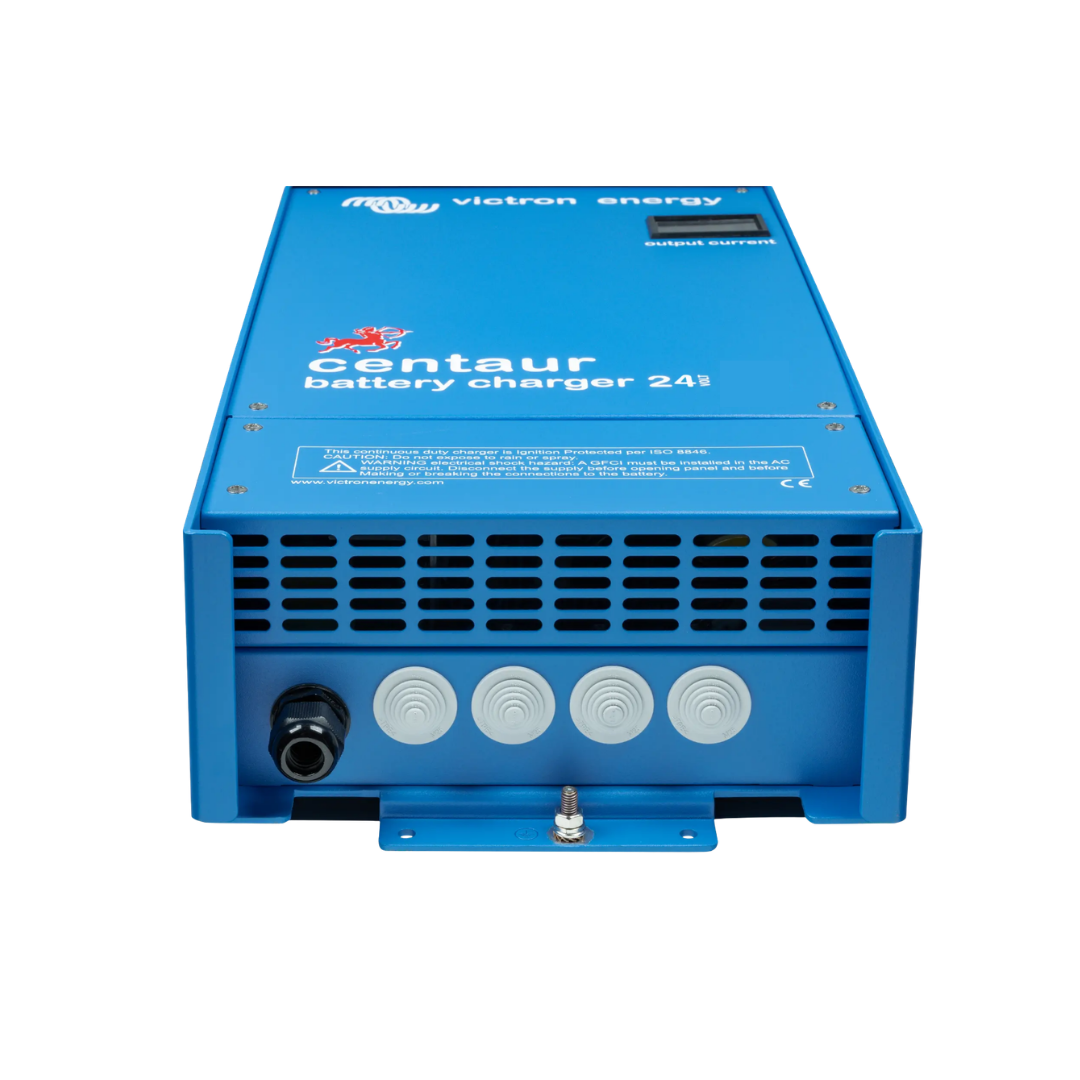

Victron Centaur Charger 24/60(3) 120-240V (CCH024060000)

The Victron Centaur Charger 24V 60A is a robust battery charger designed for demanding 24V systems with multiple battery banks. It combines a powerful 60A charging output with three isolated outputs and automatic three-stage charging.

Its wide input range allows operation from 90–265V AC at either 50Hz or 60Hz. This makes the Centaur suitable for marine, vehicle and off-grid installations where mains supplies can vary.

Victron Centaur Charger 24V 60A

The Centaur is built for demanding environments. Its aluminium epoxy powder-coated casing, drip shield and stainless steel fixings provide durability in conditions involving heat, humidity and salt air.

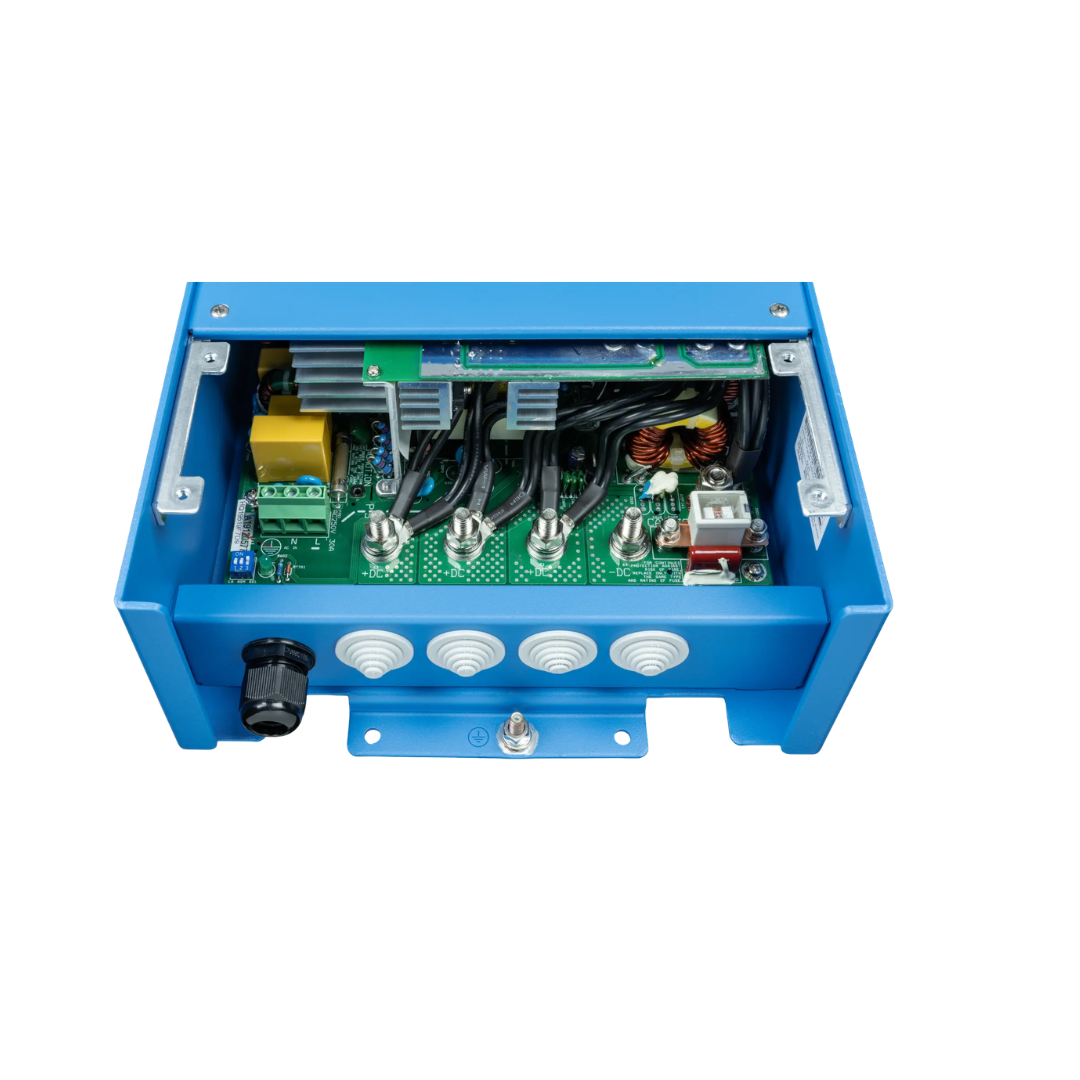

Internal circuit boards feature an acrylic coating for additional corrosion resistance. Temperature monitoring also helps protect internal components under demanding operating conditions.

Key Features

• Battery Voltage: 24V

• Rated Charging Current: 60A

• Number of Outputs: 3 isolated outputs

• Charging: Automatic three-stage charging

• AC Input Range: 90–265V AC

• Frequency: 50/60Hz

• DC Input Range: 90–400V DC

• Internal temperature compensation

• Battery type selection via DIP switch

• Suitable for Flooded Lead-Acid, Gel and AGM batteries

• Aluminium epoxy powder-coated casing

• Corrosion-resistant circuit board coating

• Part Number: CCH024060000

Three Isolated Battery Outputs

This three output battery charger can simultaneously charge up to three battery banks. Each isolated output is capable of supplying the charger's full rated current.

The total available charging current remains 60A and is distributed between the connected battery banks as required.

This arrangement is useful for boats and other installations with separate starter, service or auxiliary battery banks.

Automatic Three-Stage Charging

The 24V 60A battery charger uses an automatic three-stage charging characteristic to manage battery charging and maintenance.

The charger operates at the bulk rate before progressing through its charging cycle and eventually switching to float. This provides automatic battery charging without requiring regular manual adjustment.

An internal temperature sensor compensates the charging voltage according to temperature. A DIP switch allows suitable charge and float voltages to be selected for Flooded Lead-Acid, Gel or AGM batteries.

Wide Input Voltage Range

The Victron battery charger operates across a 90–265V AC input range without requiring manual adjustment. Both 50Hz and 60Hz mains supplies are supported.

The charger can also accept a 90–400V DC supply, providing additional flexibility for specialist electrical installations.

Built for Demanding Installations

With its durable construction and three isolated charging outputs, the Centaur is particularly well suited as a marine battery charger.

It is also suitable for commercial vehicles and off-grid systems requiring dependable charging for multiple 24V battery banks.
