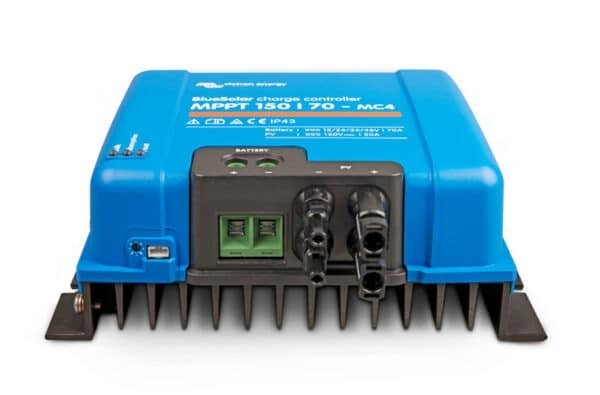

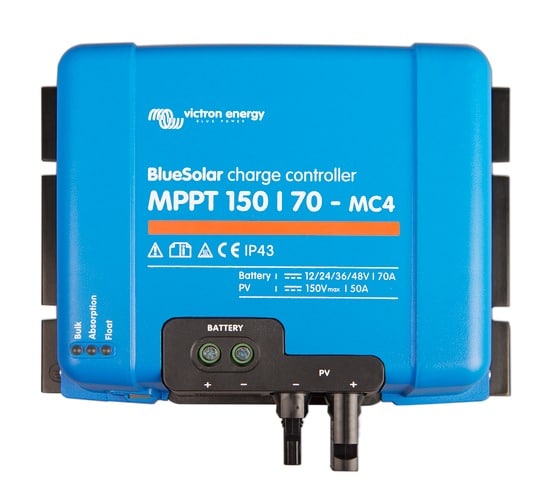

Victron BlueSolar MPPT 150/70-MC4

Victron BlueSolar MPPT 150/70-MC4

Elevate your solar energy system with the Victron BlueSolar MPPT 150/70-MC4 (SCC010070300). A powerful solar charge controller designed for optimal performance. Harvesting energy from your solar panels, this controller employs cutting-edge technology to ensure efficient energy extraction and swift battery charging, extending the life of your batteries. Perfect for your off-grid, marine and campervan solar energy system needs.

Key Benefits of the Victron BlueSolar MPPT 150/70-MC4:

• Ultra-Fast MPPT Technology: Constant monitoring of solar panel voltage and current output maximises power extraction, especially beneficial in varying light conditions. The controller can improve energy harvesting efficiency by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers, making it reliable even under partial cloud cover.
• Remote Monitoring and Control: Harness the full potential of your MPPT charger by remotely controlling and monitoring its features. Simply attach a Bluetooth dongle and pair it with your smartphone via VictronConnect. Internet-enabled installations can utilise the Victron Remote Management Portal (VRM) for any time, anywhere access.
• Advanced Maximum Power Point Detection: BlueSolar's innovative algorithm ensures optimal MPPT selection, even in the presence of partial cloudiness. This feature significantly enhances energy harvesting efficiency, ensuring you get the most out of your solar panels.
• Exceptional Conversion Efficiency: With a fanless design, the controller achieves maximum efficiency exceeding 98%. Its performance remains robust, even in demanding conditions.
• Flexible Loading Algorithm: Choose from eight pre-programmed charging algorithms to suit specific charging requirements. The flexibility allows customisation based on your energy needs.
• Extensive Electronic Protection: The controller comes equipped with comprehensive protection features, including over-temperature protection, power reduction in high-temperature conditions, short circuit and reverse polarity protection in PV panels, and PV reverse current protection.
• Internal Temperature Sensor: The built-in temperature sensor compensates absorption and float charge voltage based on temperature, contributing to overall efficiency.
• Real-Time On-Screen Data Options: Connect to your MPPT controller using smartphones, tablets, or other devices for real-time monitoring. The ColorControl panel enhances user convenience and provides valuable insights into system performance.

Technical Characteristics:

• Automatic battery voltage selection: Yes
• Rated charging current: 70A
• Maximum efficiency: 98%
• Protection: IP43 (electronic components), IP22 (connection area)

Invest in the Victron BlueSolar MPPT 150/70-MC4 for a reliable, efficient, and long-lasting solar energy solution. See Victron Energy´s full solar range here.
