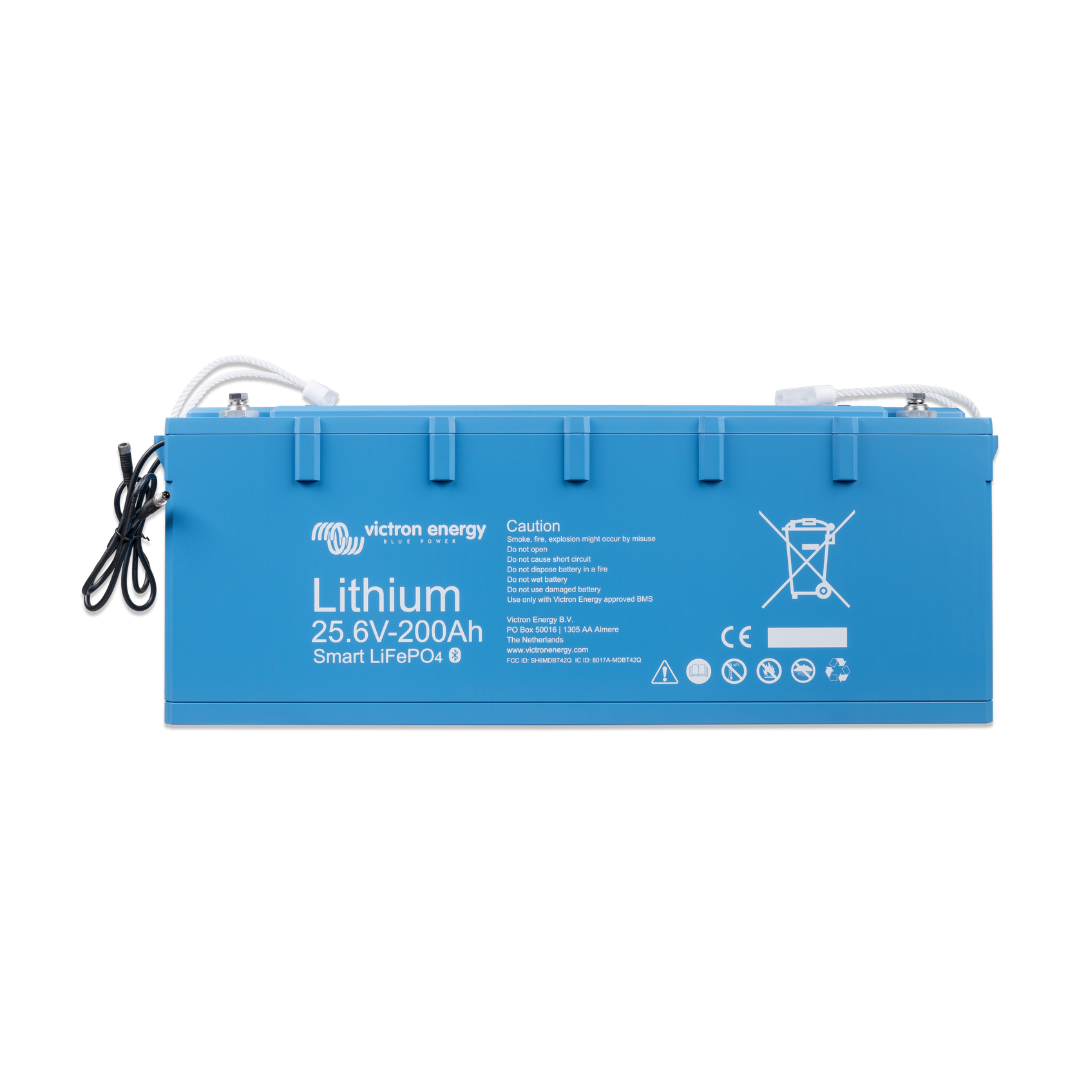

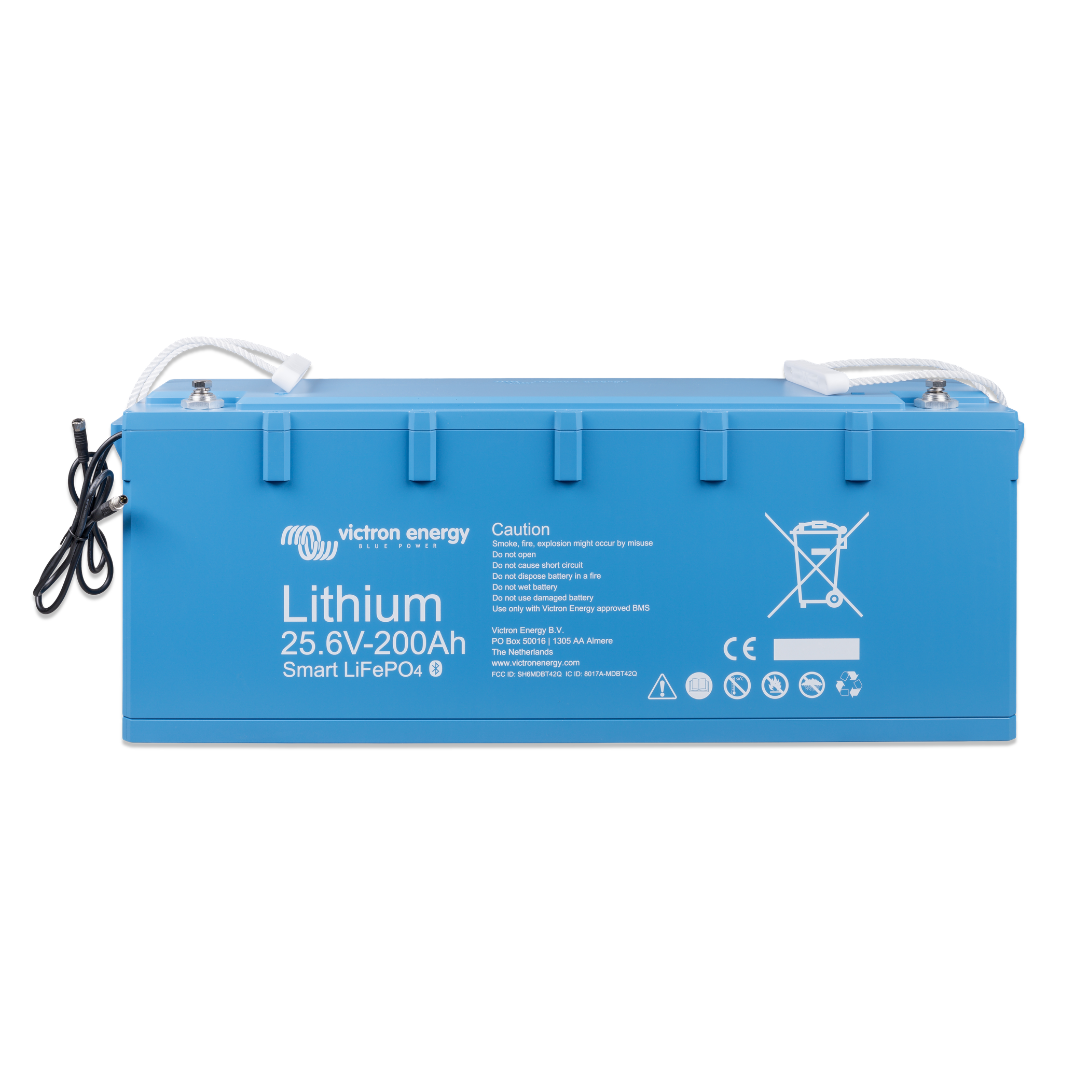

Victron 25.6V 200Ah Smart-a LiFePO4 Lithium Battery – BAT524120610

The 25.6V 200Ah Smart-a LiFePO4 battery provides substantial energy storage for 24V marine, motorhome, and off-grid solar systems.

Combining lithium iron phosphate technology with integrated cell balancing, it is designed for installations requiring dependable power away from mains electricity.

This 200ah battery is a practical choice for larger leisure systems. Ensure your charging equipment and loads are selected to suit the battery bank.

Please note: This battery requires a compatible external Victron Battery Management System (BMS), purchased separately.

Integrated cell balancing does not replace the need for an external BMS. This ensures the long-term health and safety of your power system.

Efficient Energy Storage with 25.6V 200Ah Smart-a LiFePO4

With 92% round-trip efficiency, this lifepo4 24v 200ah unit helps you make effective use of energy from solar panels and chargers.

Unlike lead-acid options, this 24v lifepo4 battery does not suffer from sulphation when operated at a partial state of charge.

This makes it ideal for systems where available sunlight and daily energy consumption vary throughout the year. It ensures steady power delivery.

Bluetooth Monitoring with VictronConnect

Built-in Bluetooth lets you check individual cell voltages, battery temperature, and alarm status via the VictronConnect app.

This 200 amp lithium battery allows you to inspect cell balance and identify potential issues without accessing the battery compartment.

Key Features

• 200Ah Capacity: Substantial battery storage for a nominal 24V system.

• Integrated Cell Balancing: Helps maintain balanced cell voltages.

• Bluetooth Connectivity: View cell voltage, temperature and alarms through VictronConnect.

• Flexible System Design: Supports series and parallel configurations within Victron’s guidelines.

• Long Cycle Life: Rated for 2,500 cycles at 80% depth of discharge, retaining at least 80% nominal capacity.

Technical Specifications

Choose a Compatible Battery Management System

This unit requires an external BMS. Choose a model compatible with the Victron Lithium Battery Smart range to ensure optimal performance.

• Victron smallBMS with Pre-Alarm — a compact option for externally controlled chargers.

• Victron VE.Bus BMS V2 — suitable for Victron MultiPlus or Quattro inverter/chargers.

• Victron Lynx Smart BMS 500 M8 — combines management and monitoring within a Lynx system.

• Victron Lynx Smart BMS 500 M10 — an alternative with M10 busbar connections.

Build Your Victron Lithium Battery System

Pair your battery with suitable charging equipment and protection to create a system matched to your specific power requirements.

Contact Nomadic Leisure for help choosing the right BMS and supporting components for your installation.

For further technical information, see the official Victron Lithium Battery Smart product page.
