Does the Victron 25.6V 100Ah Smart LiFePO4 battery come with a built-in BMS?

While this battery features integrated cell balancing, it does not have a full internal Battery Management System. A compatible external Victron BMS, such as the smallBMS, VE.Bus BMS V2, or Lynx Smart BMS, is required and must be purchased separately to complete your installation.

How can I monitor the health and status of my battery?

The Victron 25.6V 100Ah Smart LiFePO4 battery has built-in Bluetooth. You can use the VictronConnect app on a compatible smartphone or tablet to check individual cell voltages, battery temperature, and alarm status without needing to access the battery compartment.

What is the expected lifespan of this battery?

This battery is designed for a long cycle life and is rated for 2,500 cycles at 80% depth of discharge, retaining at least 80% of its nominal capacity under specified conditions.

Can I use this battery in a boat or motorhome?

Yes, the Victron 25.6V 100Ah Smart LiFePO4 is suitable for boats, motorhomes, and off-grid solar installations. It is particularly well-suited for environments where solar generation and daily power consumption vary, as LiFePO4 batteries do not suffer from sulphation when operated at a partial state of charge.

Can I connect multiple batteries together to increase my capacity?

Yes, this battery supports both series and parallel configurations to create flexible battery banks, provided you follow Victron’s specific installation guidelines.

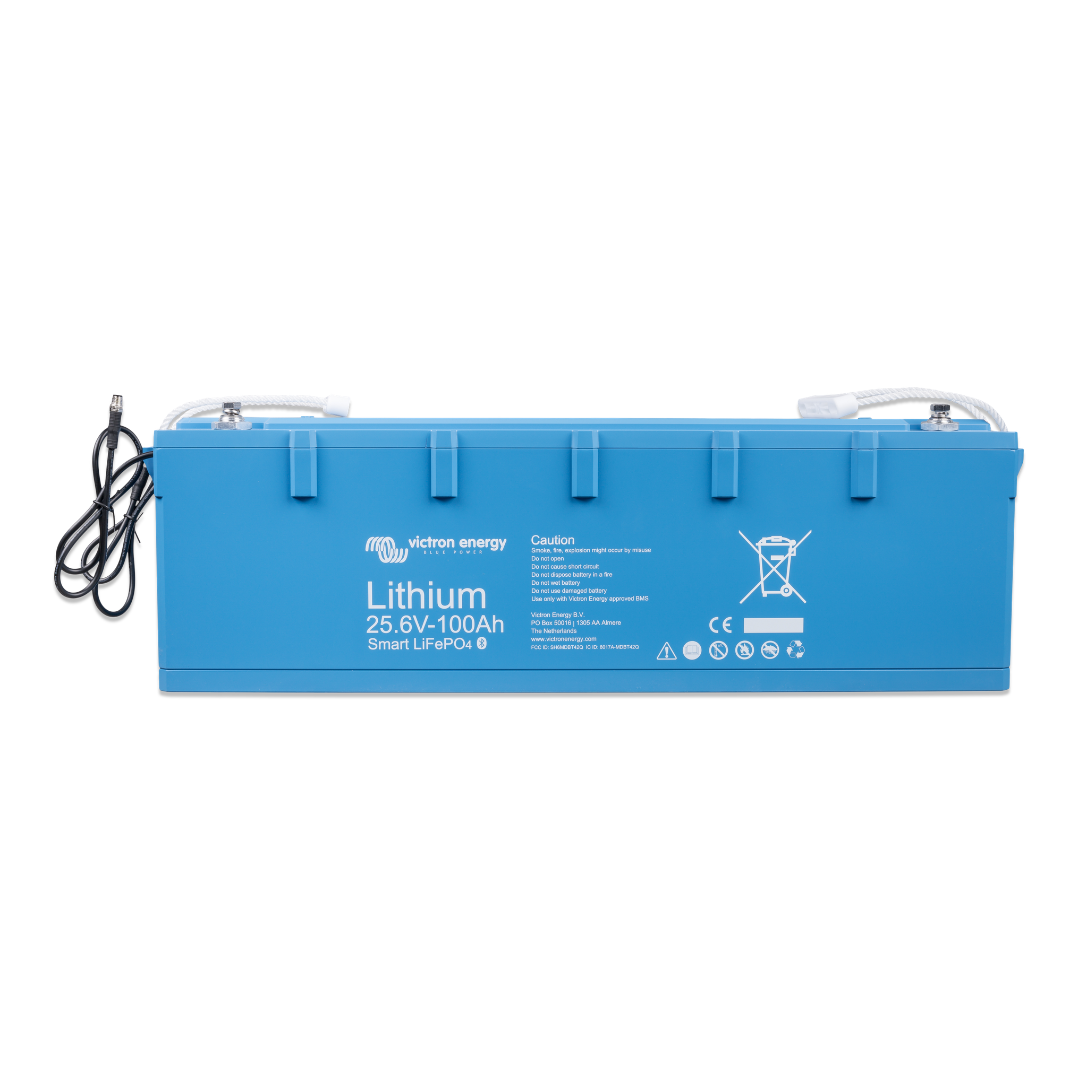

Victron Energy 25.6V 100Ah Smart LiFePO4 Lithium Battery in blue casing

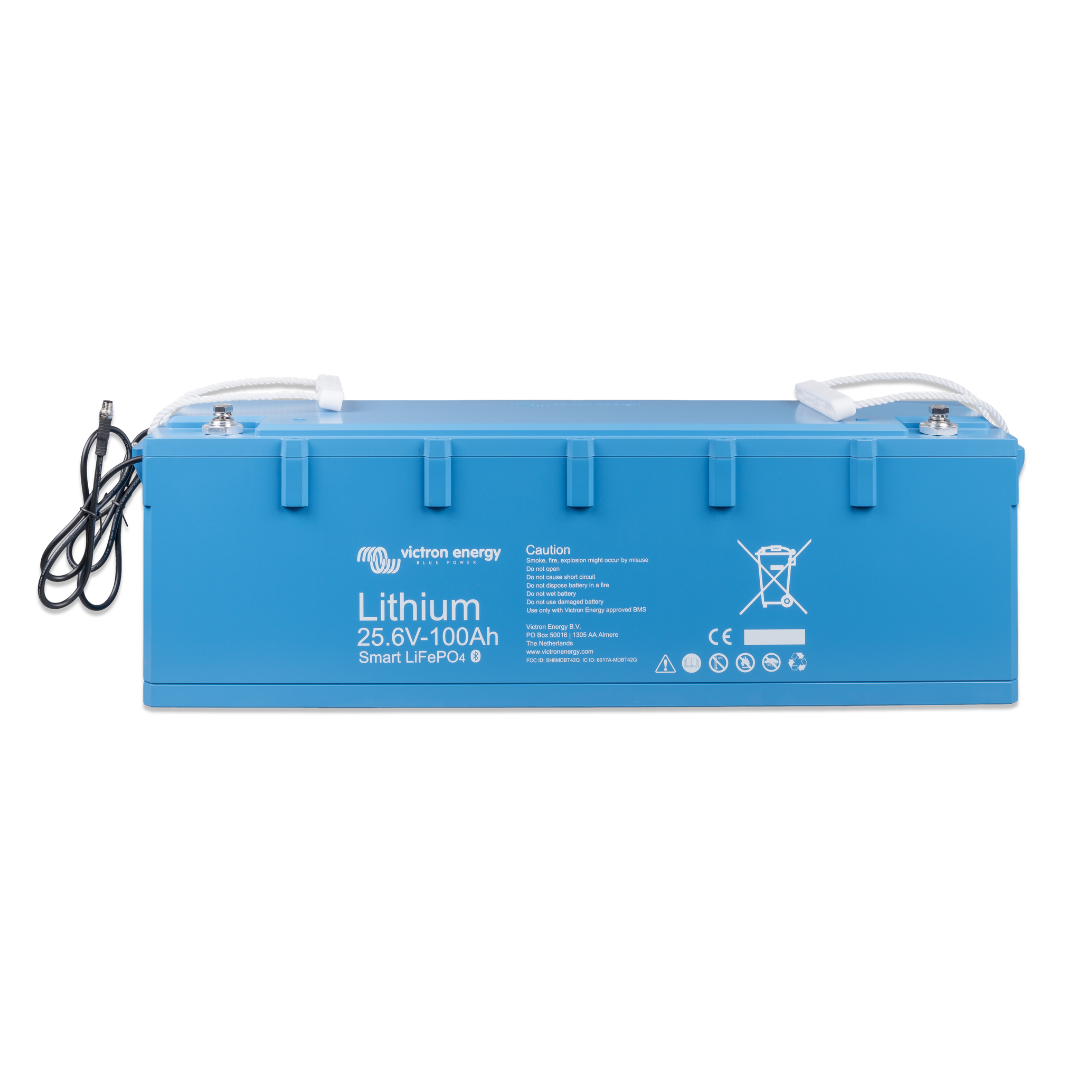

Victron Energy 25.6V 100Ah Smart LiFePO4 Lithium Battery in a blue protective case

Victron 25.6V 100Ah Smart LiFePO4 Lithium Battery – BAT524110610

Name: Victron 25.6V 100Ah Smart LiFePO4 Lithium Battery – BAT524110610
SKU: BAT524110610
Price: 803.51 GBP

£803.51

Tax included.

Product info

Changed your mind? Return your order within 30 days.

The Victron 25.6V 100Ah Smart LiFePO4 battery delivers 2,560Wh of nominal energy storage for 24V electrical systems.

It is ideal for boats, motorhomes, and off-grid solar installations. It combines advanced lithium iron phosphate technology with integrated cell balancing.

Designed for compatible Victron systems, this lifepo4 24v 100ah unit provides efficient energy storage for everyday off-grid power needs.

Please note: A compatible external Victron Battery Management System (BMS) is required and must be purchased separately.

Integrated cell balancing does not replace an external BMS.

Efficient Energy Storage with Victron 25.6V 100Ah Smart LiFePO4

With 92% round-trip efficiency, this battery helps you make effective use of energy from your solar panels and charging equipment.

LiFePO4 batteries do not suffer from sulphation when operated at a partial state of charge.

This makes them well suited to installations where solar generation and daily power consumption vary.

Bluetooth Monitoring with VictronConnect

Built-in Bluetooth allows you to view individual cell voltages, battery temperature, and alarm status via the VictronConnect app.

Use a compatible smartphone or tablet to monitor your system. This makes it easier to check cell balance without accessing the battery compartment.

Key Features

100Ah at 25.6V: This 100ah lithium battery provides 2.56kWh of nominal energy storage at 25°C.
Designed for 24V Systems: Provides a nominal 24V battery supply from a single unit.
Integrated Cell Balancing: Helps maintain balanced cell voltages for better performance.
Bluetooth Connectivity: Monitor cell voltage, temperature and alarms using VictronConnect.
Flexible Battery Banks: Supports series and parallel configurations within Victron’s installation guidelines.
Long Cycle Life: Rated for 2,500 cycles at 80% depth of discharge, retaining at least 80% of nominal capacity.

Technical Specifications

Specification	Details
Product code	BAT524110610
Battery chemistry	Lithium iron phosphate — LiFePO4
Nominal voltage	25.6V
Nominal capacity at 25°C	100Ah
Nominal energy at 25°C	2,560Wh
Recommended continuous discharge current	100A or less
Maximum continuous discharge current	200A
Recommended charge current	50A or less
Recommended charge voltage	28.4V
Float voltage	27V
Charging temperature range	+5°C to +50°C
Discharging temperature range	−20°C to +50°C
Terminal size	M8
Dimensions (H × W × D)	197 × 650 × 163mm
Protection rating	IP22

Complete Your Victron Battery System

Choose an external BMS compatible with the Victron Lithium Battery Smart range and suitable for your 24V installation.

Options include the smallBMS, VE.Bus BMS V2 and Lynx Smart BMS, depending on your system design.

For further information, see the official Victron Lithium Battery Smart product page.
