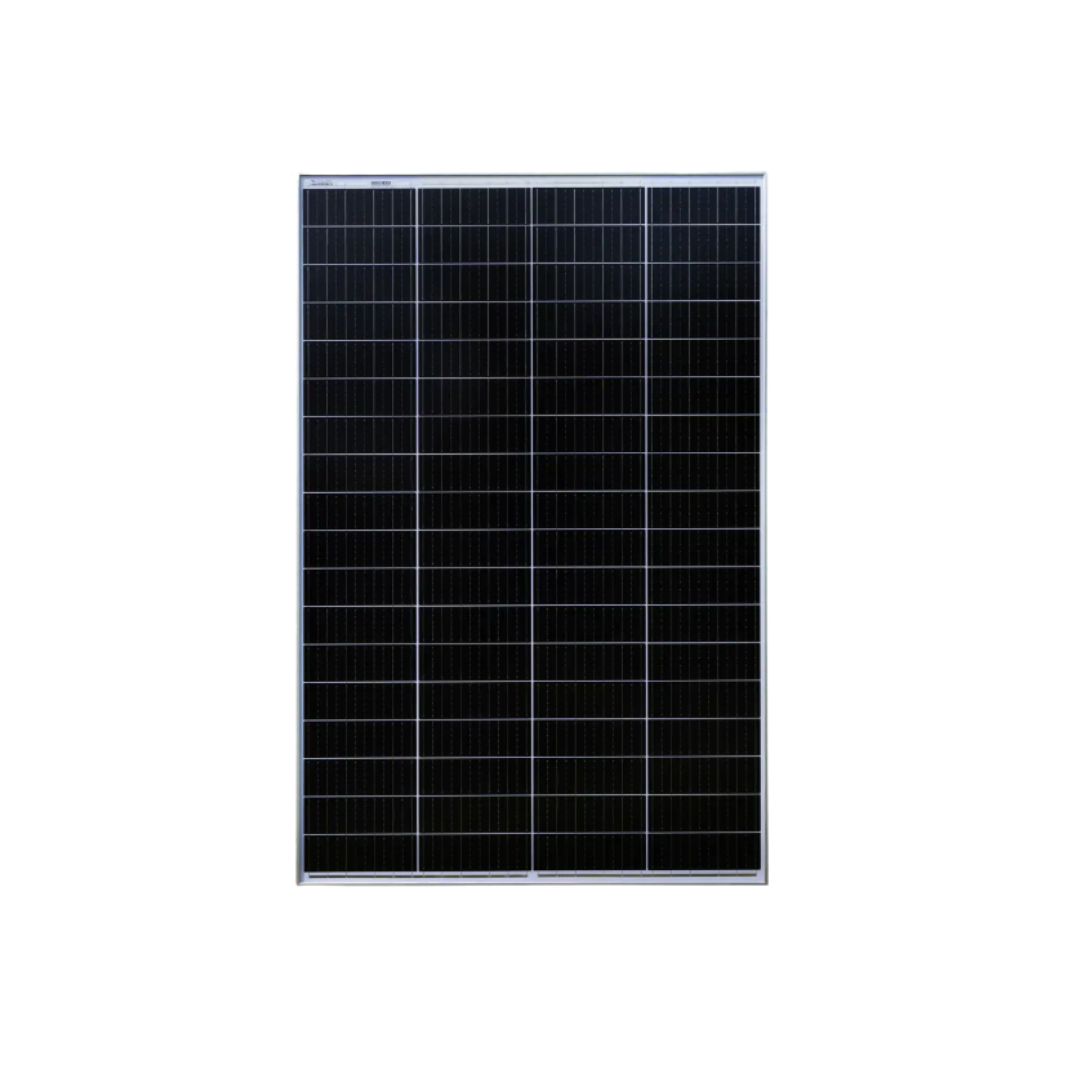

Victron 235W Monocrystalline Solar Panel

The Victron 235W Monocrystalline Solar Panel is a rigid 72-cell panel designed for reliable solar generation in off-grid and leisure installations. Its compact footprint makes it suitable for campervans, motorhomes, marine systems and fixed off-grid applications.

Using monocrystalline solar cells, the panel provides a rated output of 235W. It can be paired with a suitably rated Victron MPPT solar charge controller to create an efficient battery charging system.

Victron 235W Monocrystalline Solar Panel for Off-Grid Power

The Victron 235W Monocrystalline Solar Panel has a maximum power voltage of 41.0V and maximum power current of 5.60A. Open-circuit voltage is 49.4V, while short-circuit current is 5.94A.

Its 72-cell design provides useful solar generation within a relatively compact 1350 × 880mm footprint. The rigid anodised aluminium frame provides a secure structure for permanent installations.

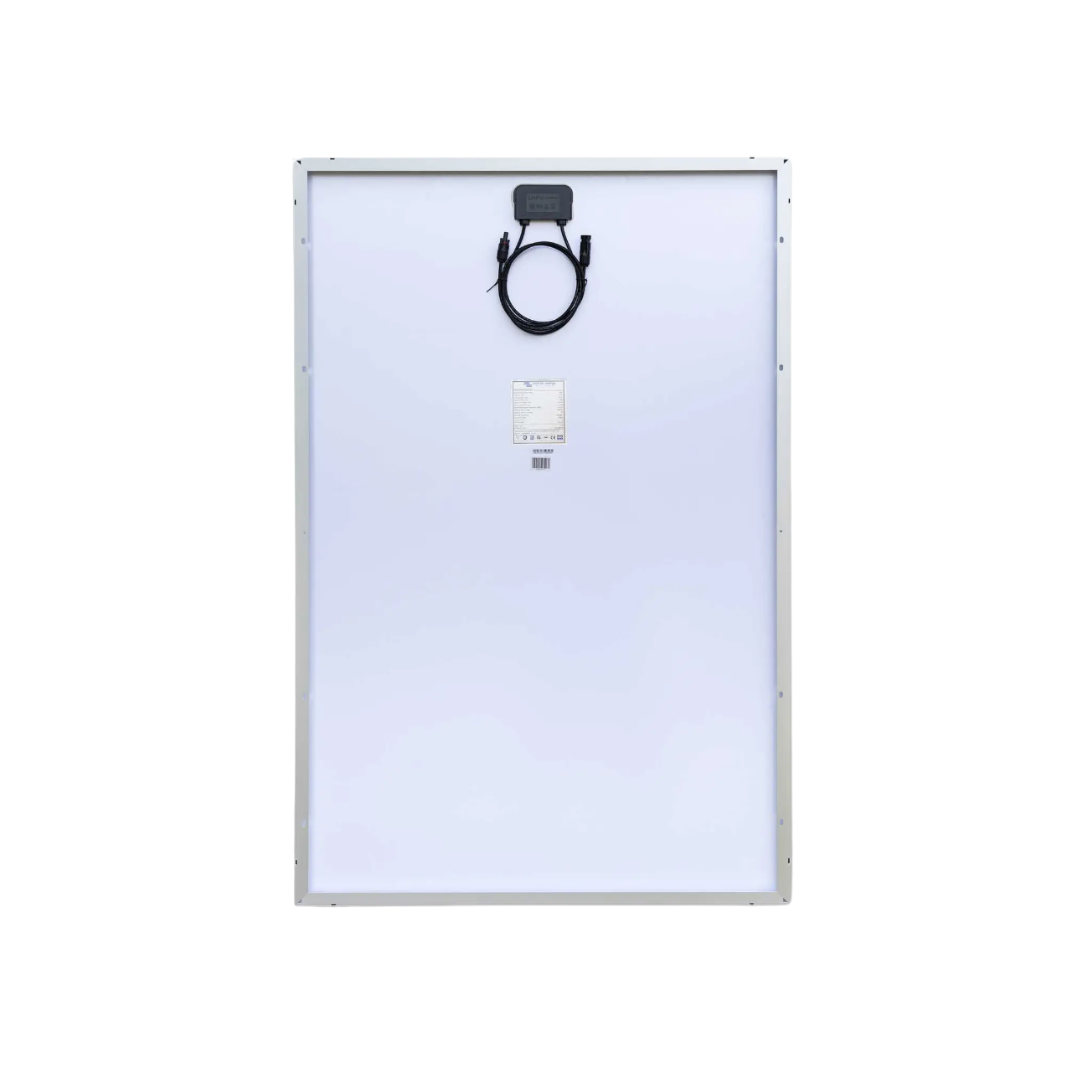

Pre-wired 900mm cables with MC4-compatible connectors simplify connection into a suitable solar system. The panel also features a sealed junction box and bypass diodes.

This Victron solar panel is well suited to off-grid battery charging where dependable renewable power is required. Multiple panels can also be incorporated into larger arrays, provided the system is correctly designed.

When selecting an MPPT controller, always check the complete array voltage and current against the controller's specifications. This is particularly important when connecting multiple panels in series or parallel.

Key Features

• 235W rated solar output

• 72 monocrystalline solar cells

• Rigid solar panel construction

• 19.36% module efficiency

• Anodised aluminium frame

• High-transmission tempered glass

• Sealed junction box

• Integrated bypass diodes

• 900mm connection cables

• MC4-compatible connectors

• Suitable for leisure, marine and off-grid solar installations

Specifications

• Brand: Victron Energy

• Series: 4d

• Rated Power: 235W

• Cell Type: Monocrystalline

• Number of Cells: 72

• Maximum Power Voltage (Vmp): 41.0V

• Maximum Power Current (Imp): 5.60A

• Open-Circuit Voltage (Voc): 49.4V

• Short-Circuit Current (Isc): 5.94A

• Module Efficiency: 19.36%

• Maximum System Voltage: 1000V

• Dimensions: 1350 × 880 × 30mm

• Weight: 12.48kg

• Cable Length: 900mm

• Connection: MC4-compatible

• Frame: Anodised aluminium

• Operating Temperature: -40°C to +85°C

What's Included

• 1 x Victron 235W Monocrystalline Solar Panel
