Do I need any other equipment to use the Victron 12.8V 100Ah Smart LiFePO4 Lithium Battery?

Yes, this battery requires a compatible external Victron Battery Management System (BMS) purchased separately. Please note that the integrated cell balancing does not replace the need for a BMS. Compatible options include the smallBMS, VE.Bus BMS V2, Smart BMS CL 12/100, Smart BMS 12/200, and Lynx Smart BMS.

How does this lithium battery perform compared to a traditional lead-acid battery?

The Victron 12.8V 100Ah Smart LiFePO4 Lithium Battery is significantly more efficient, with a 92% round-trip energy efficiency compared to roughly 80% for lead-acid. It is also more rugged as it does not suffer from sulphation when left partially charged, making it ideal for solar installations where charging levels vary.

Can I monitor the health of the battery using my phone?

Yes, the battery features built-in Bluetooth connectivity. By using the VictronConnect app on a compatible smartphone or tablet, you can monitor individual cell voltages, battery temperature, and alarm status, which helps you easily identify potential issues or cell imbalance.

What is the expected lifespan of this battery if I use it regularly?

This battery is rated for a long cycle life of 2,500 cycles at 80% depth of discharge, while still maintaining at least 80% of its remaining capacity under specified conditions.

Can I connect multiple batteries together to increase my power capacity?

Yes, this model supports both series and parallel configurations to build flexible battery banks, provided you follow Victron’s installation guidelines.

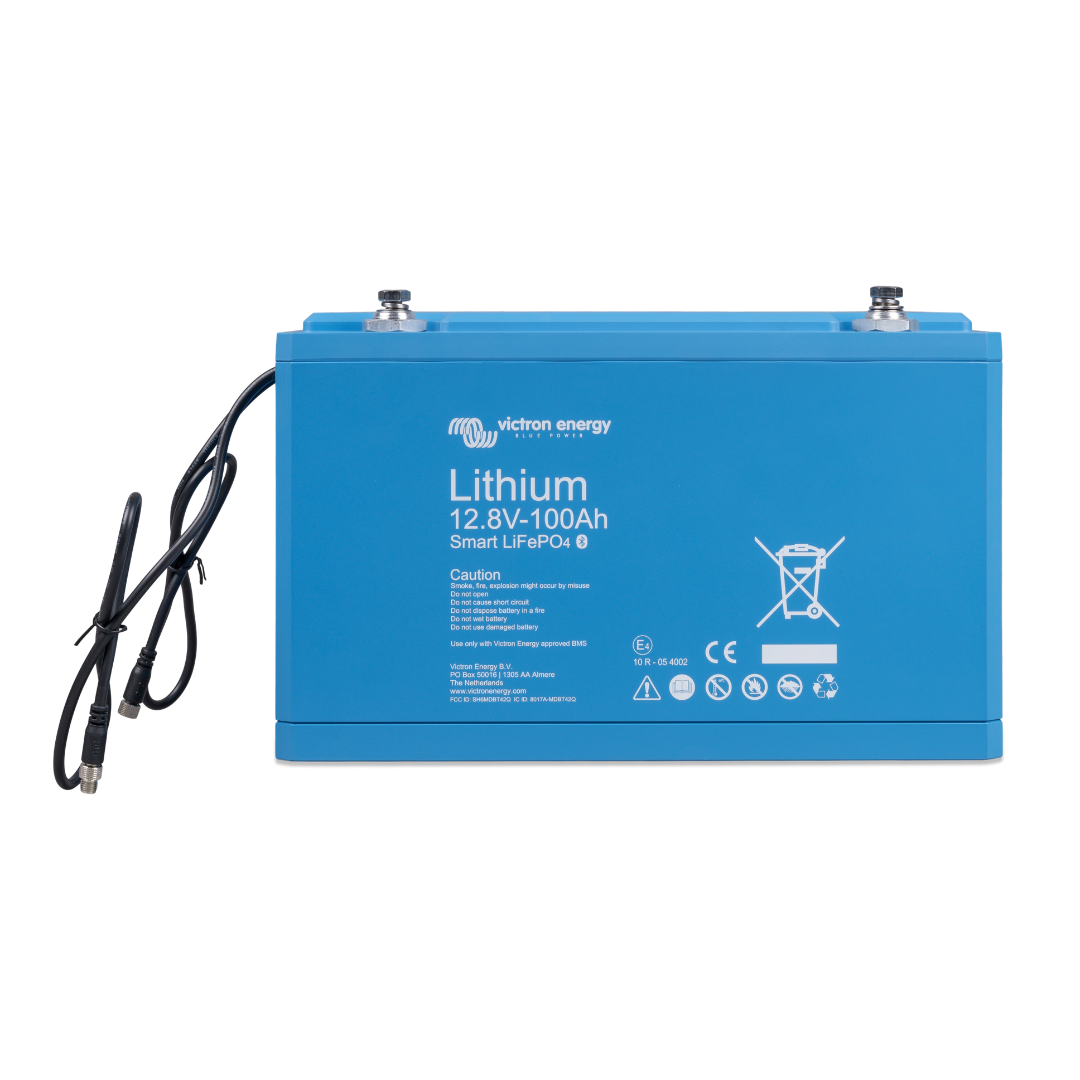

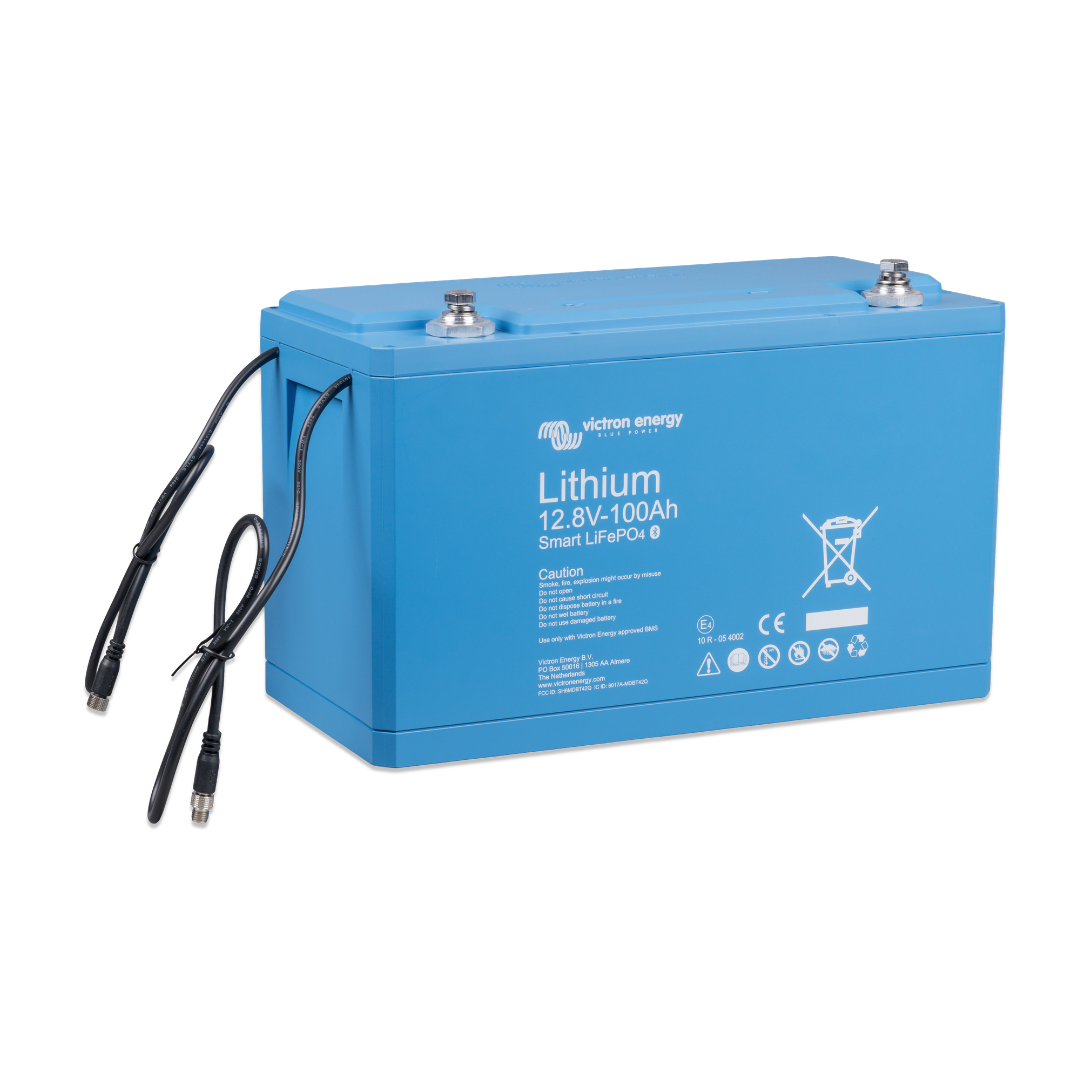

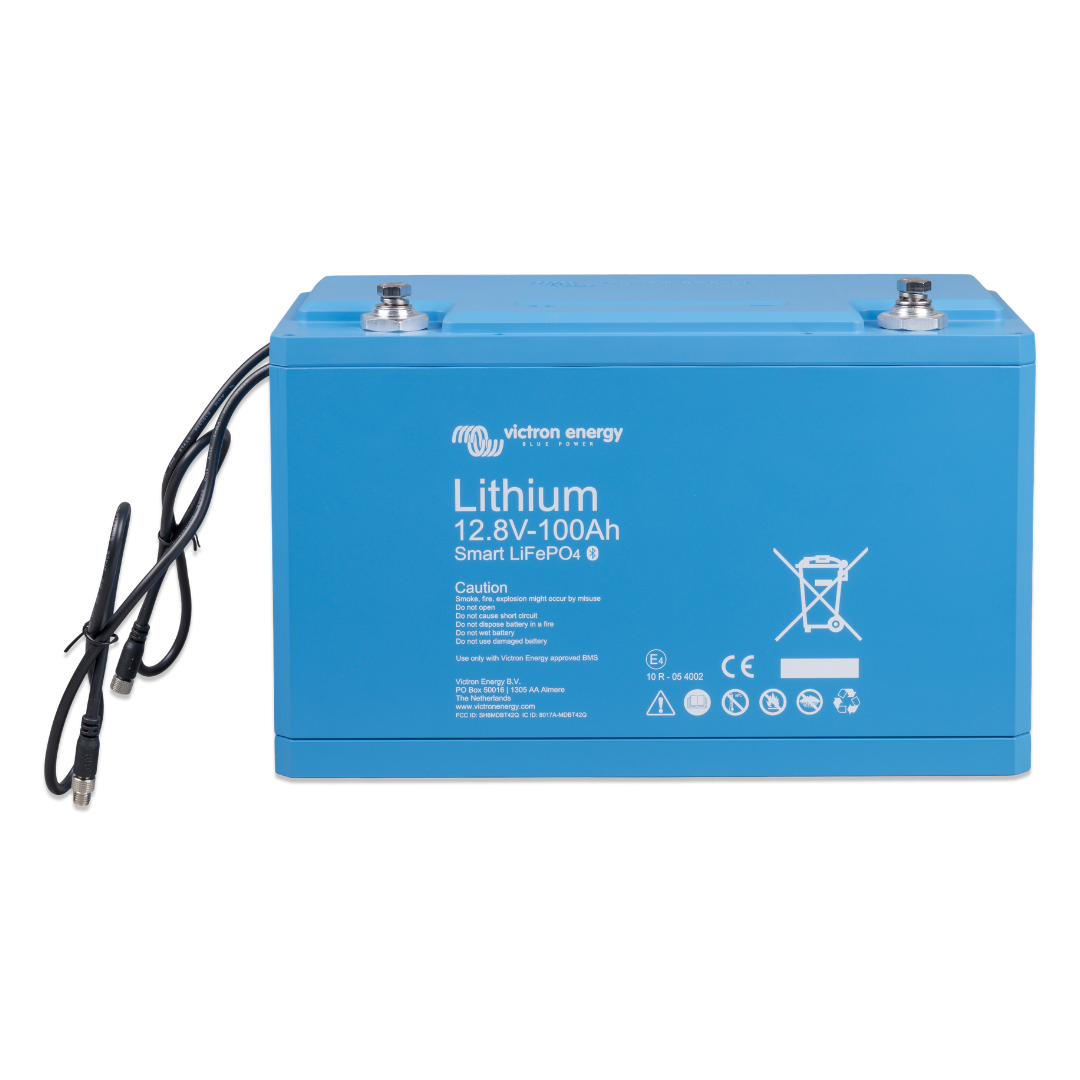

Victron 12.8V 100Ah Smart LiFePO4 Lithium Battery – BAT512110610

Victron 12.8V 100Ah Smart LiFePO4 Lithium Battery – BAT512110610

Name: Victron 12.8V 100Ah Smart LiFePO4 Lithium Battery – BAT512110610
SKU: BAT512110610
Price: 540.65 GBP

£540.65

Tax included.

Product info

Victron LiFePO4 Battery 12,8V/100Ah Smart (BAT512110610) – With integrated cell balancing – Can be parallel and series connected – Bluetooth app available to monitor cell voltage and temperature Why lithium-iron-phosphate? Victron LiFePO4 Battery 12,8V/100Ah Smart.

Changed your mind? Return your order within 30 days.

The Victron 12.8V 100Ah Smart LiFePO4 Lithium Battery provides efficient energy storage for campervans, motorhomes, boats, and off-grid solar systems.

With 1,280Wh of nominal capacity, integrated cell balancing, and Bluetooth monitoring, this victron energy 100ah unit is a practical choice for any leisure battery system.

Lithium iron phosphate technology offers excellent cycling performance. It ensures efficient charging for regular use away from mains power.

Please note: This battery requires a compatible external Victron Battery Management System (BMS), purchased separately. Integrated cell balancing does not replace the need for a BMS.

Why Choose a 100Ah Smart LiFePO4 Lithium Battery?

Unlike lead-acid options, the victron 100ah lifepo4 lithium cells do not suffer from sulphation when left partially charged.

This makes the victron energy lifepo4 100ah particularly useful in solar installations where daily charging levels vary.

High energy efficiency maximizes power from your solar panels. The compact design keeps installation space and weight manageable.

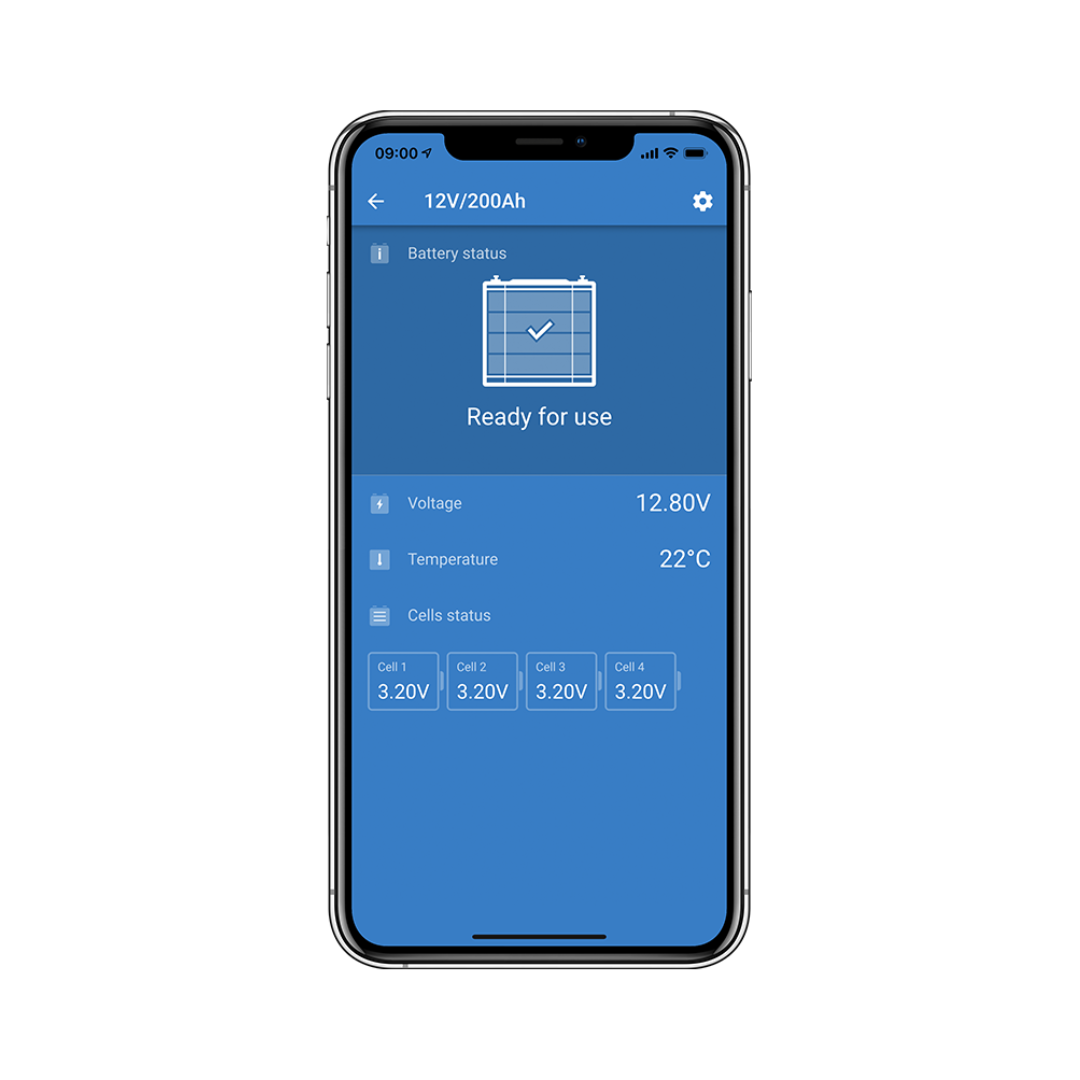

Bluetooth Battery Monitoring

Built-in Bluetooth allows you to check individual cell voltages and temperature. Use the VictronConnect app on a compatible smartphone or tablet.

This victron 100ah lithium feature makes it easier to monitor cell balance and identify potential issues during setup.

Key Features

100Ah Capacity: Nominal energy storage of 1,280Wh at 25°C.
Integrated Cell Balancing: Helps maintain balanced cell voltages across the victron 100ah unit.
Bluetooth Connectivity: View cell voltage, temperature, and alarms through VictronConnect.
Flexible Battery Banks: Supports series and parallel configurations within Victron’s installation guidelines.
Efficient Energy Storage: 92% round-trip efficiency for the victron lithium 100ah.
Long Cycle Life: Rated for 2,500 cycles at 80% depth of discharge, with at least 80% remaining capacity.

Technical Specifications

Specification	Details
Product code	BAT512110610
Battery chemistry	Lithium iron phosphate — LiFePO4
Nominal voltage	12.8V
Nominal capacity at 25°C	100Ah
Nominal energy at 25°C	1,280Wh
Recommended continuous discharge current	100A or less
Maximum continuous discharge current	200A
Recommended charge current	50A or less
Recommended charge voltage	14.2V
Float voltage	13.5V
Charging temperature range	+5°C to +50°C
Discharging temperature range	−20°C to +50°C
Terminal size	M8
Dimensions (H × W × D)	197 × 321 × 152mm
Weight	14kg
Protection rating	IP22

Choosing Your Battery Management System

Select a BMS compatible with the Victron Lithium Battery Smart range. Ensure it matches your specific installation.

Options include the smallBMS, VE.Bus BMS V2, Smart BMS CL 12/100, Smart BMS 12/200 and Lynx Smart BMS.

For further information, see the official Victron Lithium Battery Smart product page.
