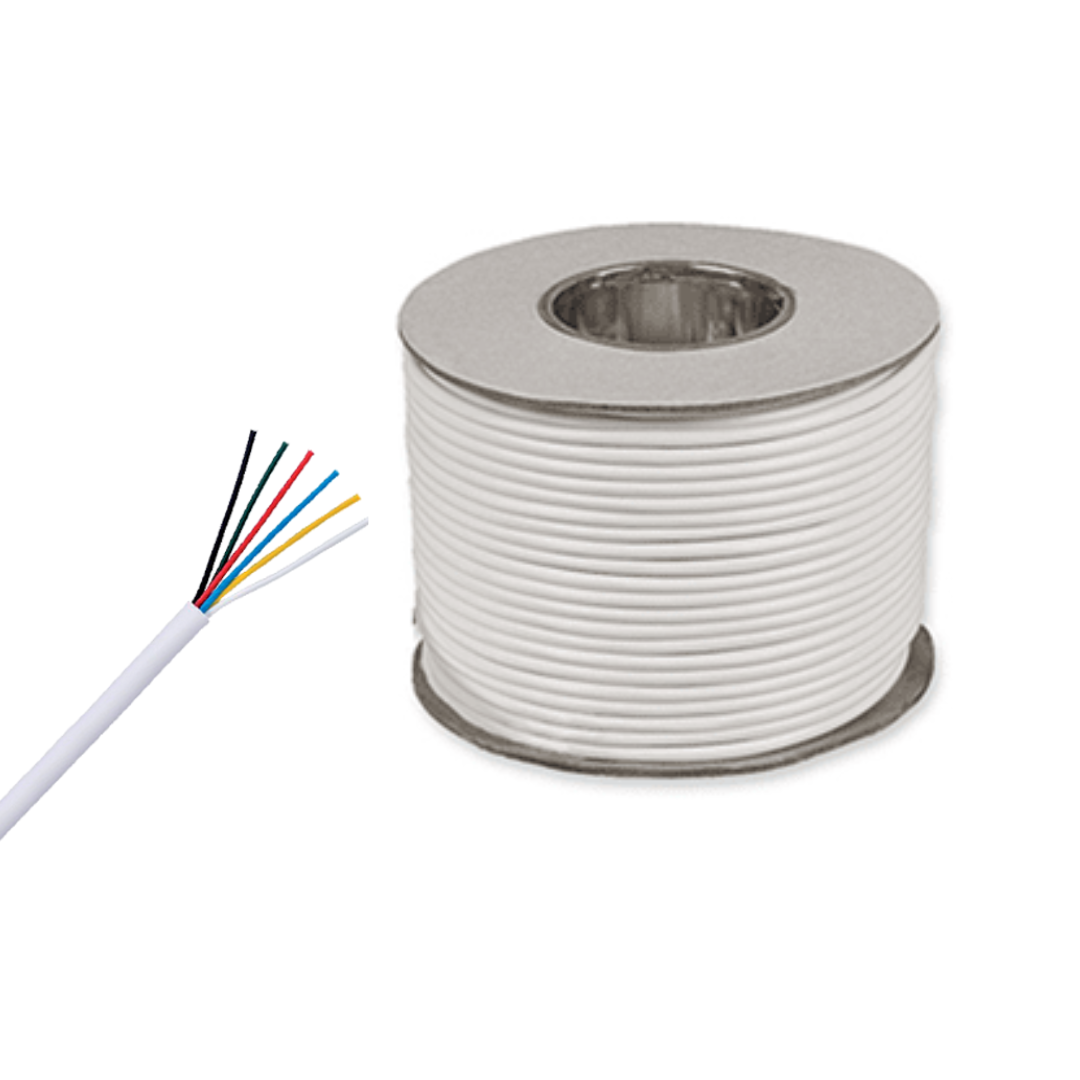

Premium Alarm Cable – 4, 6, or 8 Core (100m Drum)

Premium Alarm Cable – 4, 6, or 8 Core (100m Drum)

Ensure reliable and secure connections for your alarm and low-voltage systems with our high-quality Alarm Cables, available in 4, 6, or 8 core configurations. Each 100-meter drum is designed to meet the rigorous demands of both residential and commercial installations, providing flexibility, durability, and compliance with industry standards.

Key Features:

• Core Options: Choose from 4, 6, or 8 cores to suit various installation requirements.
• Conductor Material: High-purity tinned copper conductors ensure excellent conductivity and corrosion resistance.
• Stranding: Each core comprises 7 strands of 0.20mm wire, offering optimal flexibility for easy routing.
• Insulation: Durable PVC insulation provides protection against mechanical stress and environmental factors.
• Sheath: Robust white PVC outer sheath for added durability and a professional finish.
• Voltage Rating: Suitable for systems up to 50V AC/DC.
• Temperature Range: Operational from -10°C to +70°C, accommodating various environmental conditions.
• Standards Compliance: Manufactured in accordance with BS 4737-3.30 for alarm cable applications.

Applications:

• Intruder and burglar alarm systems
• Access control systems
• Intercom and door entry systems
• CCTV and security camera installations
• Fire alarm and detection systems
• General low-voltage signal transmission

Product Specifications:

4 Core

Conductor Stranding No. of wires/Diameter mm: 4 x 7/0.2

Core PVC Sheath Colours: R, Y, U, B

Nominal Cable O/D Diameter mm: 110 to 3.6

6 Core

Conductor Stranding No. of wires/Diameter mm: 6 x 7/0.2

Core PVC Sheath Colours: R, Y, U, B, G, W

Nominal Cable O/D Diameter mm: 135 to 4.4

8 Core

Conductor Stranding No. of wires/Diameter mm: 8 x 7/0.2

Core PVC Sheath Colours: R, Y, U, B, G, W, N, O

Nominal Cable O/D Diameter mm: 170 to 4.8

Why Choose Our Alarm Cables?

• Versatility: Suitable for a wide range of security and communication applications.
• Ease of Installation: Flexible construction allows for easy handling and installation.
• Durability: Robust materials ensure long-lasting performance, even in challenging environments.
• Compliance: Meets relevant British Standards, ensuring quality and safety

A range of unscreened flexible PVC multicore cables normally used for the wiring of burgler alarm and other low voltage circuits. Each core contains tinned annealed copper conductors to BS4737 coated with a range of colour coded inner sheaths surrounded by an external white PVC insulation. Working temperature range is -10°C to +70°C and maxiumum working voltage is 50V.
