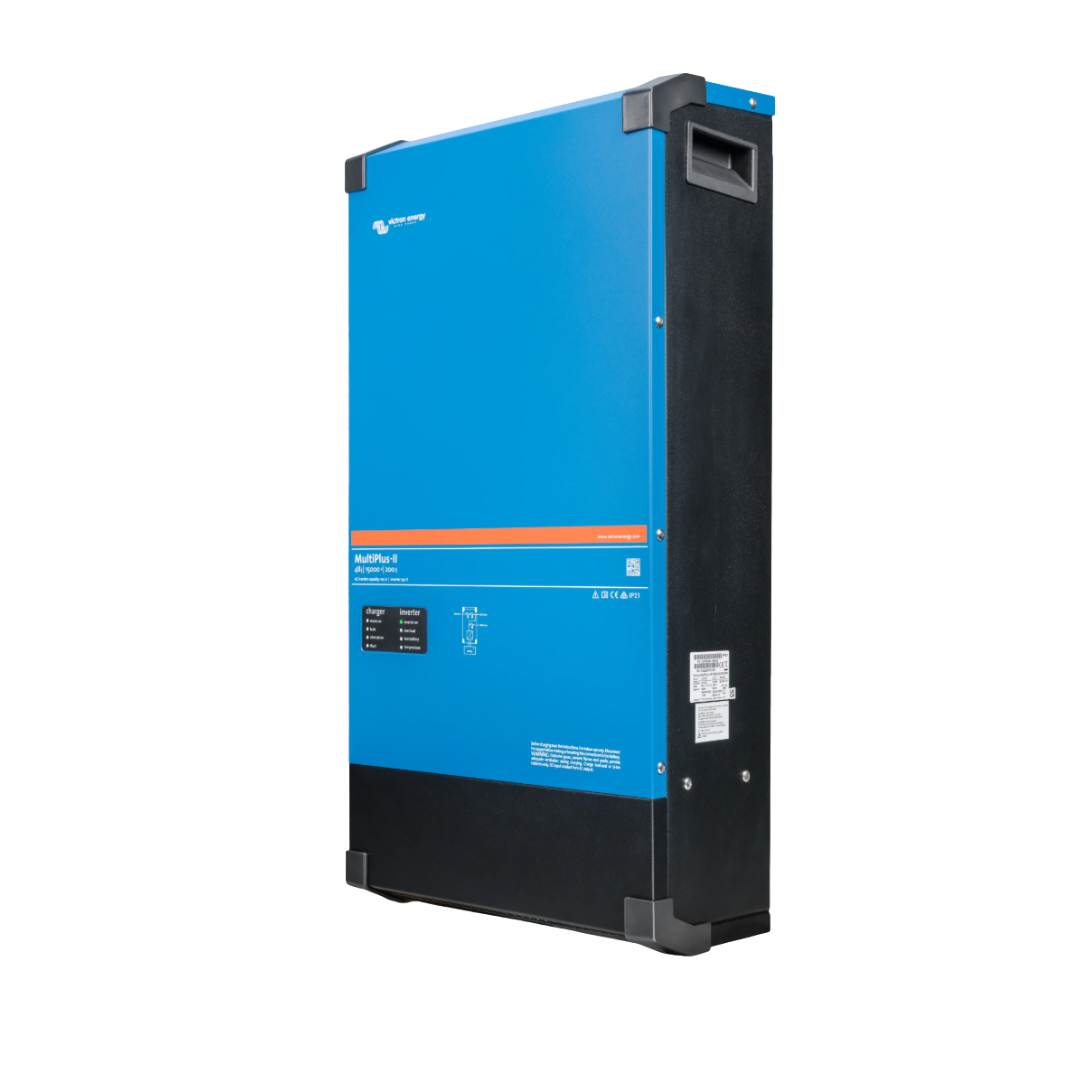

Victron MultiPlus-II 48/15000/200-100 230V

The Victron MultiPlus-II 48/15000/200-100 combines a powerful 48V inverter with a 200A battery charger. Designed for large off-grid, residential and commercial energy systems, this inverter charger provides reliable 230V AC electricity and intelligent battery charging.

With a 15000VA power rating, PowerAssist technology and automatic AC switching, it offers dependable performance for demanding electrical installations.

Victron MultiPlus-II 48/15000/200-100 – Advanced Power Management

This 48V inverter charger delivers pure sine wave electricity for compatible appliances and sensitive electronic equipment. Its integrated adaptive charger manages battery charging when mains electricity or generator power is available.

PowerAssist technology helps prevent overloads on limited AC supplies. When electrical demand increases, the system can supplement incoming power using stored battery energy.

The integrated transfer switch automatically changes between external AC power and inverter operation. This provides reliable backup electricity when the external supply becomes unavailable.

VE.Bus connectivity allows integration with compatible Victron GX devices. The unit can also form part of a correctly configured Victron Energy Storage System (ESS).

Key Features

Pure Sine Wave Output: Delivers stable 230V AC electricity for compatible household and commercial appliances.

15000VA Power Rating: Provides substantial inverter capacity for larger electrical installations.

200A Adaptive Battery Charger: Supports intelligent charging for compatible 48V battery banks.

PowerAssist Technology: Supplements limited mains or generator supplies using stored battery energy.

PowerControl Function: Helps prevent external AC overloads by managing battery charging demand.

Automatic Transfer Switch: Changes between external electricity and inverter operation when required.

UPS Function: Provides rapid transfer to inverter power during interruptions to the external supply.

VE.Bus Connectivity: Supports configuration and integration with compatible Victron monitoring equipment.

ESS Compatibility: Suitable for supported energy storage installations with additional system components.

Remote Monitoring: Connect to a compatible GX device for monitoring through the Victron VRM portal.

Parallel and Three-Phase Operation: Supports larger systems using appropriately configured compatible units.

Built-In Protection: Includes protection against overload, short circuits and overheating.

Specifications

Brand: Victron Energy

Model: MultiPlus-II 48/15000/200-100 230V

Nominal Battery Voltage: 48V DC

AC Output Voltage: 230V AC

Continuous Inverter Rating: 15000VA

Maximum Charging Current: 200A

Maximum AC Feed-Through Current: 100A

Output Waveform: Pure sine wave

Communication: VE.Bus

Charging Technology: Adaptive multi-stage charging

AC Transfer Switch: Integrated

Power Management: PowerControl and PowerAssist

What's Included?

One Victron MultiPlus-II 48/15000/200-100 230V inverter charger.

Please Note

This model requires a compatible 48V battery system. Battery capacity, cabling and protective devices must be suitable for the installation.

A separate MPPT solar charge controller is required for DC-coupled solar charging.

Remote VRM monitoring requires a compatible GX device and internet connection. Bluetooth connectivity is not built in.

Grid-connected, parallel and three-phase installations require appropriate configuration and compliance with applicable electrical regulations.

For further technical information and installation guidance, refer to the official Victron MultiPlus-II datasheet.
