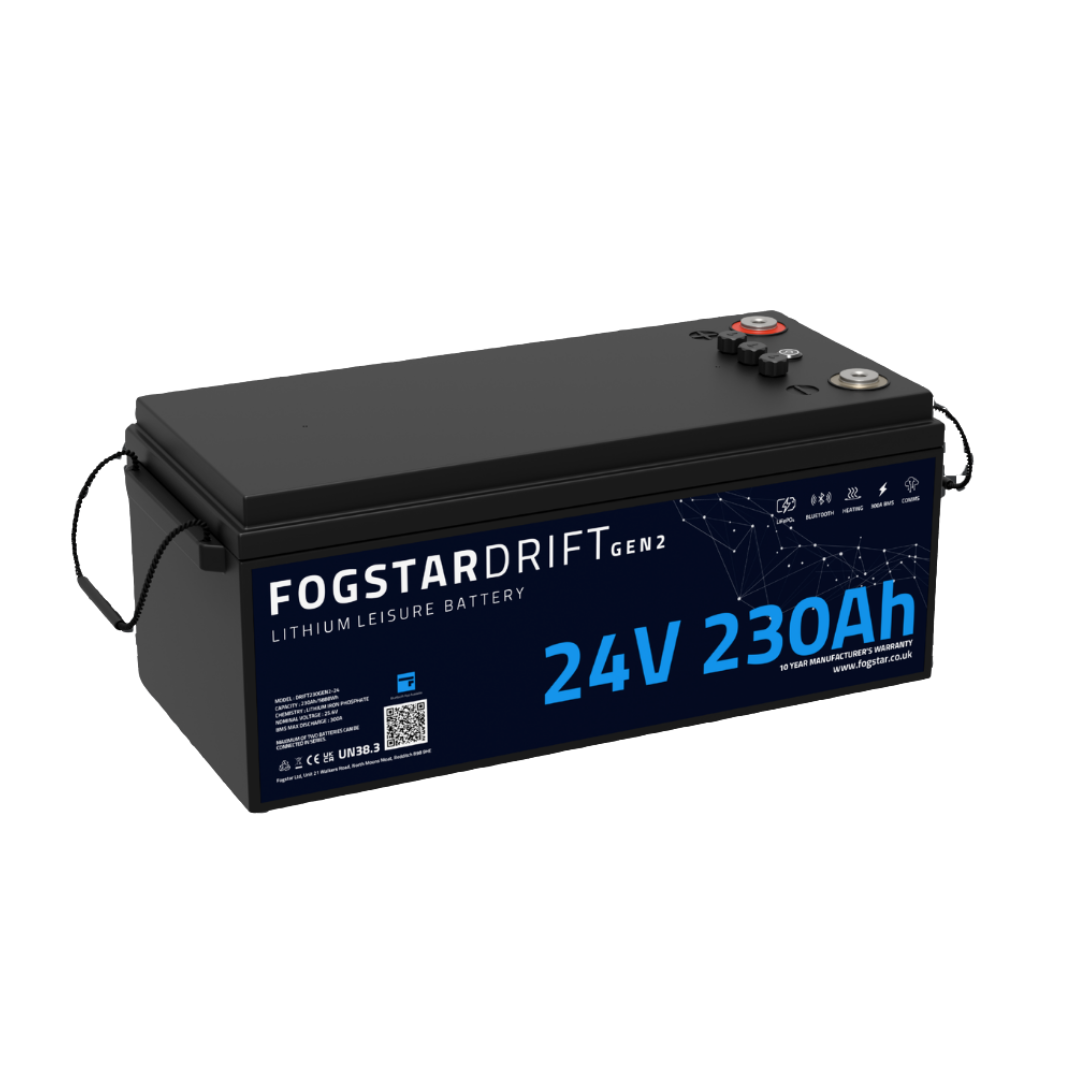

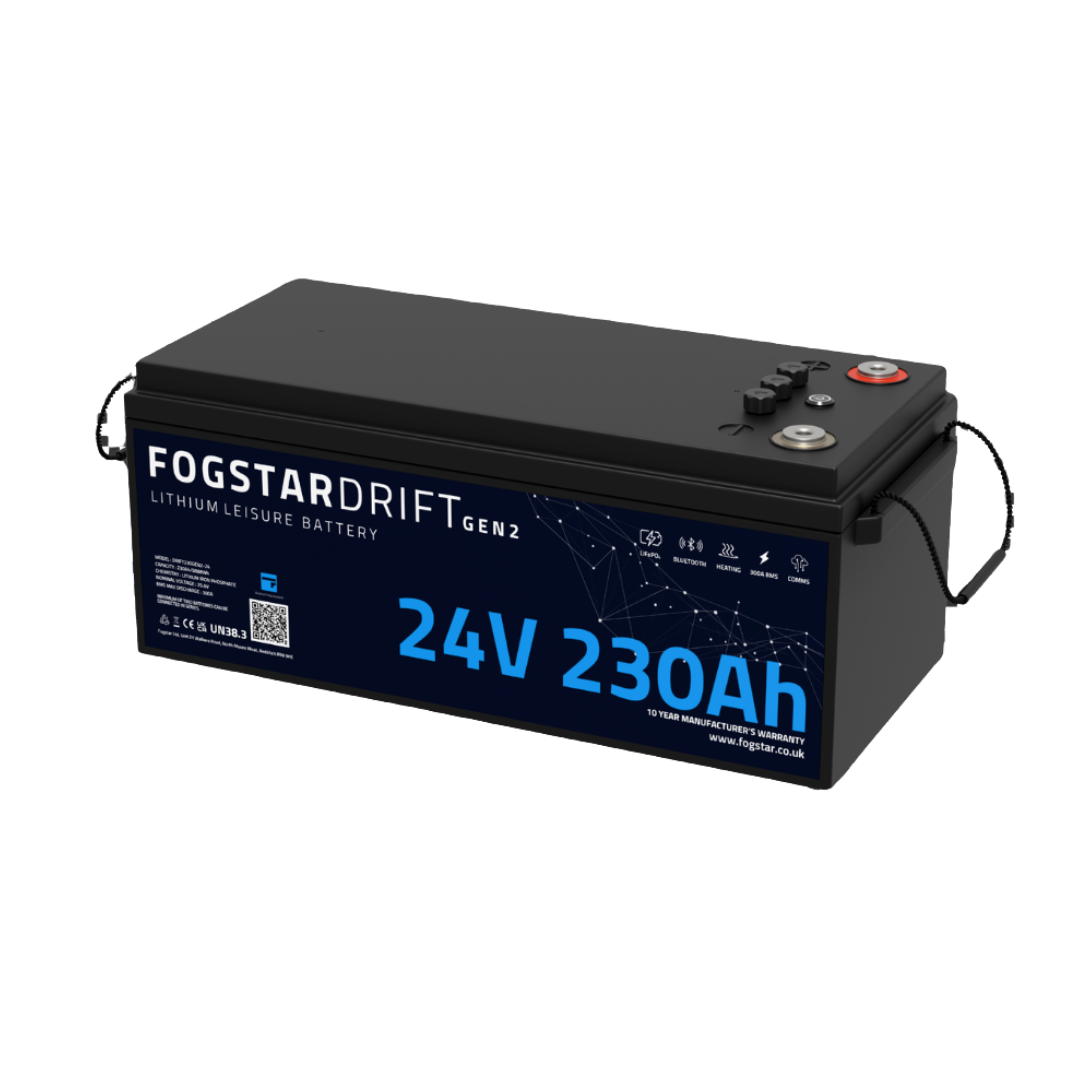

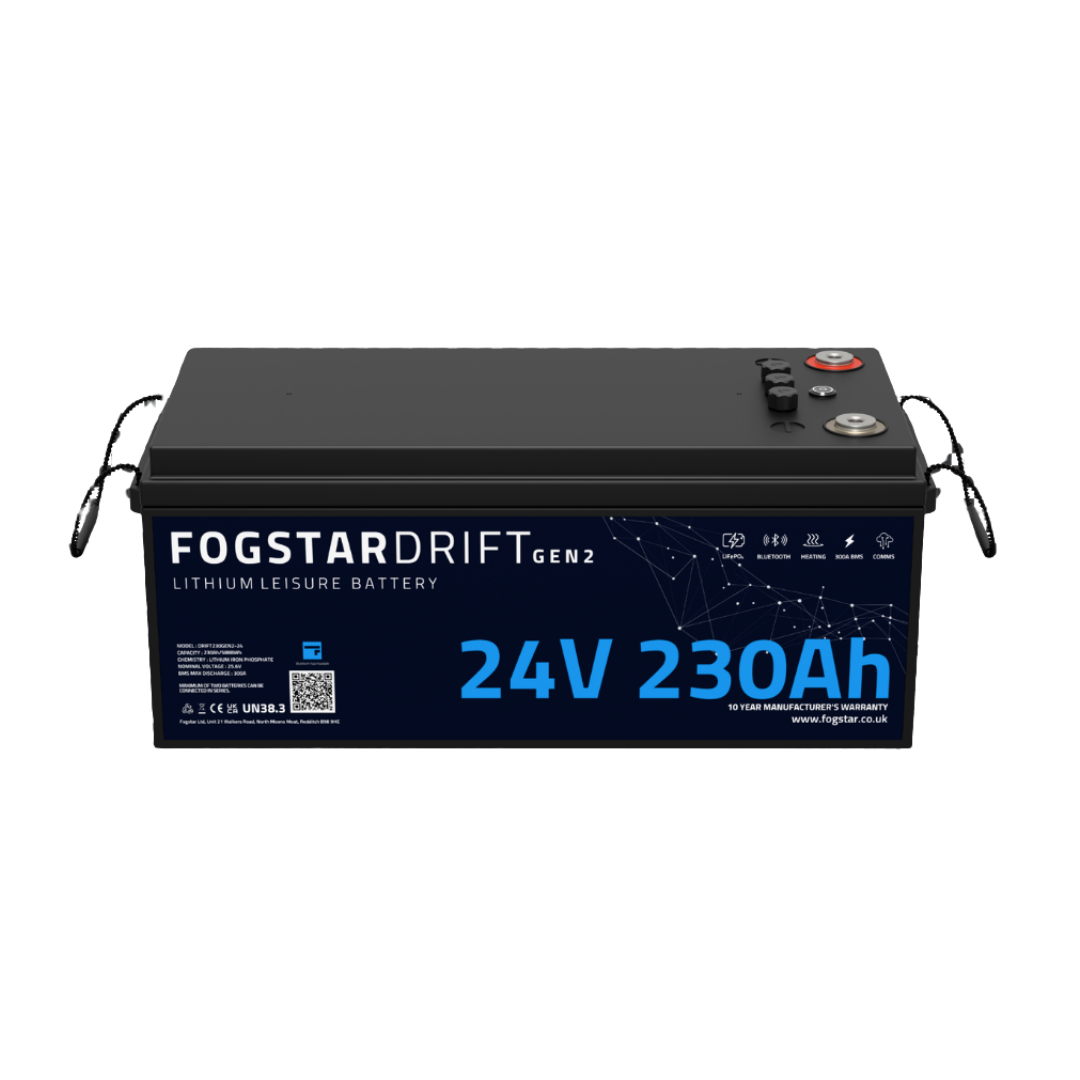

Fogstar Drift Gen2 24V 230Ah Lithium Leisure Battery

The Fogstar Drift Gen2 24V 230Ah is a high-capacity LiFePO4 battery designed for demanding campervan, marine and off-grid electrical systems. With 5,888Wh of stored energy and a powerful 300A Smart BMS, it provides serious capacity for larger 24V installations.

Built using Grade A EVE LF230 prismatic cells, this 230Ah lithium leisure battery combines high power capability with long-term performance. Fogstar rates the battery for 4,000 cycles at 80% depth of discharge.

Fogstar Drift Gen2 24V 230Ah Lithium Battery

The 300A Smart BMS provides protection and supports high-current loads from demanding electrical equipment. Integrated active cell balancing helps keep the cells balanced for consistent performance over the battery's service life.

Bluetooth monitoring is built in, allowing key battery information to be viewed through the Fogstar Drift app. You can monitor voltage, current, state of charge and temperature from a compatible smartphone or tablet.

This Fogstar lithium battery also offers plug-and-play integration with compatible Victron systems. This makes it a strong choice for larger electrical installations already using Victron charging, monitoring or power equipment.

Integrated low-temperature heating helps protect the cells when charging in cold conditions. The IP67-rated enclosure provides additional protection against water and dust.

Key Features

• 230Ah LiFePO4 battery capacity
• 25.6V nominal voltage
• 5,888Wh stored energy
• 300A Smart BMS
• 0.2A shunt accuracy
• Integrated active cell balancing
• Grade A EVE LF230 prismatic cells
• Bluetooth monitoring via Fogstar Drift app
• Automatic low-temperature heating
• Plug-and-play Victron integration
• IP67 water and dust protection
• Physical on/off switch
• Up to 2 batteries in series
• Up to 16 batteries in parallel
• 10-year Fogstar warranty

Specifications

• Brand: Fogstar
• Range: Drift Gen2
• Battery Chemistry: LiFePO4
• Nominal Voltage: 25.6V
• Capacity: 230Ah
• Energy: 5,888Wh
• Recommended Charge Voltage: 28.4V
• Maximum Continuous Discharge: 300A
• BMS: 300A Smart BMS
• Cells: Grade A EVE LF230
• Cycle Life: 4,000 cycles at 80% DOD
• Monitoring: Bluetooth via Fogstar Drift app
• Low-Temperature Heating: Yes
• Protection Rating: IP67
• Terminals: M8, 1.25 pitch, 12mm
• Dimensions: 520 × 238 × 221mm
• Weight: Approx. 38kg
• Warranty: 10 years

What's Included

• Fogstar Drift Gen2 24V 230Ah battery
• M8 terminal bolts

Please Note

This 24V lithium leisure battery is intended for compatible 24V electrical systems. Ensure chargers, inverters and other equipment are suitable for LiFePO4 batteries.

Correct cable sizing, fusing and system protection should always be used. Follow Fogstar's installation and operating instructions when installing the battery.
