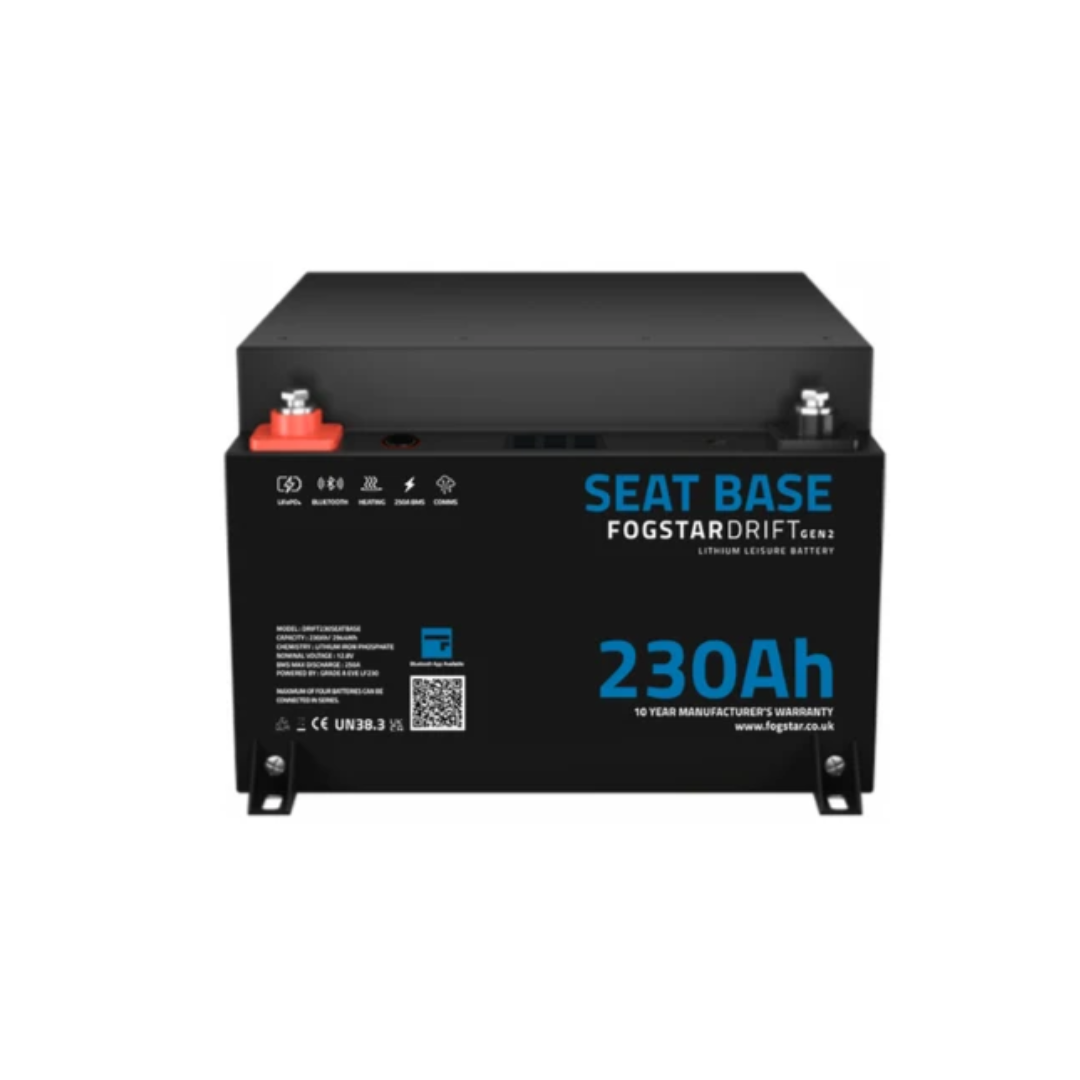

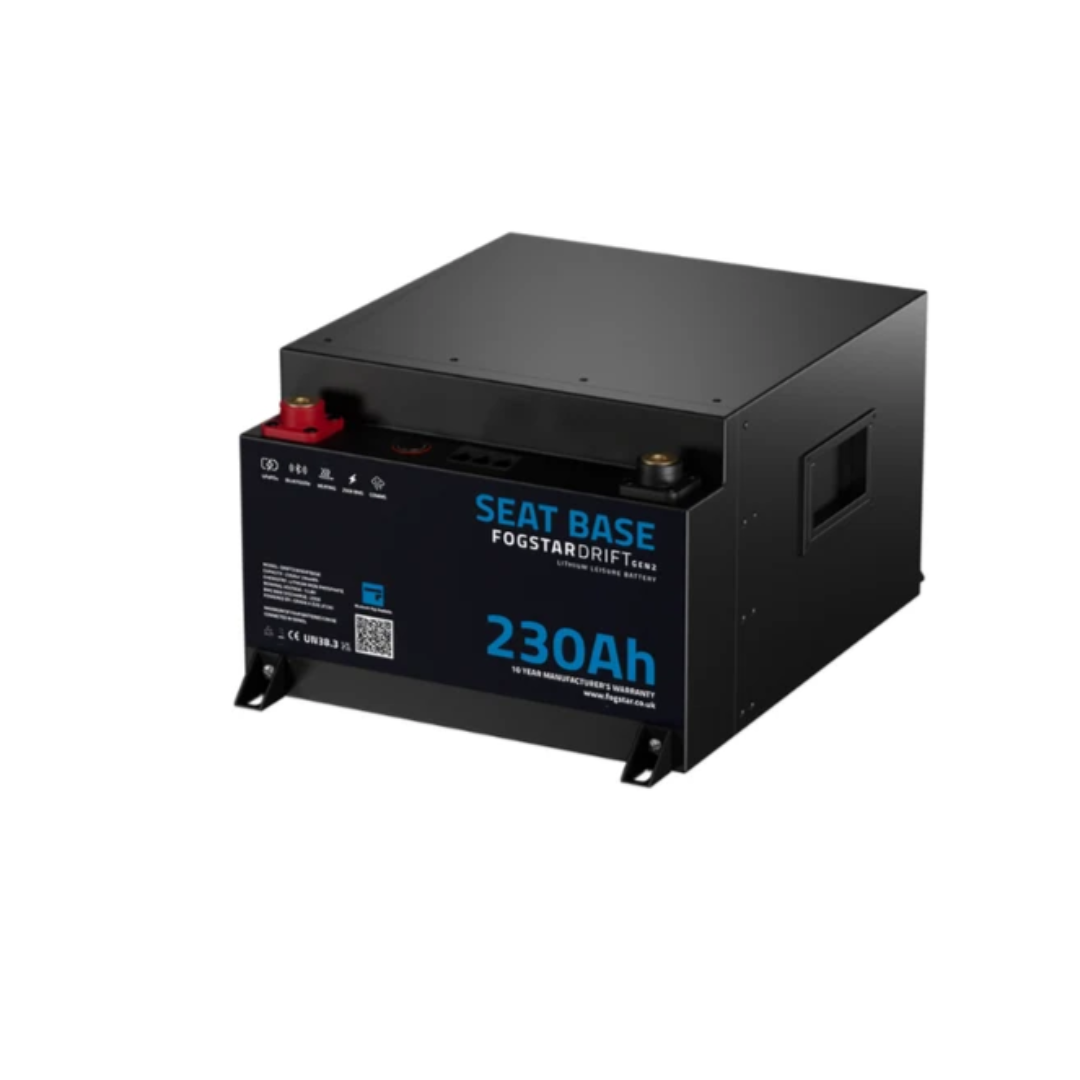

Fogstar Drift Gen2 12V 230Ah Seat Base Lithium Leisure Battery

The Fogstar Drift Gen2 12V 230Ah Seat Base Battery delivers powerful lithium energy storage in a compact, space-saving design. Specifically designed for under-seat installations, it provides 2,944Wh of capacity without taking up valuable living or storage space.

Featuring Bluetooth monitoring, integrated heating and an upgraded 250A Battery Management System, this battery is ideal for campervans, motorhomes and off-grid electrical systems.

Fogstar Drift Gen2 12V 230Ah Seat Base Battery

Designed to fit beneath compatible vehicle seats, this seat base lithium battery measures just 275 × 315 × 187.5mm. Its compact design makes it particularly useful for campervan conversions where space is limited.

The upgraded 250A JBD Battery Management System provides protection against overvoltage, undervoltage, overcurrent, short circuits and temperature extremes. With a maximum continuous discharge of 250A, the battery can support demanding electrical installations, including suitably configured inverters up to 3000W.

Built-in Bluetooth allows you to monitor battery performance through the free Fogstar Drift app. Check state of charge, cell voltages and temperature directly from your smartphone.

The integrated low-temperature heating system helps protect charging performance in colder conditions. This makes the Fogstar Drift battery particularly useful for year-round touring and off-grid adventures.

Gen2 technology also introduces integrated 2A active cell balancing and dedicated RJ45 battery-linking ports. These allow compatible batteries to communicate in larger installations while maintaining balanced cell performance.

Manufactured using Grade A EVE LiFePO4 cells, this 230Ah lithium leisure battery offers up to 4,000 cycles at 80% depth of discharge. It also includes a convenient physical on/off hibernation switch and a 10-year Fogstar warranty.

Key Features

• 230Ah LiFePO4 leisure battery

• Compact design for compatible under-seat installations

• 2,944Wh energy capacity

• Upgraded 250A JBD Battery Management System

• 250A maximum continuous discharge

• Built-in Bluetooth monitoring

• Compatible with the Fogstar Drift app

• Integrated automatic low-temperature heating

• 2A active cell balancing

• RJ45 battery-linking communication ports

• Grade A EVE lithium cells

• Physical on/off hibernation switch

• Up to 4,000 cycles at 80% depth of discharge

• Suitable for compatible inverters up to 3000W

• 10-year warranty

Specifications

• Brand: Fogstar Drift

• Range: Drift Gen2

• Battery Type: Seat Base Lithium Leisure Battery

• Battery Chemistry: LiFePO4

• Nominal Voltage: 12.8V

• Capacity: 230Ah

• Energy Capacity: 2,944Wh

• Recommended Charge Voltage: 14.4V

• BMS: 250A JBD

• Maximum Continuous Discharge: 250A

• Active Balancer: 2A Integrated

• Bluetooth: Yes

• App Monitoring: Fogstar Drift App

• Low-Temperature Heating: Yes

• Battery-Linking Ports: RJ45

• Cycle Life: 4,000 Cycles at 80% DOD

• Dimensions: 275 × 315 × 187.5mm

• Weight: 25kg

• Terminals: M10, 1.25 Pitch

• Warranty: 10 Years

What's Included

• 1 × Fogstar Drift Gen2 12V 230Ah Seat Base Lithium Leisure Battery

• M10 Terminal Bolts

Compatibility

Designed for installation beneath compatible vehicle seats, including selected campervan and motorhome models.

Please Note: Check the available space beneath your specific seat before purchasing. Seat swivels, mounting brackets and other modifications may affect the available clearance.
