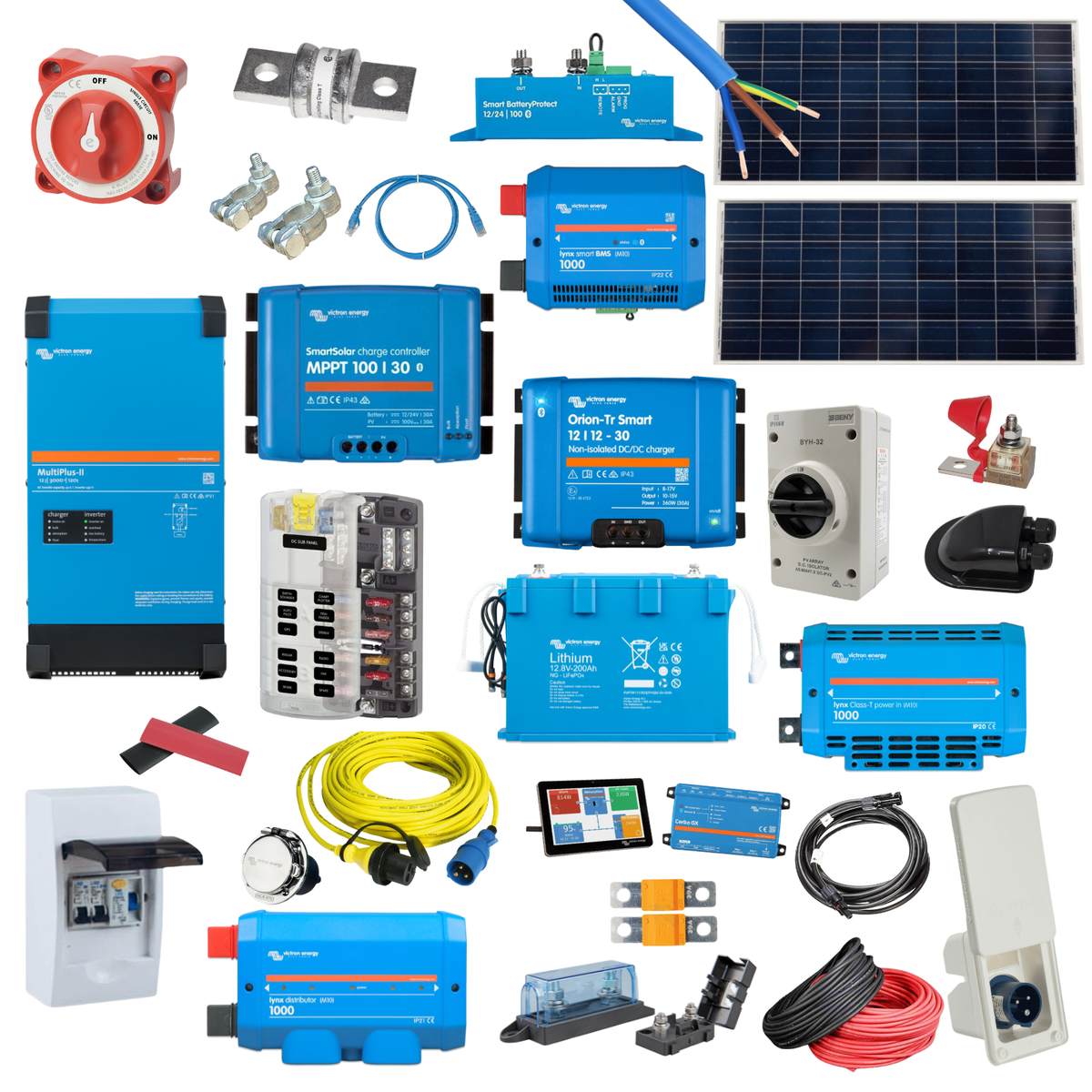

Elite Campervan Electrical System Kit – MultiPlus-II 12/3000 with x2 Victron LifePO4 200ah NG Batteries

Build a powerful and dependable off-grid electrical system with the Nomadic Leisure Elite Campervan Electrical Kit.

Combining 400Ah of Victron Lithium NG battery storage, a MultiPlus-II inverter/charger, solar charging, alternator charging and a choice of monitoring packages, this kit provides a carefully selected foundation for a capable campervan power system.

Trusted Victron Energy and Blue Sea Systems equipment brings together charging, battery management, electrical protection and power distribution. An easy-to-follow electrical schematic, designed in-house by Nomadic Leisure, helps you understand how the supplied components fit together.

400Ah Victron Lithium Battery Storage

The kit includes 2 × Victron Energy 12.8V 200Ah Lithium NG LiFePO₄ batteries, providing a combined 400Ah battery bank when connected in parallel.

This battery bank stores power for your campervan’s leisure equipment and suitable 230V appliances through the inverter.

Dedicated Victron NG battery management equipment provides battery protection and supports the system’s charging and load-control arrangements.

Choose Your Solar Package

Choose the solar configuration that best suits your roof layout and charging requirements:

• 2 × 190W monocrystalline solar panels — 380W total

• 1 × 235W monocrystalline solar panel — 235W total

Your selected solar package includes a matched Victron SmartSolar MPPT charge controller. The controller is determined by your panel selection, so there is no separate MPPT option to choose.

The twin-panel package offers greater total solar capacity, while the single-panel package provides an alternative for roof layouts better suited to one panel. Check panel dimensions against your available roof space before selecting.

Solar mounting, cabling, roof-entry and isolation equipment are included to suit the chosen configuration.

Choose Your DC-DC Charger

Select the alternator-charging option that suits your vehicle and charging requirements:

• Victron Orion 12/12-30A Non-Isolated DC-DC Charger

• Victron Orion XS 12/12-50A DC-DC Charger

Both options use power from your vehicle’s alternator to charge the leisure batteries while the engine is running.

The Orion XS offers charging output of up to 50A, helping replenish the battery bank more quickly where the vehicle’s alternator and installation can support it.

230V Power and Shore-Power Charging

The Victron MultiPlus-II 12/3000/120-32 combines a pure sine wave inverter with a powerful battery charger.

It supplies suitable 230V appliances from your leisure batteries while off-grid. When connected to a suitable mains hook-up, it manages the incoming supply and recharges the battery bank.

This gives you the flexibility to use battery power away from campsites and recharge from shore power when available.

Three Ways to Charge

The Elite kit supports charging from three sources:

• Solar power through the matched SmartSolar MPPT controller

• Alternator power through your selected Orion DC-DC charger

• Shore power through the MultiPlus-II inverter/charger

Together, these charging sources help keep your battery bank replenished while travelling, staying on a campsite or spending time off-grid.

Choose Your Monitoring Package

Choose how you would like to monitor your campervan electrical system:

• Victron BMV-712 Smart Battery Monitor — a dedicated battery display showing state of charge, voltage, current and energy use, with Bluetooth access through VictronConnect.

• Victron Cerbo GX with GX Touch Display — a touchscreen monitoring package providing a central view of your battery bank and connected Victron equipment, including charging activity and system status.

The BMV-712 provides straightforward battery monitoring, while the Cerbo GX and GX Touch offer a broader view of the connected electrical system.

Electrical Protection and Distribution

The kit combines selected Victron and Blue Sea Systems equipment for organised power distribution, battery isolation and circuit protection.

It includes protection for the main battery connections, DC distribution, solar isolation and separate AC input and output circuits.

The supplied Victron Smart BatteryProtect supports controlled disconnection of selected compatible DC loads as part of the system design.

Installation Equipment Included

Alongside the main equipment, the package includes shore-power connection equipment, installation cabling, solar mounting components and associated connection accessories.

These supporting components are selected around your kit configuration, helping bring the charging, storage, monitoring and distribution equipment together.

Easy-to-Follow In-House Schematic

Every kit includes a clear electrical schematic created in-house by Nomadic Leisure.

Designed around your selected configuration, it helps you understand how the main components connect and provides a useful reference for your installer.

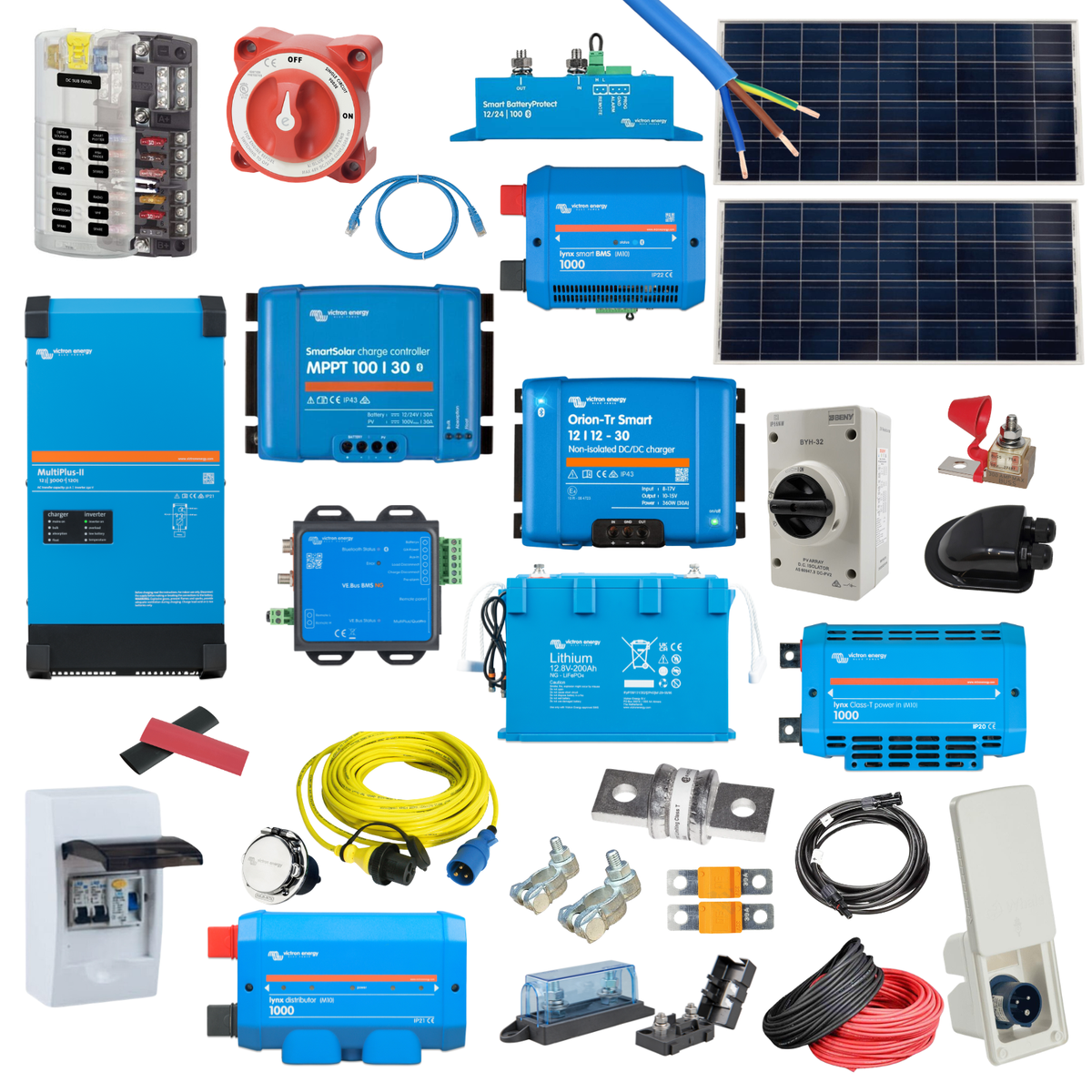

Main Kit Contents

• Victron MultiPlus-II 12/3000/120-32 inverter/charger

• 2 × Victron Energy 200Ah Lithium NG batteries — 400Ah combined

• Dedicated Victron NG battery management equipment

• Choice of BMV-712 Smart Battery Monitor or Cerbo GX with GX Touch display

• Choice of solar-panel package with matched SmartSolar MPPT controller

• Choice of Orion DC-DC charger

• Victron Smart BatteryProtect

• Battery protection and power distribution equipment

• Blue Sea Systems battery isolation and DC distribution equipment

• AC protection and shore-power connection equipment

• Solar mounting, connection and isolation equipment

• Installation cables and associated connection accessories

• Dedicated electrical schematic designed in-house by Nomadic Leisure

Designed for Your Next Adventure

Whether you are building a new campervan or upgrading an existing conversion, the Elite Campervan Electrical Kit brings together substantial lithium storage, flexible charging and clear battery monitoring.

Choose your solar, alternator-charging and monitoring packages to suit your vehicle and travel style, with carefully selected components and a dedicated Nomadic Leisure schematic to support the installation.

Installation and final testing should be completed by a suitably qualified and competent person. Roof space, alternator suitability, appliance demands, battery management integration and installation requirements must be checked for the individual vehicle and selected configuration.
