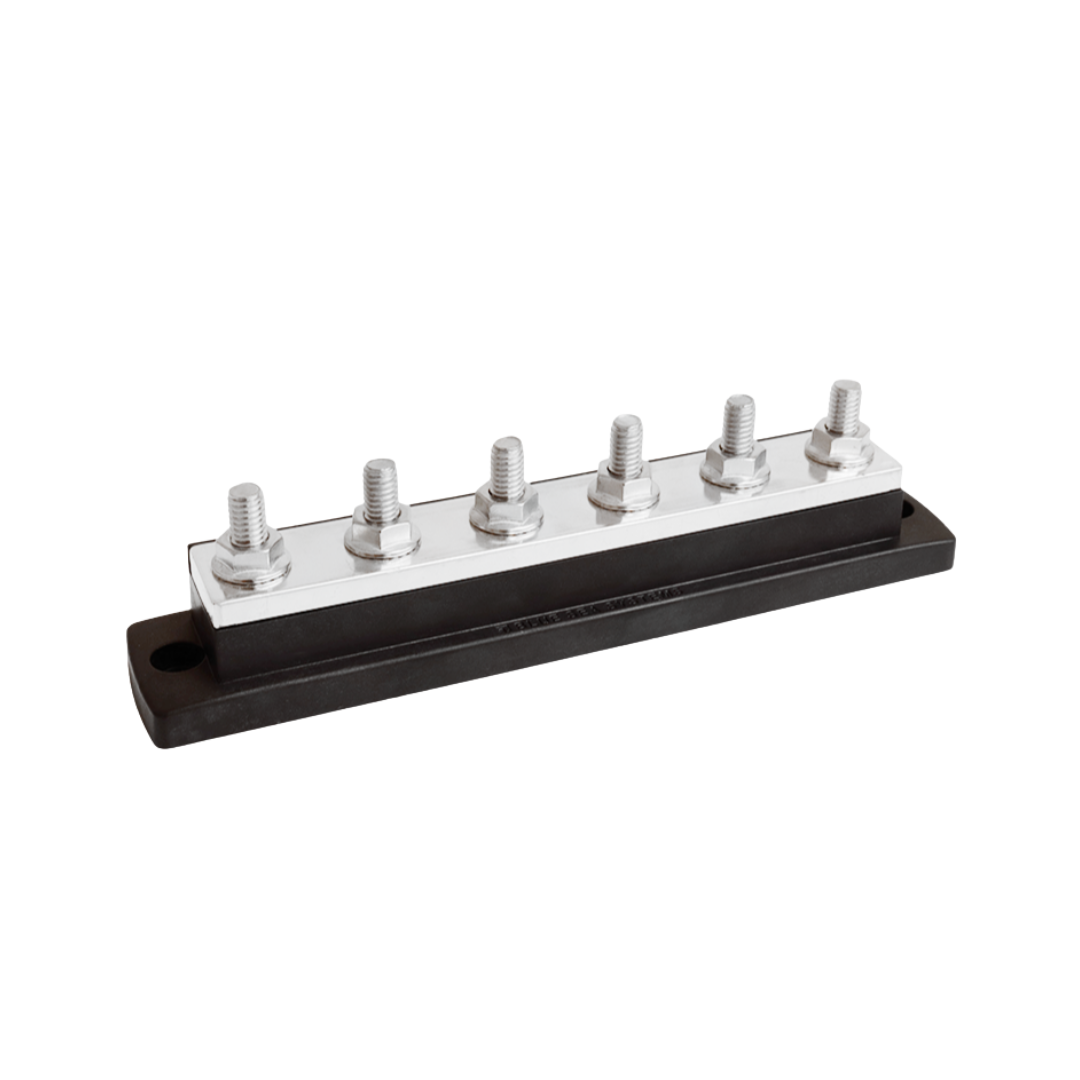

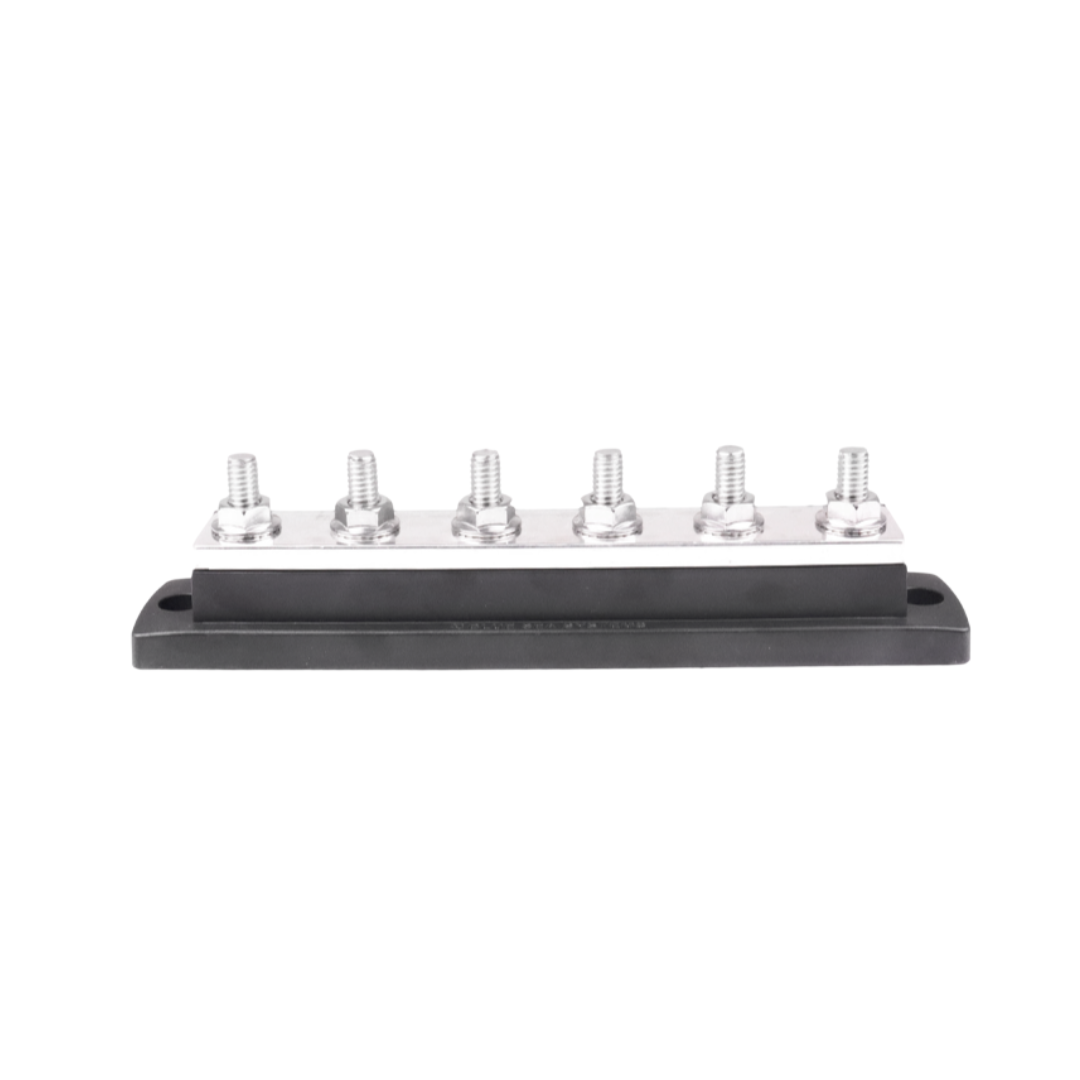

The Blue Sea Systems 2126 MaxiBus 250A BusBar provides a safe and efficient way to consolidate multiple power connections within DC electrical systems. Rated for 250A continuous current, it's ideal for marine, campervan, motorhome, off-grid and automotive applications where a reliable high-current distribution point is required.

Featuring six 5/16"-18 stainless steel terminal studs, the MaxiBus allows multiple cables to be connected securely while maintaining excellent electrical contact. The insert-moulded studs eliminate the need for securing nuts and are designed to withstand high tightening torque, while the raised bus bar provides improved access when installing multiple cables.

Manufactured with a tin-plated copper bus bar for excellent conductivity and corrosion resistance, the unit is housed in a UL 94-V0 rated glass-reinforced thermoplastic base that offers outstanding durability and resistance to heat. Recessed mounting holes help prevent accidental shorts when mounted to metal surfaces, making the MaxiBus a dependable choice for professional electrical installations.

Key Features

• 250A continuous current rating
• Six 5/16"-18 stainless steel terminal studs
• Tin-plated copper bus bar for excellent conductivity
• Insert-moulded studs for secure, high-torque connections
• Raised bus bar for easier cable installation
• UL 94-V0 glass-reinforced thermoplastic base
• Recessed mounting holes help prevent accidental shorts
• Suitable for marine, campervan, motorhome, automotive and off-grid applications

Specifications

• Brand: Blue Sea Systems
• Model: 2126 MaxiBus
• Manufacturer Part Number: 2126-BSS
• Continuous Rating: 250A
• Maximum Voltage: 48V DC / 300V AC
• Number of Terminal Studs: 6
• Terminal Size: 5/16"-18
• Bus Material: Tin-Plated Copper (CDA 110)
• Base Material: UL 94-V0 Glass-Reinforced Thermoplastic
• Recommended Stud Torque: 132 in-lb (14.91Nm)
• Weight: 0.36kg
