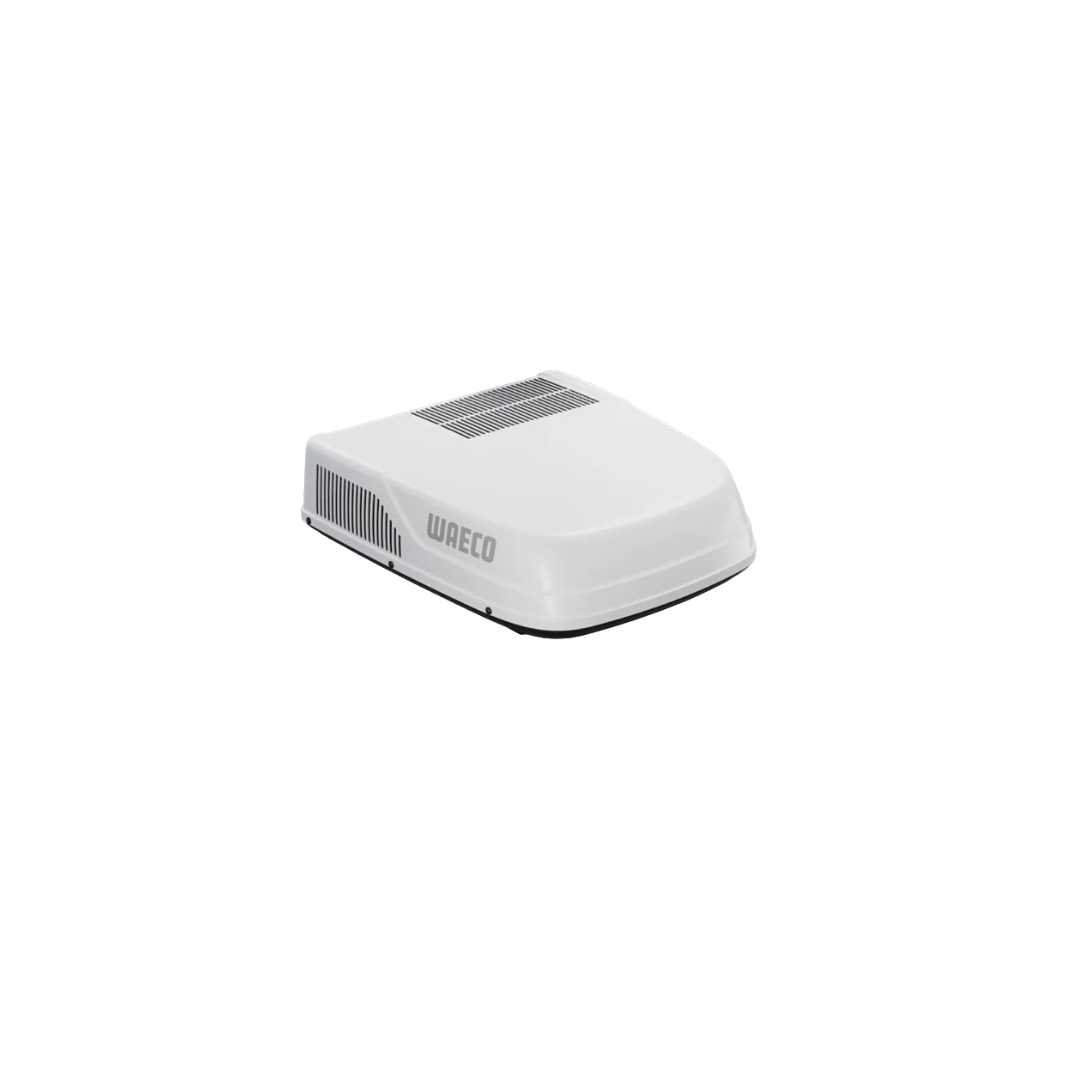

WAECO WAC 2600 Roof Air Conditioner with Air Distribution Box – 2600W

The WAECO WAC 2600 Roof Air Conditioner with Air Distribution Box is a powerful roof-mounted cooling system designed for larger caravans, campervans and motorhomes. Delivering 2600W of cooling performance, it quickly lowers the temperature inside your leisure vehicle to create a more comfortable environment during warm-weather touring.

Recommended for insulated vehicles up to approximately 8 metres long, the WAC 2600 is a strong choice for larger motorhomes, caravans and panel van conversions where a lower-capacity air conditioner may not provide sufficient cooling.

This package includes the WAC 2600 rooftop air-conditioning unit and matching internal air distribution box, providing the main components needed for a complete roof-mounted installation.

Powerful 2600W Cooling Performance

The WAC 2600 uses efficient compressor technology to deliver fast and dependable cooling while keeping energy consumption under control.

Its 2600W cooling capacity makes it suitable for larger leisure vehicles and provides effective cooling throughout the interior. The unit is designed for cooling only and does not include a heating function.

Quiet and Energy-Efficient Operation

Designed specifically for leisure vehicle use, the WAC 2600 combines powerful cooling with quiet operation, helping keep your campervan, caravan or motorhome comfortable without excessive background noise.

A gentle soft-start function reduces the initial electrical demand when the compressor starts. This makes the air conditioner better suited to campsites with limited electrical hook-up capacity.

Slim Air Distribution Box Included

The included internal air distribution box directs cooled air towards both the front and rear of the vehicle, helping distribute airflow more evenly throughout the living space.

At only approximately 54mm high, the low-profile internal unit preserves valuable headroom. Adjustable air outlets allow the airflow direction to be changed easily, while the removable dust filter makes routine cleaning straightforward.

Remote-Controlled Comfort

The supplied remote control allows you to adjust the temperature and fan level from your seating or sleeping area.

Simply select the required temperature and airflow setting, and the air conditioner will maintain a more comfortable interior climate throughout the day or night.

Key Features

• Powerful 2600W roof-mounted air conditioner
• Suitable for insulated leisure vehicles up to approximately 8 metres
• Designed for caravans, campervans and motorhomes
• Includes matching internal air distribution box
• Energy-efficient compressor cooling technology
• Quiet operation for improved comfort
• Gentle soft-start function
• Remote-controlled temperature and fan settings
• Powerful two-way airflow towards the front and rear
• Adjustable internal air outlets
• Low-profile air distribution box helps preserve headroom
• Removable dust filter for easier cleaning
• Aerodynamic white rooftop housing
• Fits a standard 400mm x 400mm roof opening
• Cooling-only model with no heating function

Technical Specifications

• Manufacturer: WAECO
• Model: WAC 2600
• Product code: 9630002129
• Product type: Roof-mounted leisure vehicle air conditioner
• Cooling capacity: 2600W
• Heating capacity: None
• Recommended vehicle length: Up to 8m
• Nominal voltage: 220–240V AC
• Frequency: 50Hz
• Maximum current consumption: 6A
• Required fuse: 6A
• Roof cut-out: 400mm x 400mm
• Roof unit dimensions: 805mm x 722mm x 230mm
• Roof unit weight: Approximately 30kg
• Air distribution box dimensions: 579mm x 518mm x 54mm
• Air distribution box weight: Approximately 3.5kg
• Roof unit colour: White

Ideal For

• Larger motorhomes and caravans
• Campervan and panel van conversions
• Leisure vehicles up to approximately 8 metres
• Summer touring and warm-weather travel
• Campsite and electric hook-up use
• Upgrading an older roof-mounted air conditioner
• Owners needing more cooling capacity than the WAC 2200

Installation Information

The WAECO WAC 2600 requires a standard 400mm x 400mm roof opening and a suitable 220–240V mains electrical supply.

The vehicle roof must be suitable for supporting the combined weight of the rooftop unit and internal air distribution box. Correct sealing, reinforcement and electrical protection should be used, following the manufacturer’s installation instructions.

This is a mains-powered air-conditioning system. Running it from a battery bank would require a suitably specified inverter, batteries, cabling and charging system capable of supporting the unit’s electrical demand.

The WAECO WAC 2600 with Air Distribution Box is an excellent cooling solution for larger leisure vehicles, combining strong 2600W performance, quiet operation, remote control and efficient two-way air distribution in a neat roof-mounted package.
