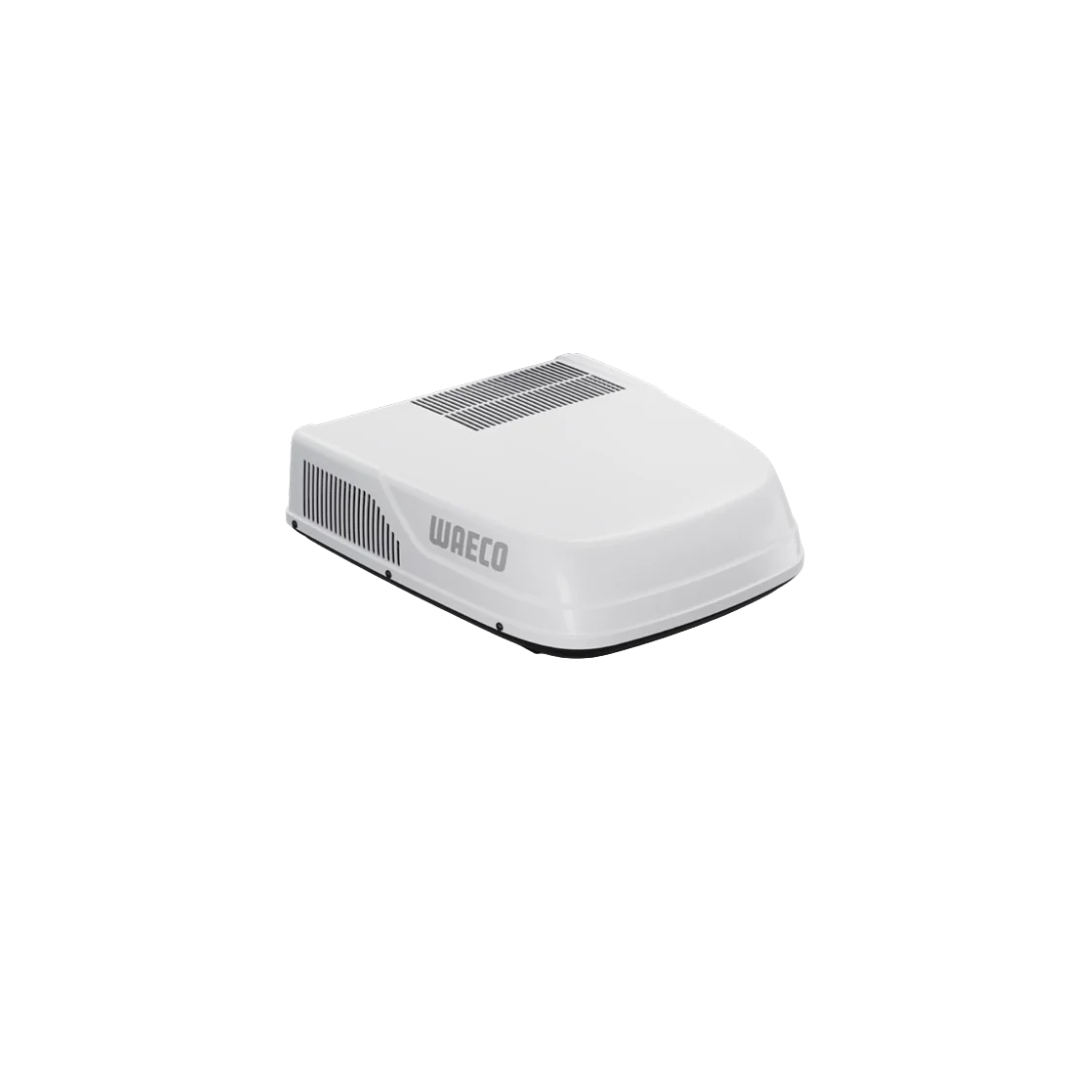

WAECO WAC 2200 Roof Air Conditioner with Air Distribution Box – 2200W

The WAECO WAC 2200 Roof Air Conditioner with Air Distribution Box is a powerful and energy-efficient cooling system designed for caravans, campervans and motorhomes up to approximately 7 metres long.

Delivering 2200W of cooling performance, it quickly reduces the temperature inside your leisure vehicle and helps create a more comfortable environment during warm summer trips. Its aerodynamic white rooftop housing is designed to complement most vehicle exteriors, while the slim internal air distribution box provides effective airflow without taking up excessive headroom.

This package includes the WAC 2200 rooftop air-conditioning unit and matching internal air distribution box, providing the main components required for a complete roof-mounted installation.

Powerful 2200W Cooling

The WAC 2200 uses efficient compressor technology to deliver dependable cooling while keeping power consumption relatively low.

It is recommended for insulated leisure vehicles up to approximately 7 metres in length, making it suitable for a wide range of campervans, caravans and motorhomes.

The unit is designed for cooling only and does not include an integrated heating function.

Quiet and Comfortable Operation

Designed with leisure vehicle use in mind, the WAC 2200 operates quietly to help maintain a comfortable interior without excessive background noise.

A gentle start-up function reduces the initial electrical demand, making the unit suitable for many campsites with limited electrical hook-up capacity. The system requires a 5A fuse under normal installation conditions.

Slim Air Distribution Box Included

The included internal air distribution box directs cooled air both forwards and backwards through the vehicle.

At just 54mm high, its low-profile design helps preserve valuable headroom. Adjustable outlets allow the direction of airflow to be changed easily, helping distribute cool air where it is needed most.

The removable dust filter can be taken out for straightforward cleaning and maintenance.

Remote-Controlled Comfort

The supplied remote control allows you to adjust the temperature and blower level without needing to reach the ceiling unit.

This makes it easy to create a comfortable interior climate from your seating or sleeping area.

Key Features

• Powerful 2200W roof-mounted air conditioner
• Suitable for insulated leisure vehicles up to approximately 7 metres
• Designed for caravans, campervans and motorhomes
• Includes the matching internal air distribution box
• Energy-efficient compressor cooling technology
• Quiet operation for improved comfort
• Gentle start-up for campsites with limited fuse protection
• Remote-controlled temperature and blower settings
• Two-way airflow to the front and rear
• Adjustable internal air outlets
• Low-profile air distribution box preserves headroom
• Removable and washable dust filter
• Aerodynamic white rooftop housing
• Fits a standard 400mm x 400mm roof opening

Technical Specifications

• Manufacturer: WAECO
• Model: WAC 2200
• Product code: 9630002128
• Product type: Roof-mounted leisure vehicle air conditioner
• Cooling capacity: 2200W
• Heating capacity: None
• Recommended vehicle length: Up to 7m
• Nominal voltage: 220–240V AC
• Frequency: 50Hz
• Current consumption: Up to 4.5A
• Required fuse: 5A
• Roof opening: 400mm x 400mm
• Roof unit dimensions: 805mm x 722mm x 230mm
• Roof unit weight: Approximately 28kg
• Air distribution box dimensions: 579mm x 518mm x 54mm
• Air distribution box weight: Approximately 3.5kg
• Roof unit colour: White
• GTIN / EAN: 7333497009830

Ideal For

• Campervan conversions
• Motorhome air-conditioning upgrades
• Caravan roof installations
• Touring in warm weather
• Campsite and electric hook-up use
• Leisure vehicles up to approximately 7 metres
• Replacing an older roof-mounted air conditioner

Installation Information

The WAECO WAC 2200 requires a standard 400mm x 400mm roof cut-out and a suitable 220–240V mains supply.

The roof structure must be capable of supporting the weight of the air-conditioning unit. Installation should include appropriate mains protection, sealing and reinforcement where required, and should follow the manufacturer’s fitting instructions.

Please note that this is a mains-powered air-conditioning system. Running it from batteries would require a suitably designed inverter, battery bank and charging system capable of supporting the unit’s electrical demand.

The WAECO WAC 2200 with Air Distribution Box is a practical roof-mounted cooling solution for leisure vehicle owners looking for strong cooling performance, quiet operation and straightforward remote control in a compact, aerodynamic package.
