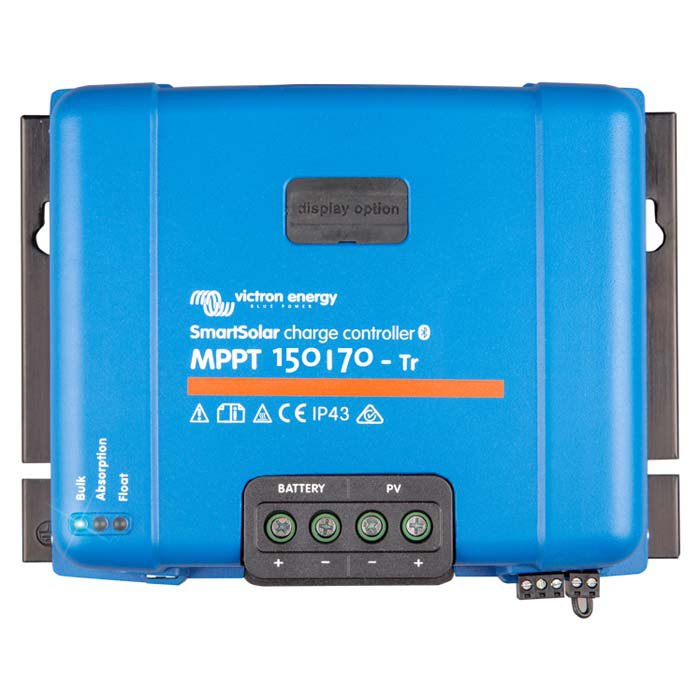

Victron SmartSolar MPPT 150/70-Tr

The Victron SmartSolar MPPT 150/70-Tr (SCC115070211) is not just a solar charger. It's a powerhouse that harnesses energy from your solar panels and expertly stores it in your batteries. Using cutting-edge technology, the SmartSolar charge controller maximises energy harvest, steering it intelligently to achieve a full charge at unprecedented speeds. Making it ideal for your off-grid, marine and campervan solar charging needs.

Key Benefits of the SmartSolar MPPT 150/70-Tr:

• Ultra-Fast Maximum Power Point Tracking (MPPT): Harnesses every available watt by continuously monitoring solar panel voltage and current output. This ensures up to 30% greater energy efficiency than traditional controllers, especially in challenging conditions like partial cloud cover.

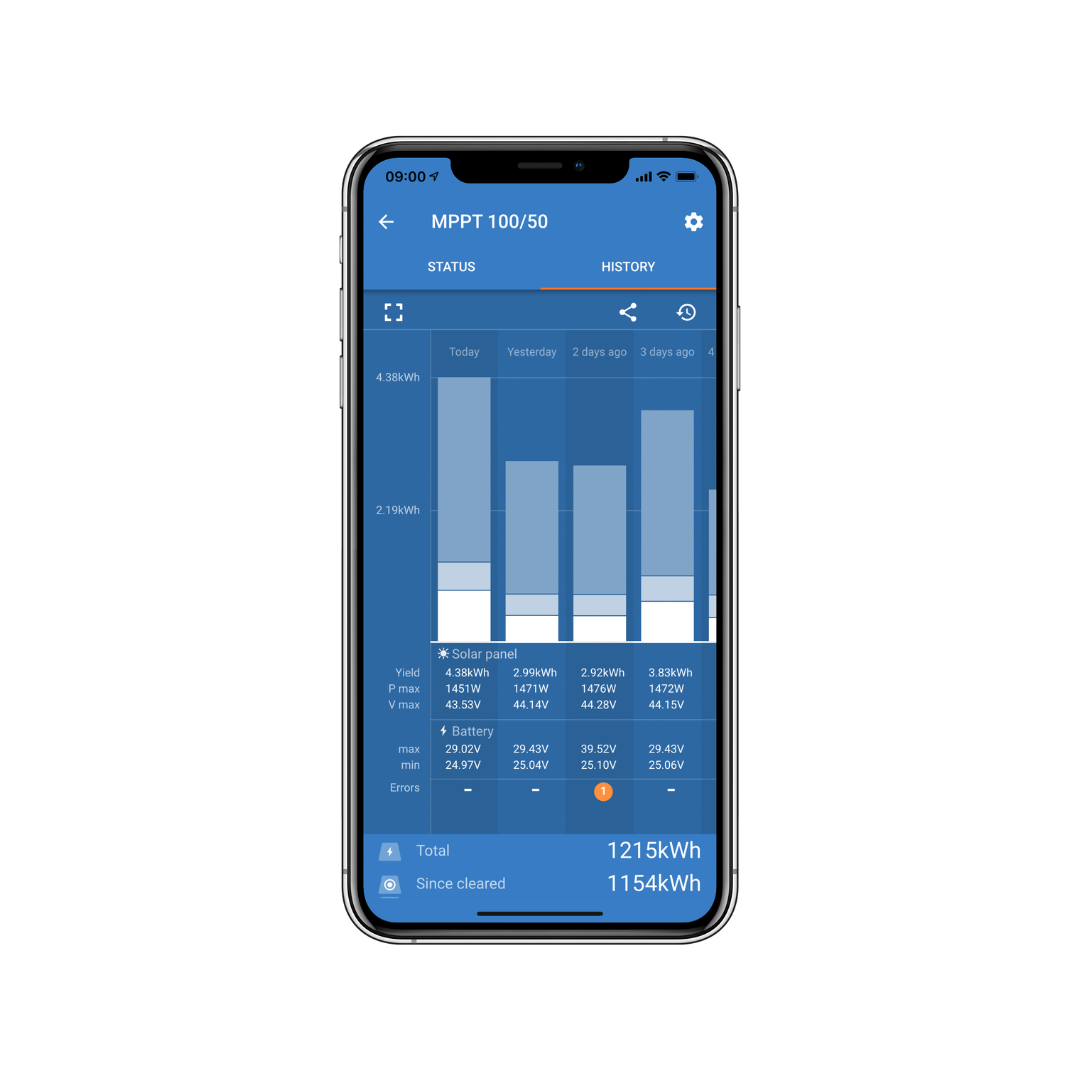

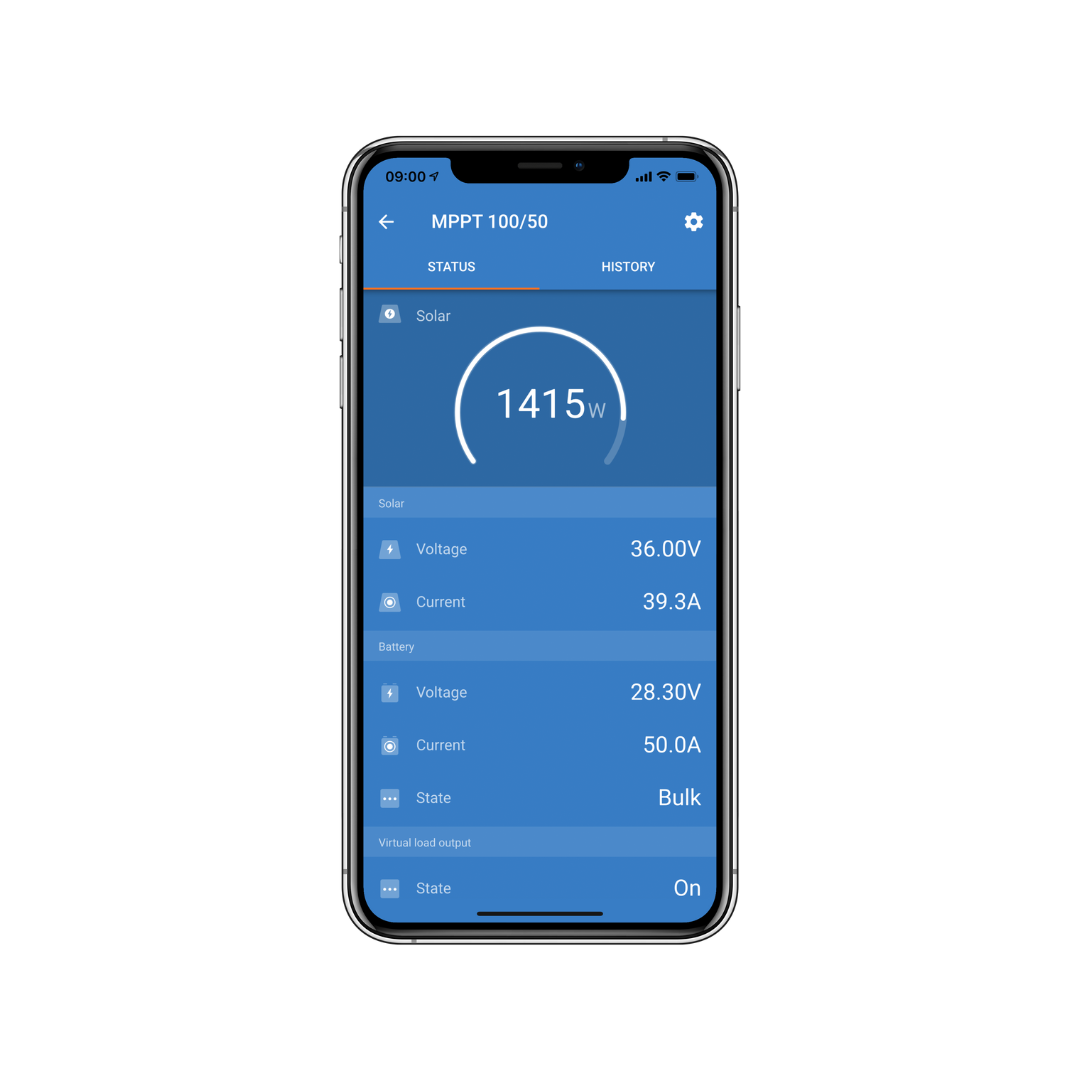

• Remote Monitoring and Control: Effortlessly take command of your energy system by seamlessly pairing with your smartphone or device via built-in Bluetooth. Real-time monitoring, settings adjustment, and complete control are possible, even when connected to the internet through the Victron Remote Management Portal (VRM).
• Optional SmartSolar Pluggable Display: Enhance monitoring capabilities with instant insights into the Victron SmartSolar MPPT 150/70-Tr charger and battery storage status. Real-time monitoring and easy setup are at your fingertips with a simple plug into the face of your MPPT charger.
• Advanced Features for Optimal Performance: Achieve an exceptional conversion efficiency exceeding 98%, eliminating the need for a fan. The flexible loading algorithm and eight pre-programmed charging algorithms offer versatility tailored to unique requirements. Comprehensive electronic protection safeguards against various potential issues.
• Integrated Connectivity: Seamlessly connect, monitor, and update your controller with integrated Bluetooth Smart, eliminating the need for additional accessories. Utilise VE.Direct for wired connections to a Colour Control, Venus GX, PC, or other devices. Additional features like remote on/off and a programmable relay enhance adaptability and functionality.

These key benefits make the Victron SmartSolar MPPT 150/70-Tr (SCC115070211) a reliable, versatile, and powerful solar charge controller. It provides unparalleled control over your solar energy system and ensures maximum efficiency in energy harvesting.

Victron SmartSolar MPPT 150/70-Tr User Manual

For a complete guide on installing, configuring, and operating your Victron SmartSolar MPPT 150/70-Tr charge controller, refer to the official user manual. This comprehensive resource provides all the necessary information to ensure you maximise the performance of your SmartSolar 150/70 model, including:

• Step-by-step installation instructions tailored to the SmartSolar MPPT 150/70
• Bluetooth setup for wireless monitoring and control via mobile devices
• Detailed configuration options to fine-tune your solar power system
• Troubleshooting tips and safety guidelines to ensure smooth operation
• Maintenance recommendations to keep your system efficient and long-lasting

Whether you’re new to solar power systems or a seasoned installer, this manual is crucial for getting the best out of your Victron SmartSolar MPPT 150/70-Tr.

Click here to view the user manual.

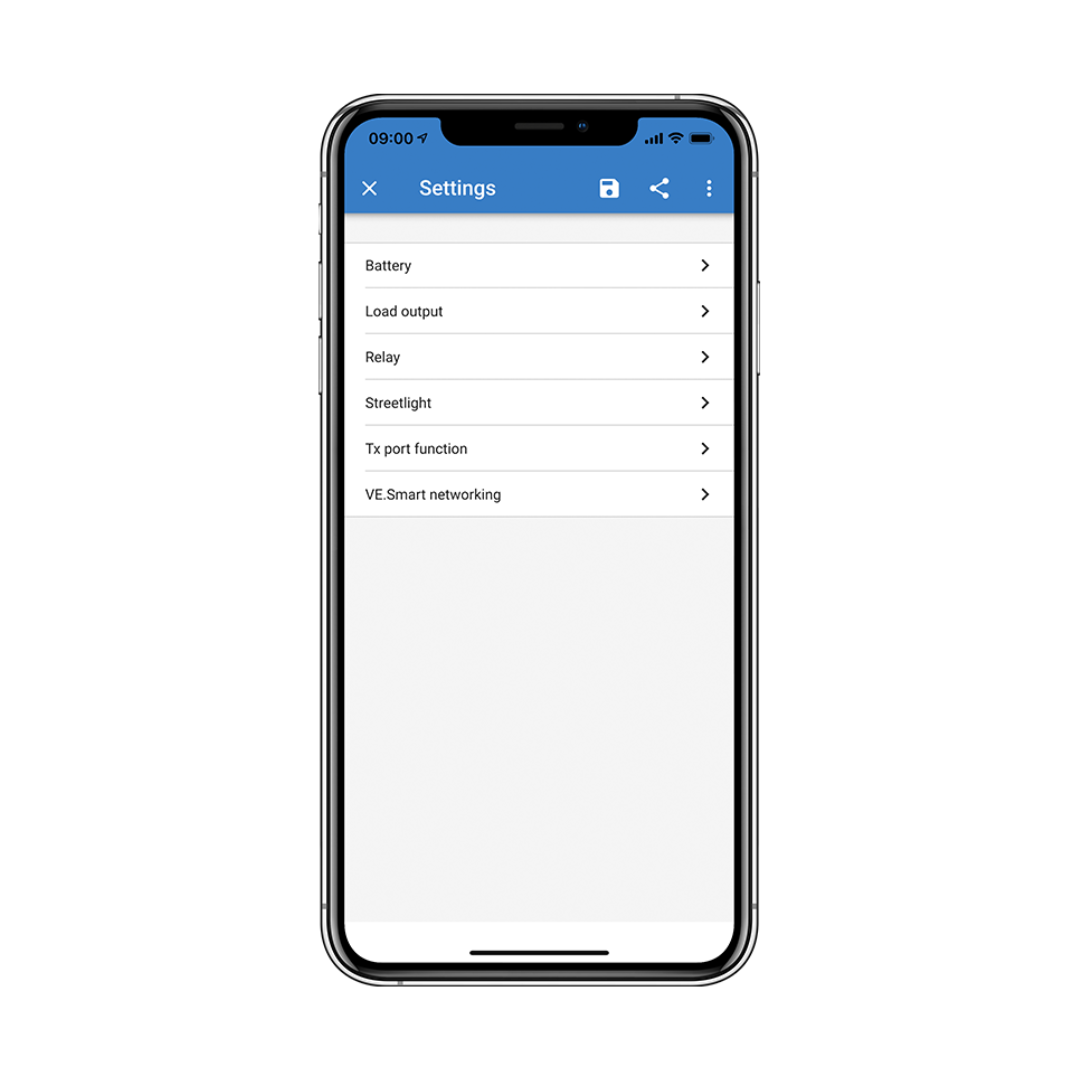

Changing SmartSolar Charge Controller Settings via Bluetooth

Adjusting the settings on your Victron SmartSolar MPPT 150/70-Tr is quick and easy with its built-in Bluetooth connectivity. By using the VictronConnect app, you can wirelessly configure and monitor your MPPT controller directly from your smartphone or tablet. This enables you to adjust settings such as battery charge profiles, monitor system performance, and even update the firmware, all without needing physical connections.

Here’s how to get started:

1. Download the VictronConnect app – Available for both iOS and Android.
2. Connect via Bluetooth – Enable Bluetooth on your device and pair it with your SmartSolar MPPT 150/70-Tr controller.
3. Modify settings – Use the app’s intuitive interface to adjust charging voltage, current limits, or load output settings to suit your solar setup.
4. Save and monitor – Apply the changes and monitor your system's performance in real-time.

For more detailed instructions on changing settings via Bluetooth, please refer to the user manual.

Victron SmartSolar MPPT 150/70-Tr Datasheet

For detailed technical specifications of the Victron SmartSolar MPPT 150/70-Tr, refer to the official datasheet. This document provides critical information such as:

• Maximum input voltage and current ratings
• Battery compatibility and optimised charging profiles
• Bluetooth capabilities for wireless monitoring and control
• Advanced solar energy harvesting technology for increased efficiency
• Protection features including over-temperature, short circuit, and reverse polarity protection

The datasheet is essential for selecting the right Victron SmartSolar MPPT 150/70-Tr for your solar system and optimising its performance.

Click here to view the datasheet.

Need assistance or have questions about this product? We’re here to help! Please feel free to reach out to us via WhatsApp or email. You can find all the necessary contact information on our Contact Page. We’re always happy to assist you!
