Victron Lynx Power In

Victron Lynx Power In

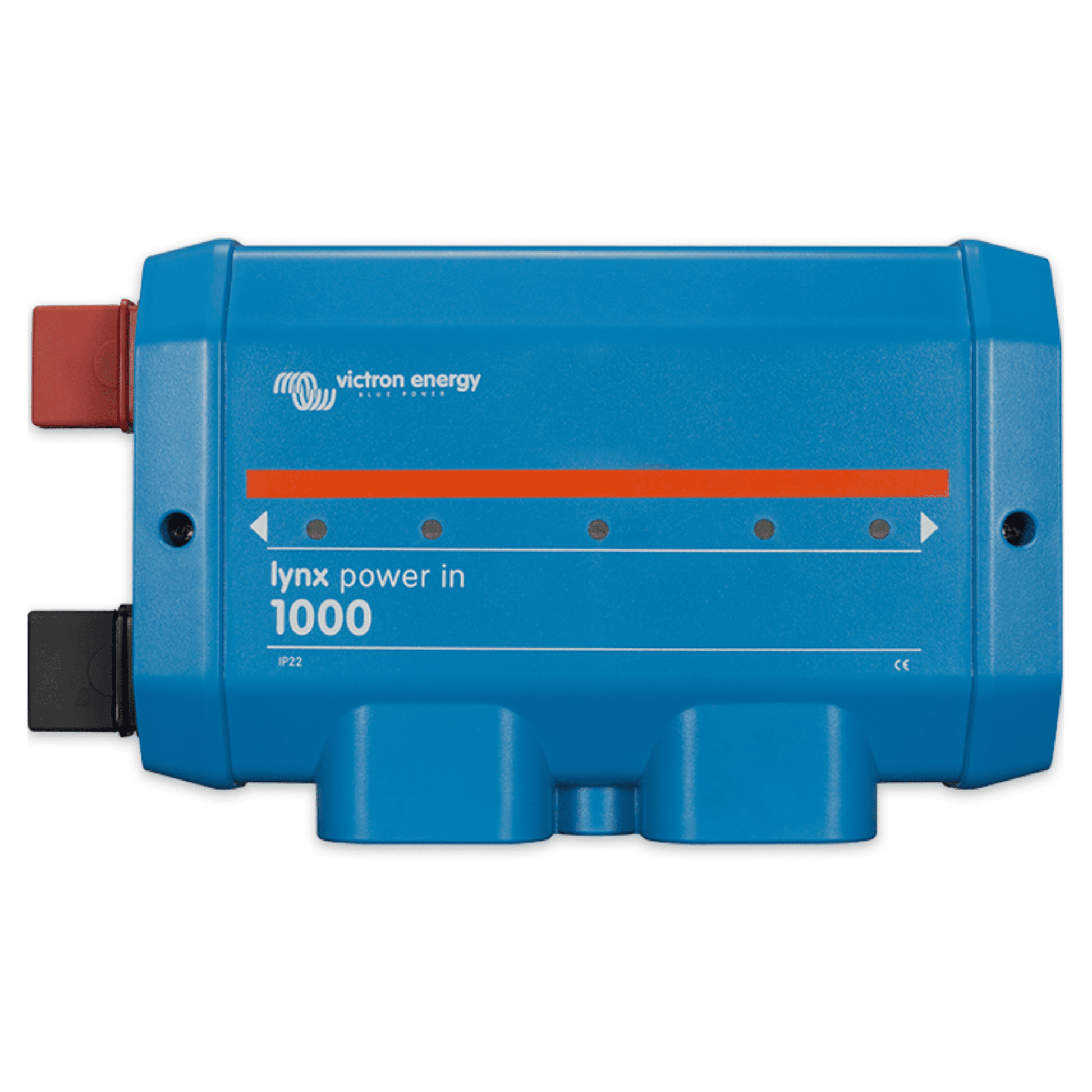

Introducing the Victron Lynx Power In Victron - LYN020102000, a pivotal component in the modular Lynx DC distribution system. Tailored to connect batteries seamlessly, this modular DC busbar boasts versatile features for enhanced power management.

Key Benefits of the Victron Lynx Power In:

• Modular Busbar System: This Victron Lynx distributor is a modular DC busbar. It is designed for connecting batteries to the Lynx DC distribution system. In addition with a negative and positive DC busbar featuring M8 bolts, it ensures secure connections for up to four batteries or DC equipment.
• External Fuse Compatibility: Ideal for systems with multiple parallel strings. The Lynx Power In module allows connection via an external fuse. This is particularly crucial for battery banks with high short circuit potential. We recommend the use of an external fuse system with a suitable fault current interrupting rating, such as NH HRC.
• Versatile Cable Entry: The module accommodates cables up to 22 mm in diameter. This is through the bottom entry guides and offers unlimited connectivity through two-sided connections. As a result, provides flexibility in cable management.
• Integrated Lynx Distribution System: Part of a comprehensive victron lynx distributor system, the Lynx Power In module seamlessly integrates with other Lynx components, including Lynx Distributor, Shunt Lynx VE.Can, and Lynx Smart BMS. This integration creates a holistic system that incorporates DC connections, distribution, fusing, battery monitoring, and lithium battery management.

Lynx Module Interconnections:

Lynx modules can be interconnected on the left and right sides using M8 holes and screws. Additionally, if used alone or as the first/last module in a row, direct connections for batteries, loads, or chargers are possible, although additional insulation and fuses are recommended for optimal safety.

Upgrade your power management system with the Victron Lynx Power In Victron - LYN020102000, where modularity meets efficiency for a seamless and reliable energy solution. Order now and experience the future of power distribution.
