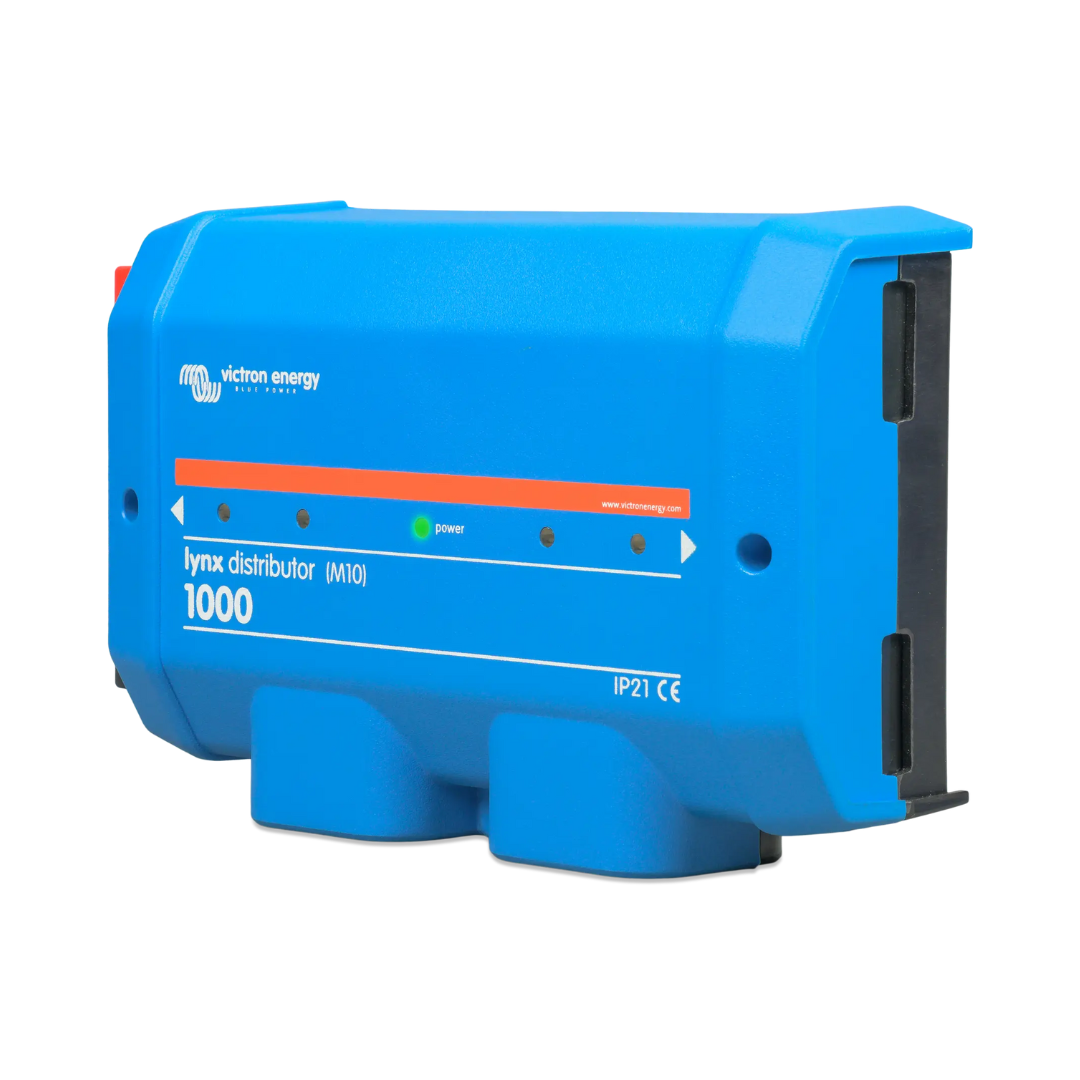

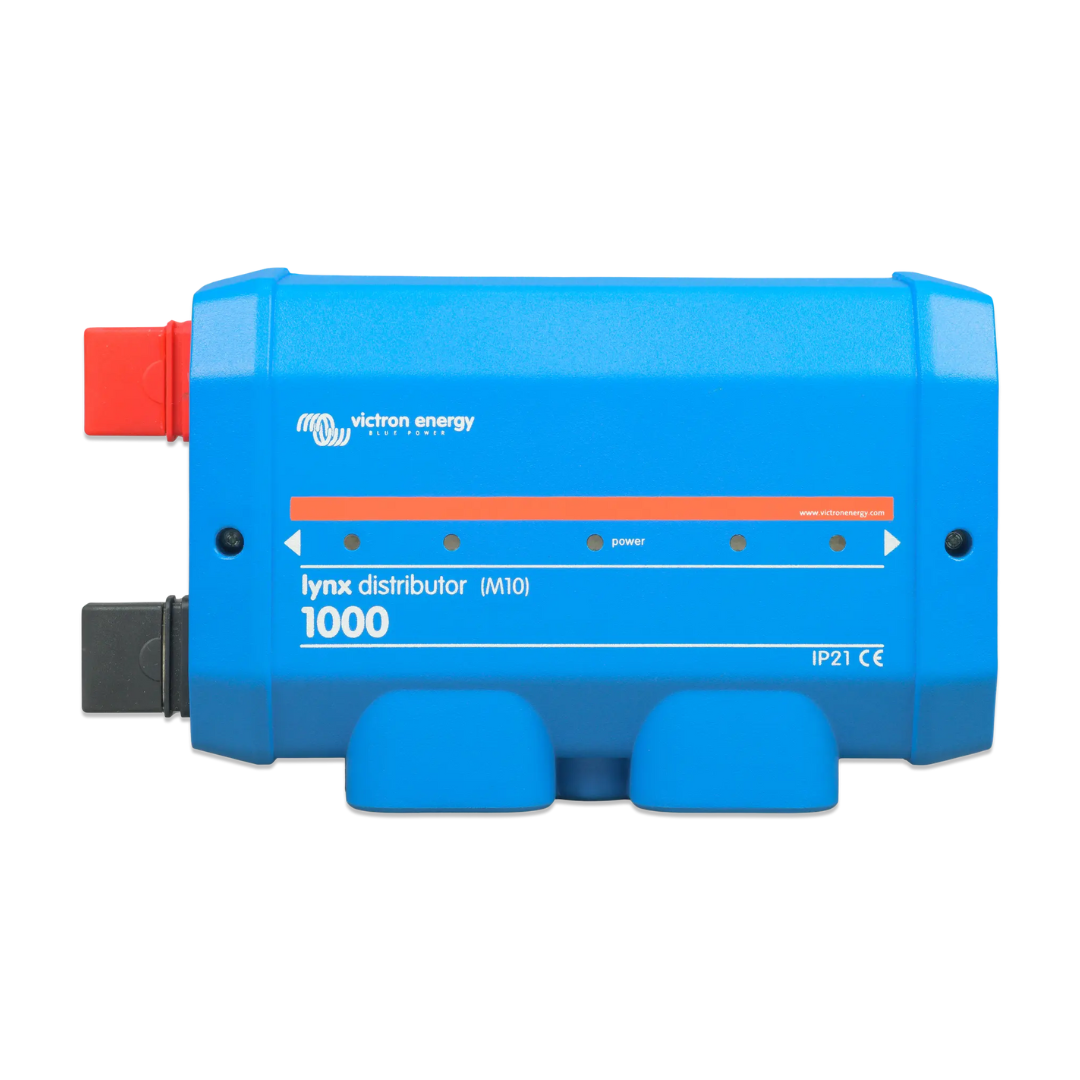

Victron Lynx Distributor Busbar M10 (LYN060102010)

Create a safe, organised and professional DC power system with the Victron Lynx Distributor M10. Designed for high-current battery installations, it combines positive and negative busbars with four individually fused DC connection points inside a compact protective enclosure.

Each circuit can be used to connect major system components such as an inverter/charger, solar charge controller, DC distribution panel or battery charger. Individual MEGA fuse positions help protect the connected cables and equipment, while built-in LED indicators make identifying a blown fuse quick and straightforward when the monitoring electronics are powered by compatible Lynx equipment.

Rated for up to 1,000A continuously, the Lynx Distributor supports 12V, 24V and 48V systems. Its M10 busbar connections accommodate high-current cabling, while the modular design allows it to connect directly to other components in the Victron Lynx distribution system.

When connected to a Lynx Smart BMS, individual fuse status can be communicated to compatible monitoring equipment. The included RJ10 cable carries power and data between supported Lynx modules, creating a clean and integrated installation.

Ideal for campervans, motorhomes, boats and off-grid energy systems, the Lynx Distributor provides a tidy alternative to separate busbars, fuse holders and exposed high-current connections.

Key features

• Combined positive and negative DC busbars
• Four individually fused DC connections
• Accepts MEGA-format fuses
• Built-in fuse-status LED indicators
• 1,000A continuous current rating
• Suitable for 12V, 24V and 48V systems
• Heavy-duty M10 busbar connections

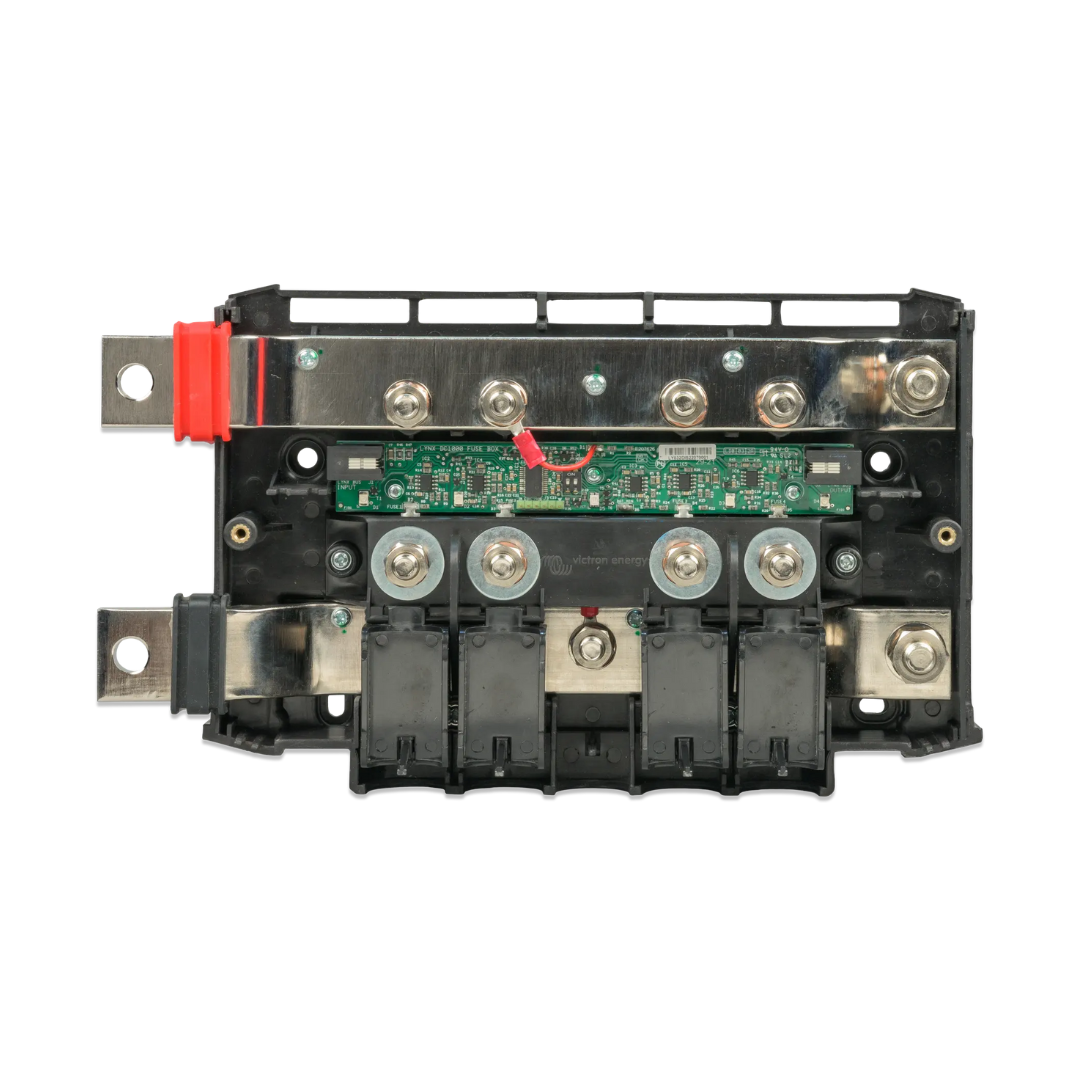

• Tinned-copper internal busbars
• Integrates with the Victron Lynx modular system
• Fuse-status communication with a Lynx Smart BMS
• Supplied with a 40cm RJ10 interconnection cable
• Protective ABS enclosure
• Suitable for campervan, marine and off-grid installations

Technical specifications

Circuit fuses must be selected to suit the connected cables and equipment. The M10 designation refers to the main busbar connection size; the four fuse positions use M8 fixings. LED operation requires power from a compatible Lynx Shunt VE.Can or Lynx Smart BMS, while individual fuse-status data communication requires a Lynx Smart BMS. Specifications verified against the official Victron Lynx Distributor manual.
