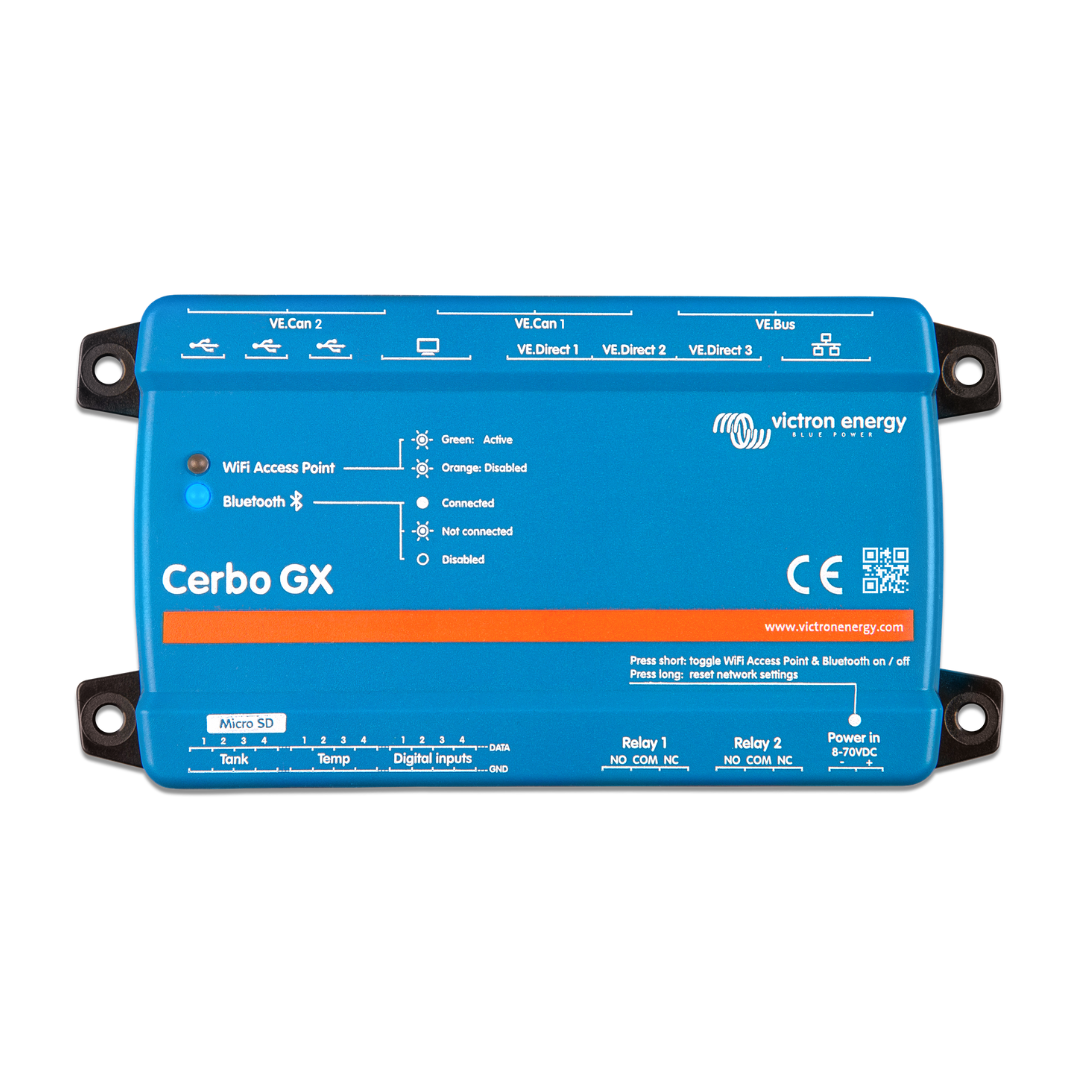

Victron Energy Cerbo GX MK2 (BPP900450110)

Bring your complete Victron electrical system together with the Cerbo GX MK2. Acting as the central communication hub for compatible inverters, battery monitors, solar charge controllers, chargers and sensors, it provides one clear overview of your power system.

Designed for campervans, motorhomes, boats and off-grid installations, the Cerbo GX MK2 collects live information including battery state of charge, solar yield, AC power, DC consumption and equipment status. It can also monitor compatible tank-level senders, temperature sensors and digital inputs.

Connect the Cerbo GX MK2 to the internet using built-in Wi-Fi or Ethernet to access the free Victron Remote Management portal. VRM lets you check live and historical data, receive alarms and access supported controls remotely using a phone, tablet or computer.

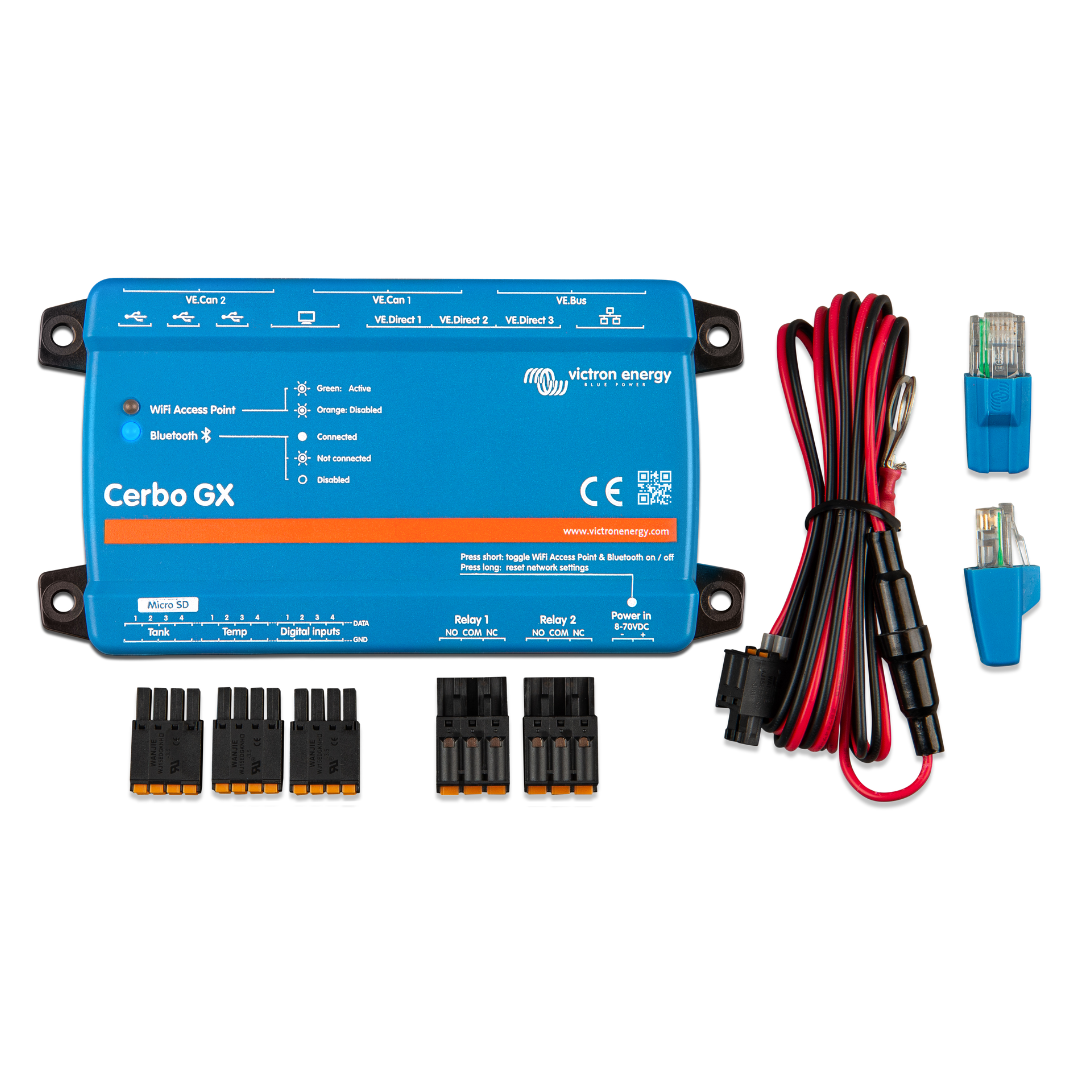

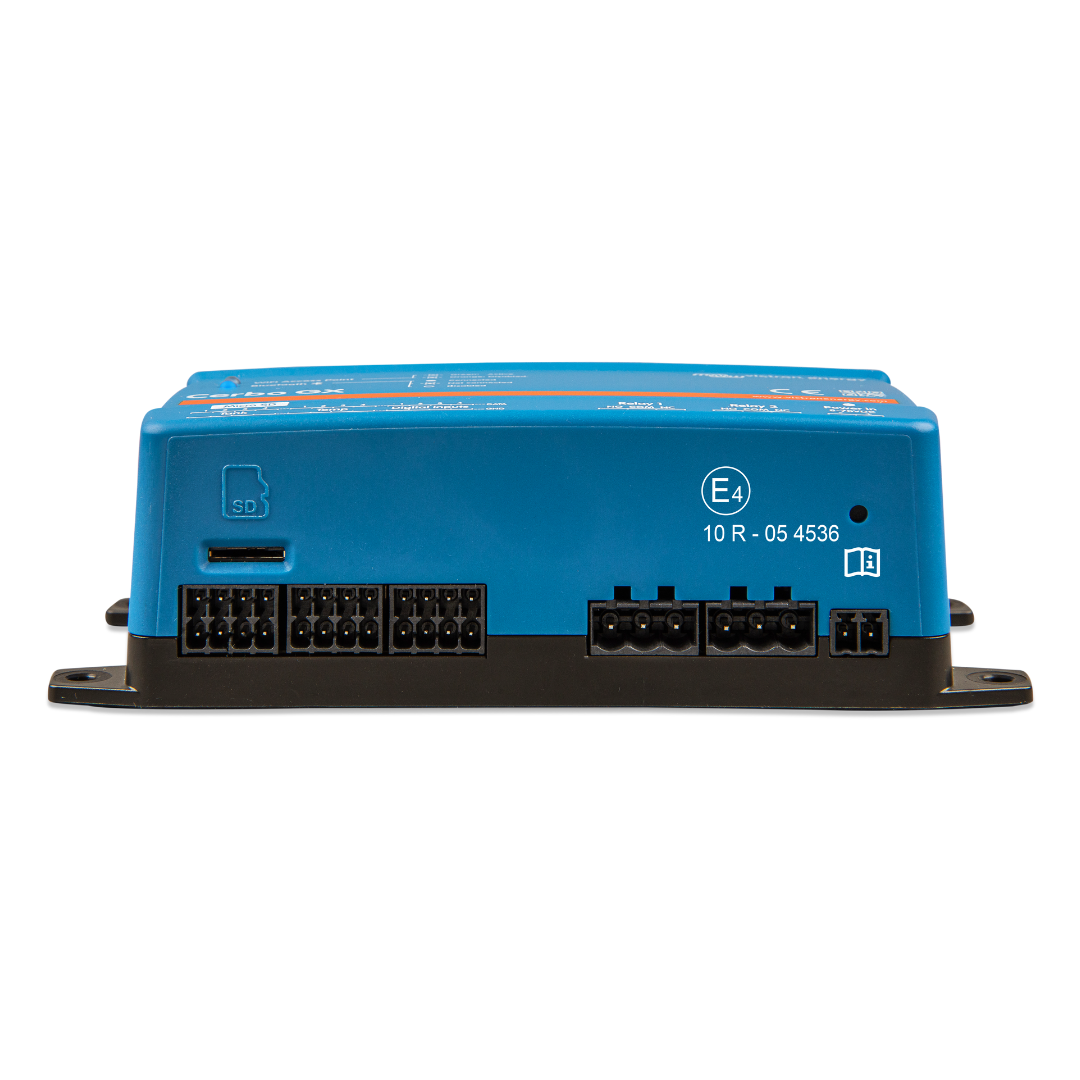

The MK2 version provides three isolated VE.Direct ports, two parallel VE.Bus connections and two VE.Can interfaces—one isolated and one non-isolated. Four digital inputs support pulse counting, while two programmable relays can be used for functions such as generator start/stop, temperature control, alarms or manual switching.

For a dedicated local display, the Cerbo GX MK2 can be paired with an optional GX Touch 50 or GX Touch 70. It can also be accessed locally through Remote Console using a phone, tablet or computer.

Key features

• Central monitoring and control for compatible Victron equipment
• Live battery, solar, inverter and consumption data
• Remote monitoring through the free Victron VRM portal
• Built-in Wi-Fi and Ethernet connectivity
• Bluetooth-assisted initial network setup
• Three isolated VE.Direct ports
• Two parallel VE.Bus connections
• One isolated and one non-isolated VE.Can interface
• Four resistive tank-level inputs
• Four temperature-sensor inputs
• Four digital inputs with pulse counting
• Two programmable relays
• Compatible with optional GX Touch displays
• Generator auto start/stop functionality
• Suitable for campervan, marine and off-grid systems

Technical specifications

This listing is for the standalone Cerbo GX MK2. A GX Touch display is not included and must be purchased separately if required. Appropriate VE.Direct, VE.Bus, VE.Can and sensor cables may also be required for individual devices. Bluetooth is primarily intended to assist with initial network configuration rather than connect directly to other Victron Smart products. Specifications verified against the official Victron Cerbo GX manual.
