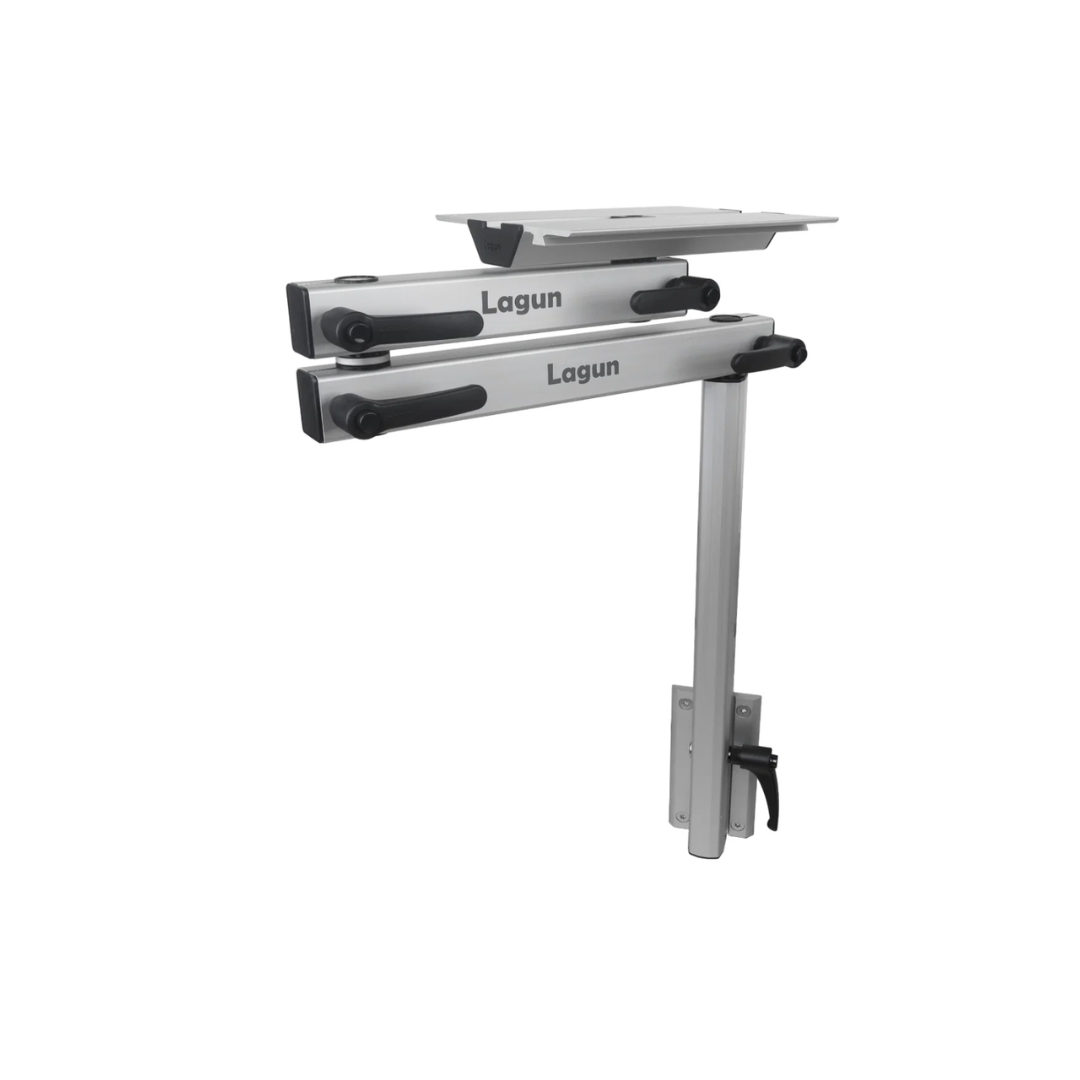

Lagun Complete Double Arm Frame & Mounting Plate

The Lagun Double Arm Table Leg System is a flexible, space-saving table solution for campervans, motorhomes, caravans and boats. Its adjustable double-arm design makes it easy to position your table exactly where you need it.

Tabletop not included. The system supports tabletops up to 850mm x 550mm, allowing you to choose a tabletop to suit your interior.

Lagun Double Arm Table Leg System

Unlike a conventional fixed table leg, the Lagun system mounts to a wall or suitable piece of furniture. This keeps the floor area beneath the table clear and makes better use of limited interior space.

The 500mm vertical leg works with a 400mm table arm and an additional 300mm extension arm. This double-arm arrangement provides greater flexibility when positioning the tabletop. The tabletop and extension arms can rotate through 360 degrees.

This makes the Lagun double arm particularly useful in compact campervan layouts. The table can be moved closer when eating or working, then swung away when you need more floor space.

Adjustment is simple using the integrated handles, with no tools required to reposition the table. The frame can also be quickly dismantled for storage when the table isn't required.

Made from seawater-resistant natural anodised aluminium, the Lagun table leg is suitable for both leisure vehicle and marine installations. Glass-fibre reinforced plastic arm sleeves provide additional stability.

Key Features

• Double-arm adjustable table system
• 500mm vertical table leg
• 400mm main arm with 300mm extension arm
• 360° rotating tabletop and extension arms
• Tool-free position adjustment
• Recommended maximum load of 10kg
• Supports tabletops up to 850mm x 550mm
• Natural anodised aluminium construction
• Seawater-resistant finish
• Mounts to suitable furniture or walls
• Removable for convenient storage
• Ideal for campervans, motorhomes, caravans and boats

Specifications

• Brand: Lagun
• System: Double Arm Table Leg System
• Leg Length: 500mm
• Main Arm Length: 400mm
• Extension Arm Length: 300mm
• Maximum Tabletop Size: 850 x 550mm
• Recommended Maximum Load: 10kg
• Material: Anodised aluminium
• Finish: Natural anodised
• Weight: Approx. 3.7kg
• Adjustment: 360° rotation

What's Included

• Lagun 500mm table leg
• 400mm table arm
• 300mm extension arm
• Mounting plate
• Mounting components and alignment wedges

Tabletop is not included.
