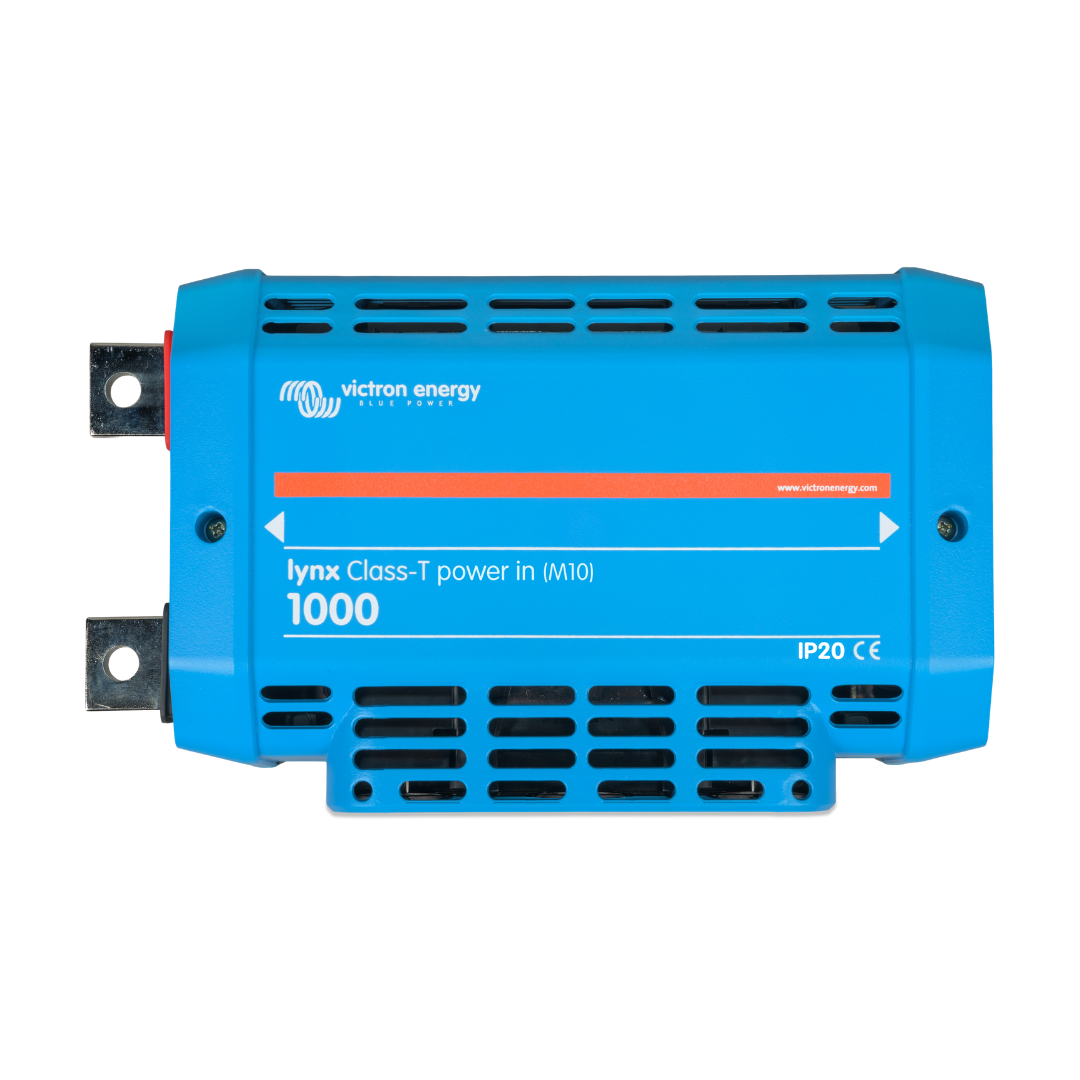

Victron Lynx Class-T Power In (M10) - Product Code: LYN060404010

The Victron Lynx Class-T Power In M10 is a high-current DC busbar and fuse module designed for safe, professional battery connections within the Victron Lynx distribution system. Built for lithium battery installations, it allows you to connect and fuse up to two battery strings using Class-T fuses, making it ideal for campervans, motorhomes, marine systems, off-grid power setups and commercial vehicle conversions.

Designed as part of the modular Victron Lynx system, the Class-T Power In integrates neatly with other M10 Lynx components, including the Lynx Distributor, Lynx Shunt VE.Can and Lynx Smart BMS. It includes both positive and negative busbars, plus a dedicated DC system ground connection, helping create a clean, reliable and scalable power distribution setup.

The unit accepts two Class-T fuses, with compatible fuse ratings including 225A, 250A, 350A and 400A. Fuses are sold separately, allowing you to select the correct protection level for your battery bank and system design. For installations with three or more lithium battery strings, multiple Lynx Class-T Power In modules can be used.

Key Features

• Genuine Victron Energy Lynx Class-T Power In
• Product code: LYN060404010
• M10 version for compatible Victron Lynx systems
• Connects and fuses up to two lithium battery strings
• Accepts two Class-T fuses
• Suitable fuse ratings: 225A, 250A, 350A and 400A

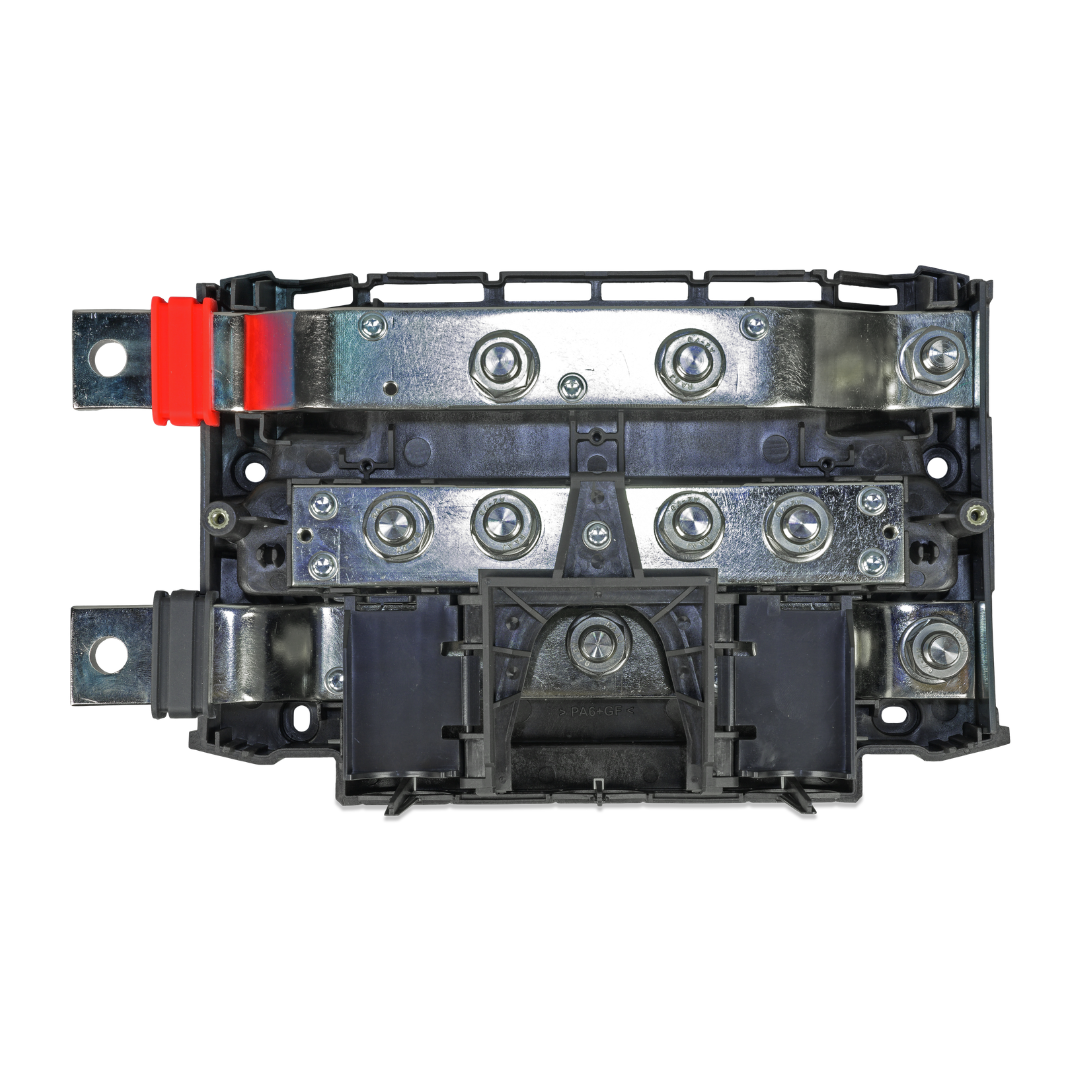

• Positive and negative busbars built in
• Dedicated DC system ground connection
• Integrates with other M10 Victron Lynx modules
• Ideal for high-current lithium battery systems
• Suitable for 12V, 24V and 48V DC installations
• Fuses sold separately

Technical Specifications

• Manufacturer: Victron Energy
• Product code: LYN060404010
• Model: Lynx Class-T Power In M10
• Voltage range: 9–60V DC
• Current rating: 1000A DC continuous
• Busbar connections: M10
• Fuse connections: 3/8"
• Fuse type: Class-T
• Number of fuse positions: 2
• Enclosure material: ABS
• Busbar material: Tinned copper
• Dimensions: 279mm x 169mm x 97mm
• Weight: Approx. 2.1kg
• Operating temperature: -40°C to +60°C

Ideal For

• Lithium battery bank installations
• Campervan and motorhome electrical systems
• Marine and boat power systems
• Off-grid solar setups
• High-current inverter systems
• Victron Lynx DC distribution builds
• 12V, 24V and 48V battery systems

The Victron Lynx Class-T Power In M10 is a robust and tidy way to bring fused lithium battery connections into a Victron Lynx system, offering high-current capability, modular expandability and professional-grade DC distribution for demanding leisure and off-grid applications.
